100m 120m 150 meter 180m 350m depth perforadora de pozos borehole drill rig machine water drilling well machine equipment
Product Description
Pneumatic water well borehole drilling rig machine
pneumatic dth drilling rig mainly drilling rock must connect with air compressor . it has fast drilling speed . pneumatic dth drilling rig can drill 20-40m per hour . high drilling effective .the engine it is 63kw ,more powerful .
pneumatic water borehole drilling rig it has 4 high hydraulic leg which can lifting 1.6m height can easy loading on the truck .
air water well drilling rig machine is rubber crawler . hydraulic pump and valve both use import brand .
Pneumatic water well borehole drilling rig tower height is 3m .
18ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch .
Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements .
It can add mud pump and foam pump .
Pneumatic water well borehole drilling rig tower height is 3m .
18ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch .
Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements .
It can add mud pump and foam pump .
We have enough experience for South America ,Southeast Asia,North America ,Africa etc .
Technical Parameter
|
Model
|
HWY160
|
||||
|
Drilling diameter
|
Φ130-Φ203mm
|
||||
|
Drilling depth
|
150m
|
||||
|
Walking speed
|
2.5KM/h
|
||||
|
Gradeability
|
30°
|
||||
|
Rotation speed
|
65-100r/min
|
||||
|
Swing torque
|
4500N.m
|
||||
|
Maximum lifting force
|
10-15ton
|
||||
|
Maximum rod length
|
2.4m
|
||||
|
Air consumption
|
10-25m3/min
|
||||
|
Working air pressure
|
1.2-3.0mpa
|
||||
|
Drill pipe diameter
|
Φ76-Φ89mm
|
||||
|
Dimensions (L * W * H)
|
2000*1200*1750mm
|
||||
|
Machine weight
|
2600kg
|
||||
Related Product

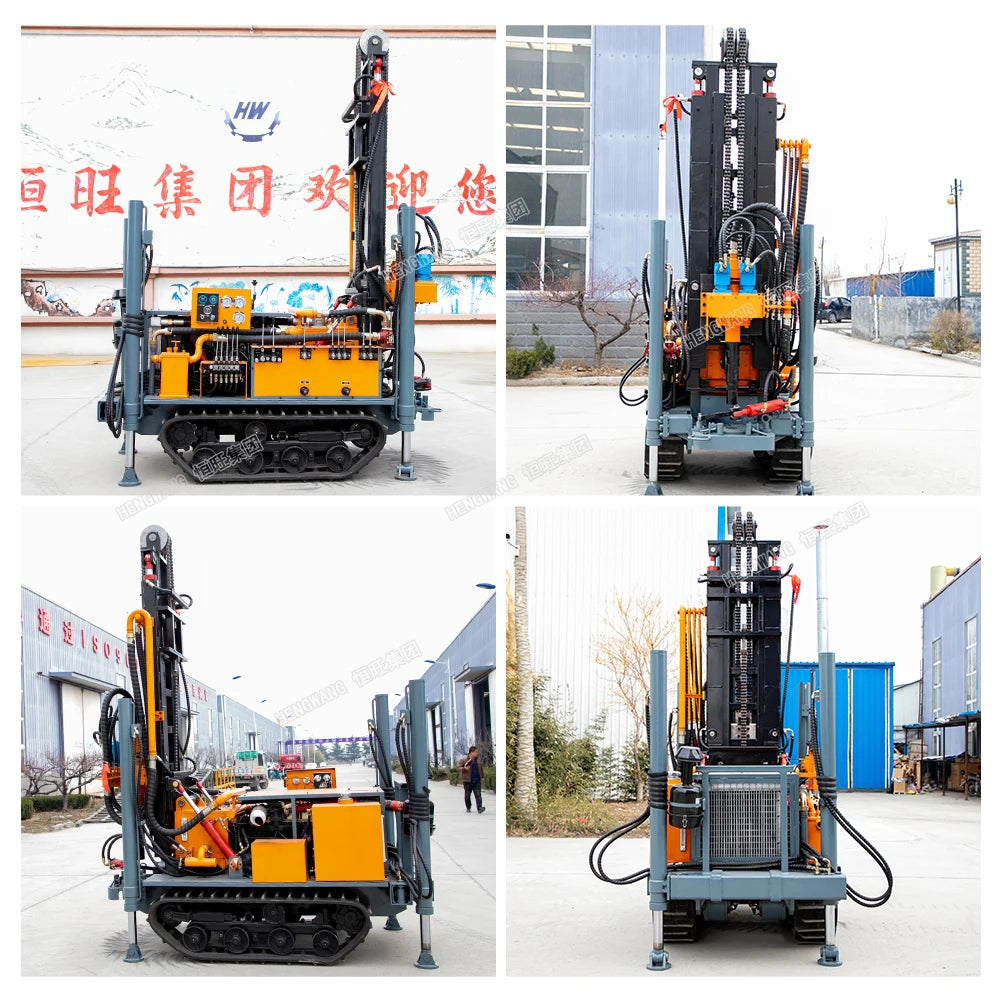

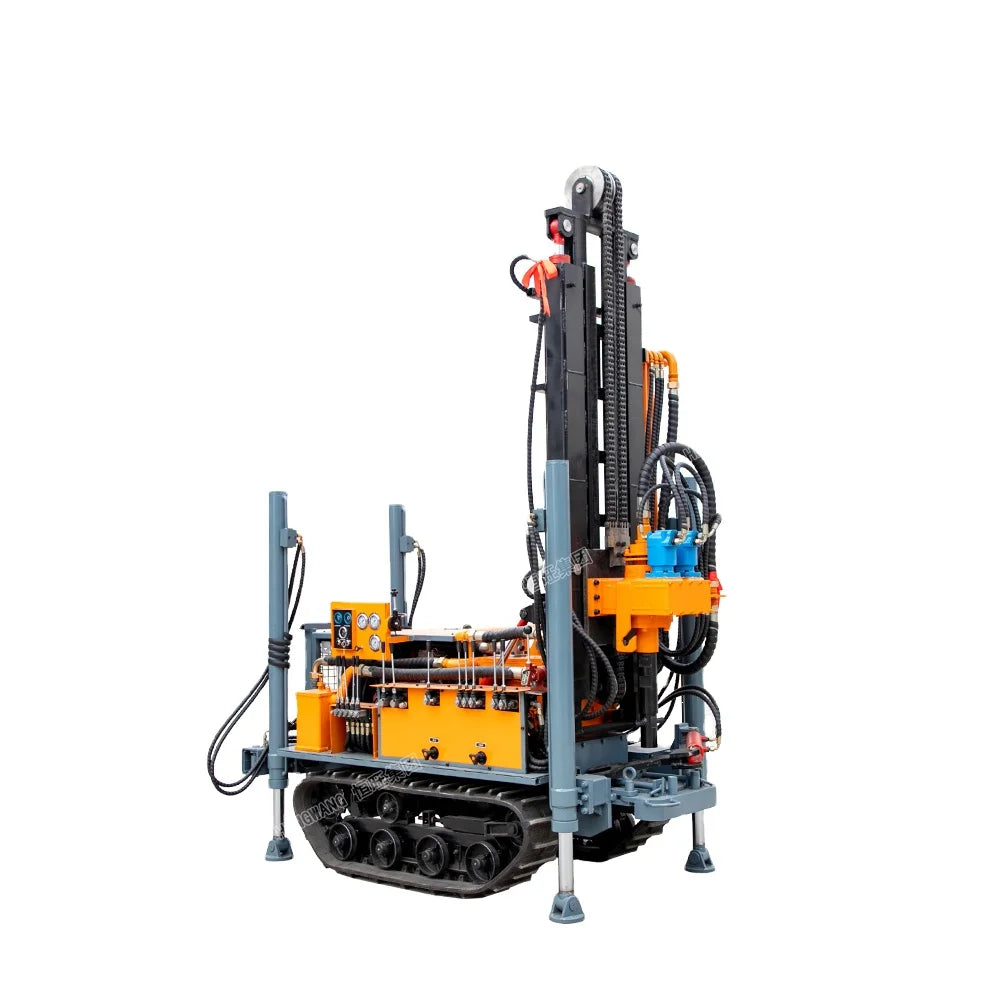

Detailed Images
pneumatic rock drill machine
Advantage :
1.compact design for easy use
1.compact design for easy use
2.160meters drilling and 30m/h drilling speed
3.Track all terrain chassis ,durable and stable .
4.Double hydraulic power head more powerful ,the drill speed faster and drill diameter more big .
5.High power engine and integrated operation.
100m 120m 150 meter 180m 350m depth perforadora de pozos borehole drill rig machine water drilling well machine equipment

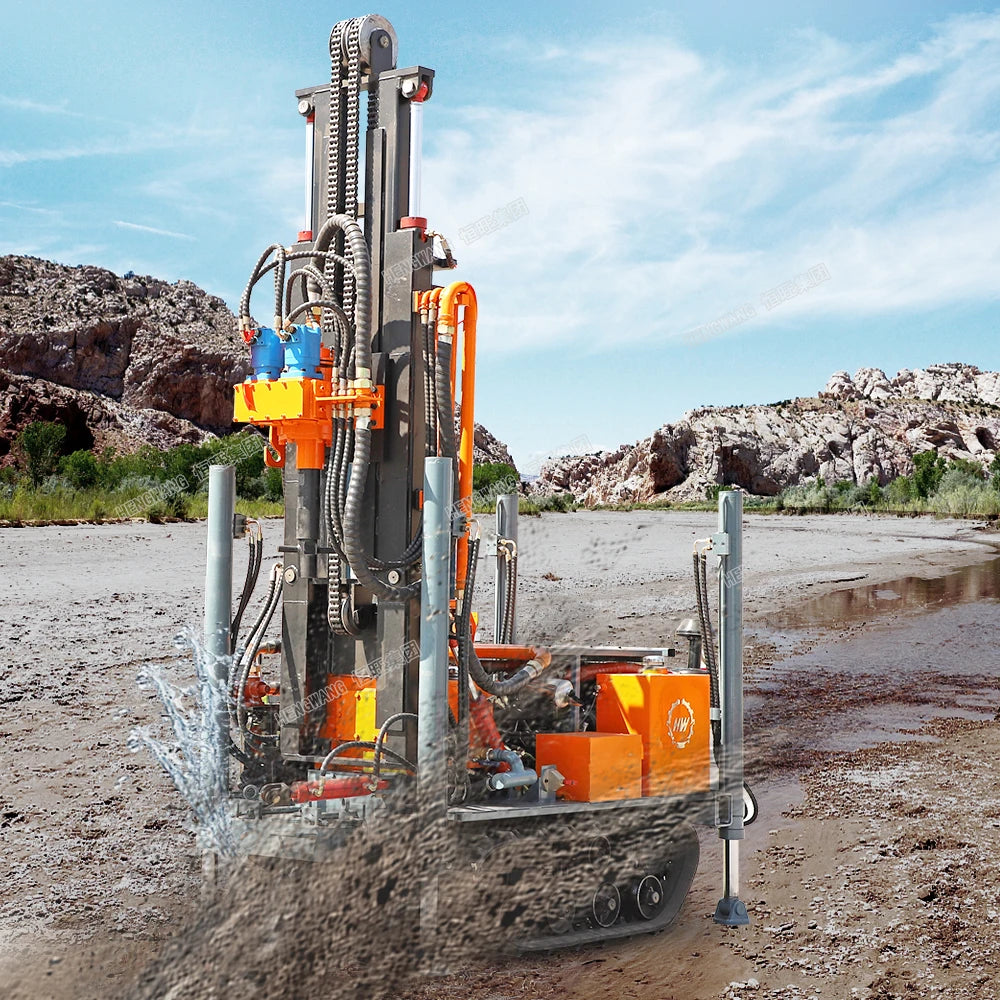

Product Usage
Pneumatic dth air water well drilling rig machine mainly drilling rock . it also can add mud pump to finish mud pump drilling,mainly used in rock mountain and plain area .
Customer Feedback
Packing & Delivery
Pneumatic water well borehole drilling rig machine mainly loading in 20GP container or 40HQ container .
100m 120m 150 meter 180m 350m depth perforadora de pozos borehole drill rig machine water drilling well machine equipment

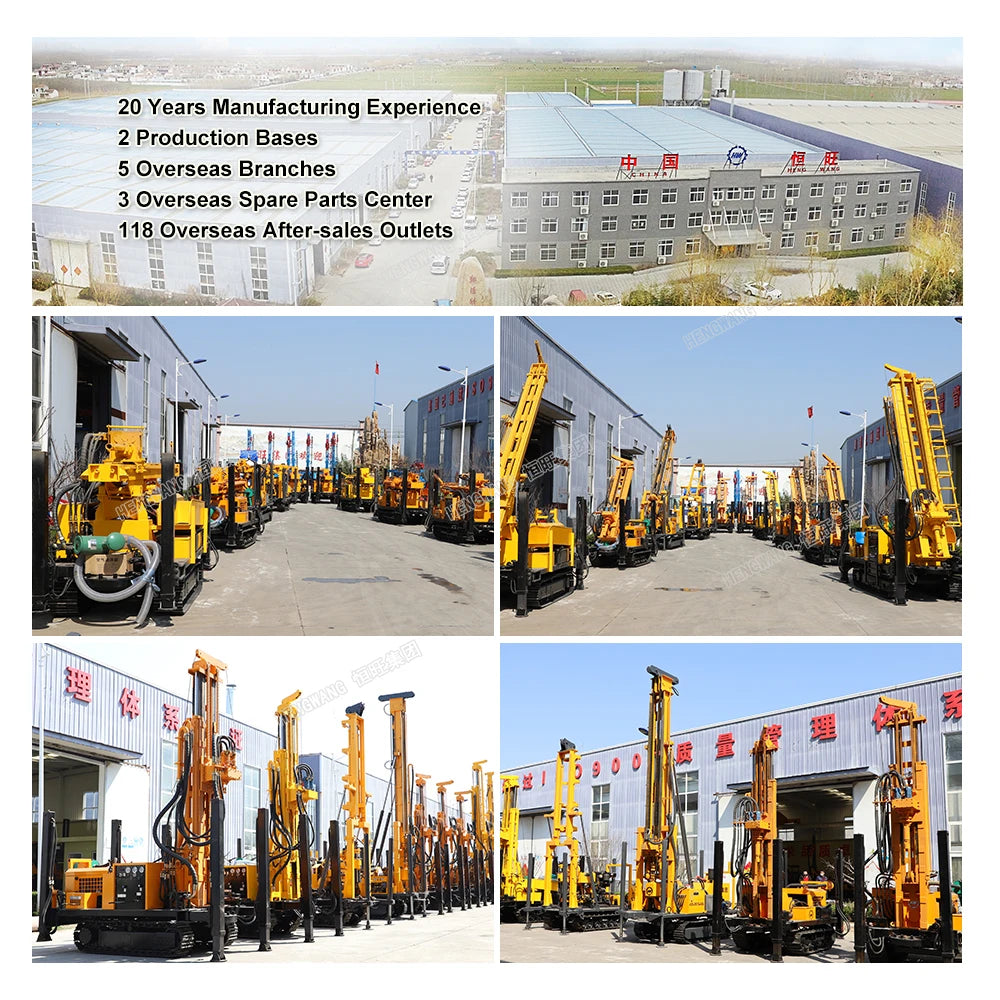

Our Company
