100m 300m 500m 600m drill rig for water well 200m perforadora pozos water borehole drilling machine water well drill rig machine
Product Description
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please
contact us or send us inquiry,then we can give you detail quotation list
The penumatic water well drilling rig adopt super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 400mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 400mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
|
Drilling Machine Parameters
|
||||||||||||
|
Model
|
HQZ-180L
|
HQZ-220L
|
HQZ-260L
|
HQZ-320L
|
HQZ-450L
|
HQZ-500L
|
||||||
|
Overall weight (T)
|
3.5
|
4.2
|
6.4
|
8
|
8.7
|
9.5
|
||||||
|
Dimension (mm )
|
3400*1500*2400
|
3800*1700*2350
|
4100*1900*2600
|
5500*1950*2780
|
5300*2050*2700
|
5350*2100*2700
|
||||||
|
Drilling diameter(mm )
|
130-245
|
130-294
|
140-300
|
140-325
|
130-400
|
140-400
|
||||||
|
Drilling depth(m)
|
150
|
180
|
260
|
300
|
400
|
500
|
||||||
|
One-time advance length of the drill(mm)
|
3000
|
3000
|
3000
|
3000/6000
|
3000/6000
|
3000/6000
|
||||||
|
Working Air Pressure(mpa )
|
1.45 - 2.5
|
1.7-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption
|
15 - 27
|
15 - 27
|
17-35
|
23
|
17-35
|
17-35
|
||||||
|
Main machine power(kw)
|
42 /Yunnei
|
60/ Yunnei
|
85/Yuchai
|
92/Yuchai
|
100/6 cylinder
|
114/6 cylinder
|
||||||
Features:
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating

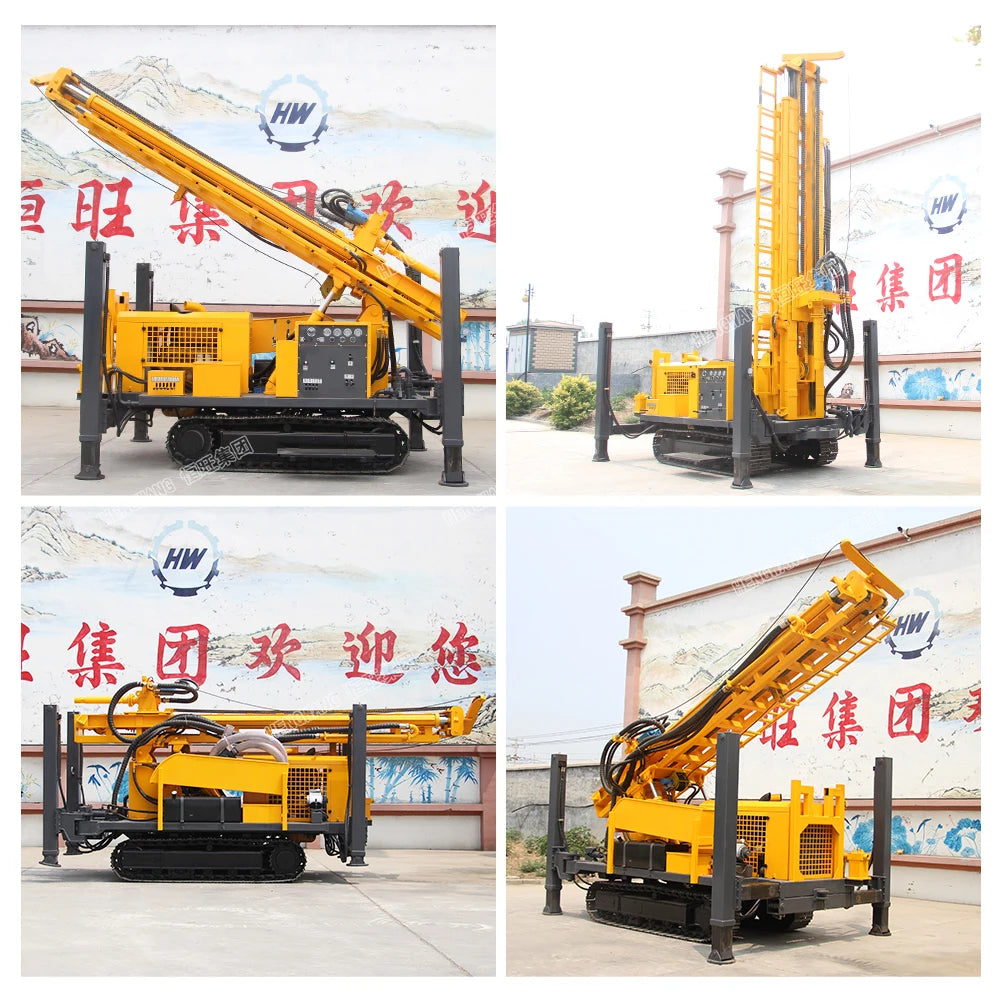

Detailed Images
100m 300m 500m 600m drill rig for water well 200m perforadora pozos water borehole drilling machine water well drill rig machine

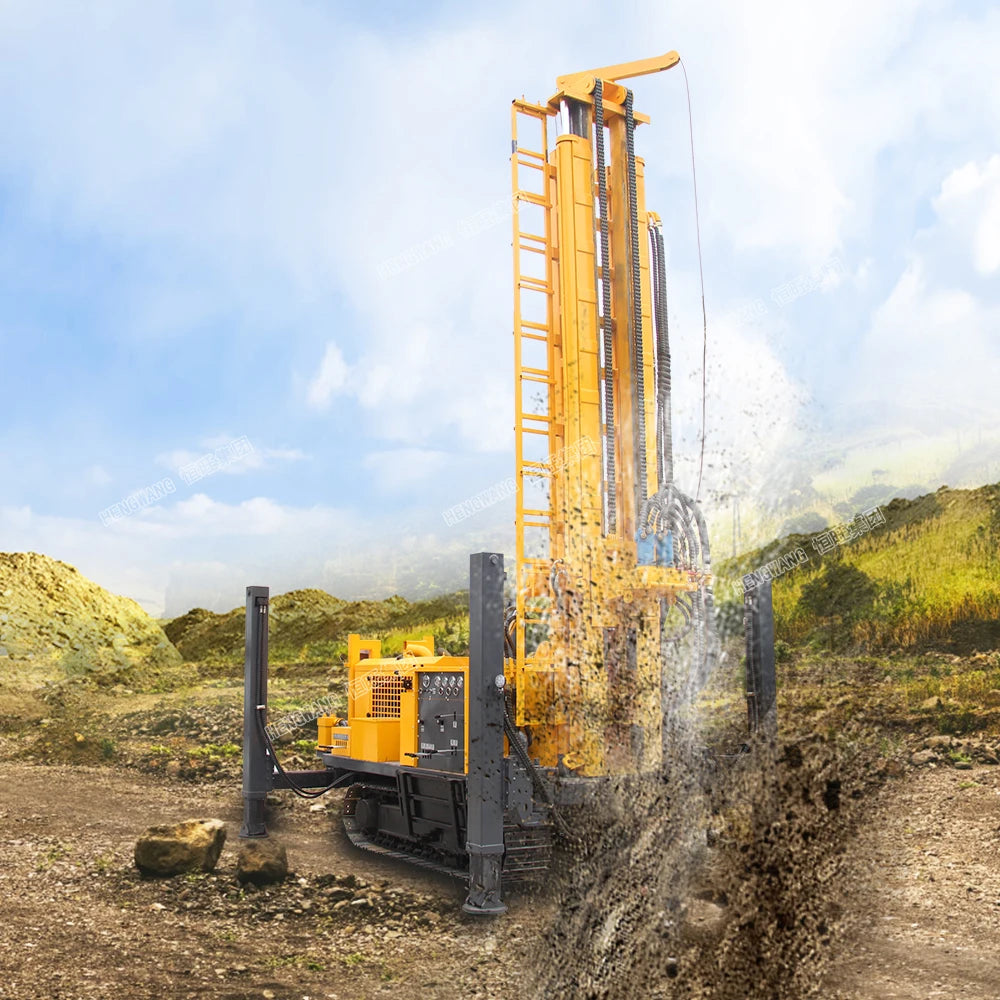

Application
