Multi-Function Walking Tractor
The walking tractor can plough, rotary tillage, sowing, harvest, ditch, irrigation, threshing and transportation,Please choose the
suitable tools .Light weight, small size, big horse, it does not limit the working site.Such as Hill,
Mountainous Region, Vegetable Field, Orchard, Plain, Greenhouse, Dry Land, Wheat Field.
ShoppingTogether
12hp 14hp 16hp diesel engine kubota power tiller cultivator two wheel walking behind tractor for sell
12hp 14hp 16hp diesel engine kubota power tiller cultivator two wheel walking behind tractor for sell
Regular price
₱835.00 PHP
Regular price
₱835.00 PHP
Sale price
₱835.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Product show
|
Basic Model
|
DF-12
|
DF-15
|
DF-18
|
||||
|
Type
|
Single axle / dual purpose for traction and drive
|
||||||
|
O.D
|
2680 x 960 x 1250 mm
|
2680 x 1030 x 1290 mm
|
|||||
|
Strucutre weight
|
Without rotavator
|
350 kg
|
360 kg
|
390 kg
|
|||
|
With rotavator
|
455 kg
|
465 kg
|
495 kg
|
||||
|
Travelling speed
|
6 forward
|
1.5 / 2.7 / 4.4 / 5.7 / 10.2 / 16.5 km/h
|
|||||
|
2 reverse
|
1.1 / 4.1 km/h
|
||||||
|
Tyre
|
6.00 - 12
|
||||||
|
Minimum Ground clearance
|
182 mm
|
||||||
|
Wheel track
|
800 (default) / 740 / 640 / 580 mm
|
||||||
|
Rotavator
|
Tilling width
|
600 / 900 mm
|
|||||
|
Qty of blade
|
18 / 24 pcs
|
||||||
|
Engine
|
Brand
|
CHANGCHAI CHANGFA JIANGDONG AND OTHER FAMOUS MAKE
|
|||||
|
Type
|
Single cylinder / Horizontal / 4 Stroke / Direct Inject (Swirl)
|
||||||
|
Model
|
S195
|
ZS1100
|
ZS1105
|
||||
|
Bore x Stroke
|
95 x 115 mm
|
100 x 115 mm
|
105 x 115 mm
|
||||
|
Displacement
|
0.815 L
|
0.903 L
|
0.996 L
|
||||
|
Compression Ratio
|
22:1
|
20:1
|
17:1
|
||||
|
Rated output/speed
|
12hp / 2000 rpm
|
15hp / 2200rpm
|
18hp / 2200 rpm
|
||||
|
Cooling System
|
Evaporator / Radiator (Condenser)
|
||||||
|
Starting Method
|
Hand crank / Electric start
|
||||||
|
Clutch type
|
Two-disc, constant-contact, friction
|
||||||
|
Fuel consumption
|
265.2 g/kw.h
|
253.8 g/kw.h
|
|||||
|
Oil consumption
|
≤ 2.72 g/kw.h
|
||||||

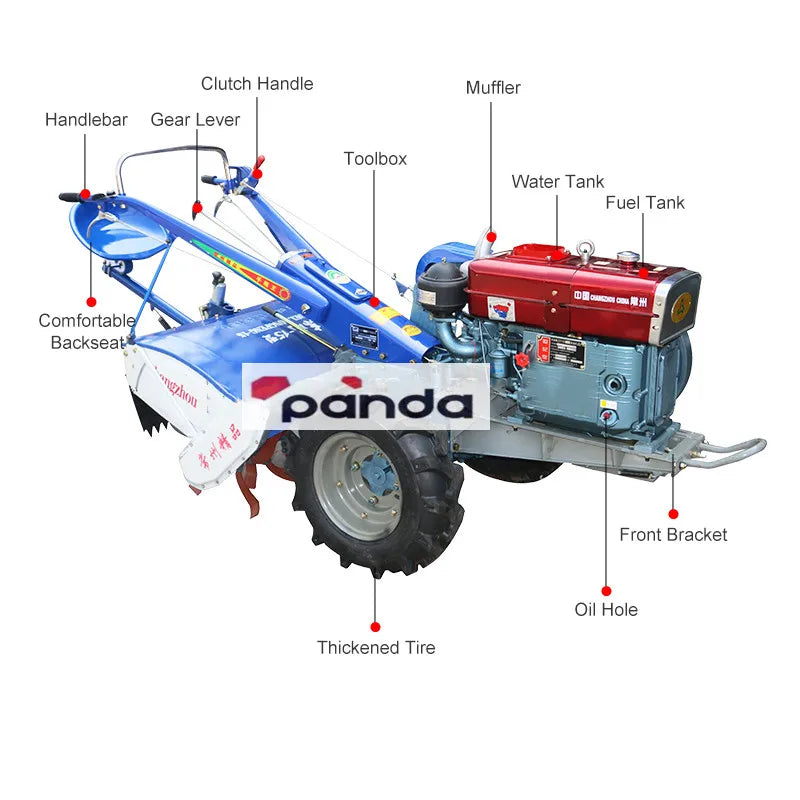

Walking Hand Tractor
Walking tractor is a kind of small tractor, which is composed of engine, chassis and electrical system. It is mainly used for
traction and transportation. It has simple structure and low power.

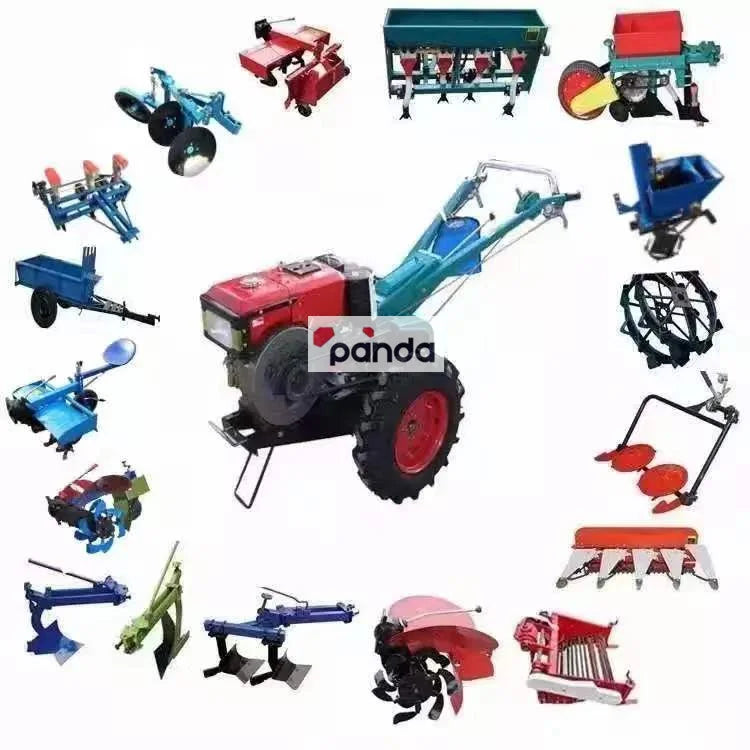

Application: ploughing, rotary tillage, sowing, harvesting, ditching, irrigation, threshing and transportation
Features: light weight, compact model, flexible operation, strong adaptability,etc. Equipped with different agricultural
machinery, it can plough, rotary tillage, leveling, soil crushing and other field operations. With trailer, it can also carry out
short distance.
Walking tractor is a kind of small tractor, which is composed of engine, chassis and electrical system. It is mainly used for
traction and transportation. It has simple structure and low power.
Application: ploughing, rotary tillage, sowing, harvesting, ditching, irrigation, threshing and transportation
Features: light weight, compact model, flexible operation, strong adaptability,etc. Equipped with different agricultural
machinery, it can plough, rotary tillage, leveling, soil crushing and other field operations. With trailer, it can also carry out
short distance.
