15M Wheels Mining Rotary Drilling Rig Machine
15M Wheels Mining Rotary Drilling Rig Machine
Regular price
₱24,000.00 PHP
Regular price
₱24,000.00 PHP
Sale price
₱24,000.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Rotary drilling rig
is a kind of construction machinery suitable for drilling operation in building foundation engineering. It is mainly suitable for the construction of sandy clay, silty soil and other soil layers. It has been widely used in the construction of cast-in-place piles, diaphragm walls and foundation reinforcement.
The rated power of rotary drilling rigs is generally 125 kW, the maximum diameter of drilling holes can reach 2.2 m, and the maximum depth of drilling holes can reach 15 m, this drilling machine can meet the
requirements of various large-scale foundation construction.
requirements of various large-scale foundation construction.

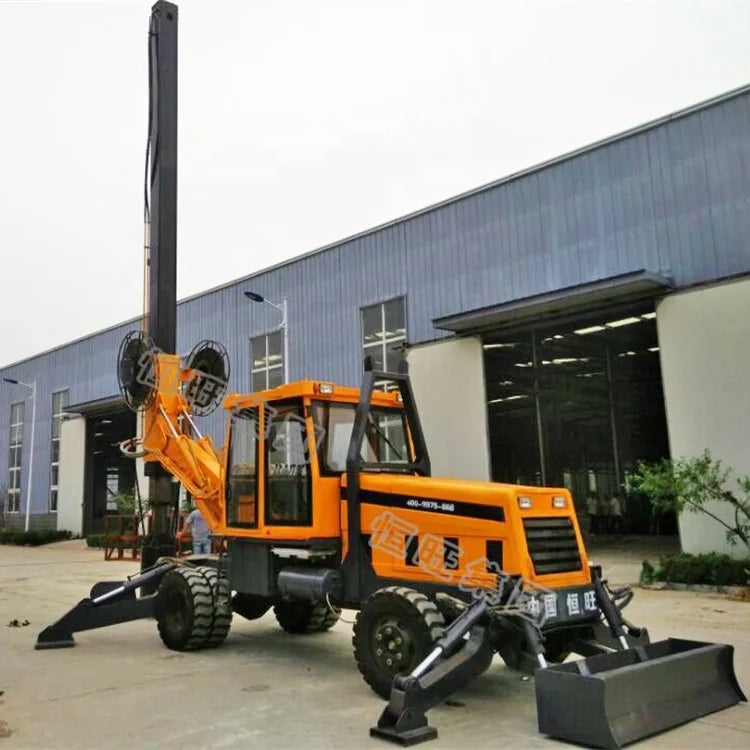

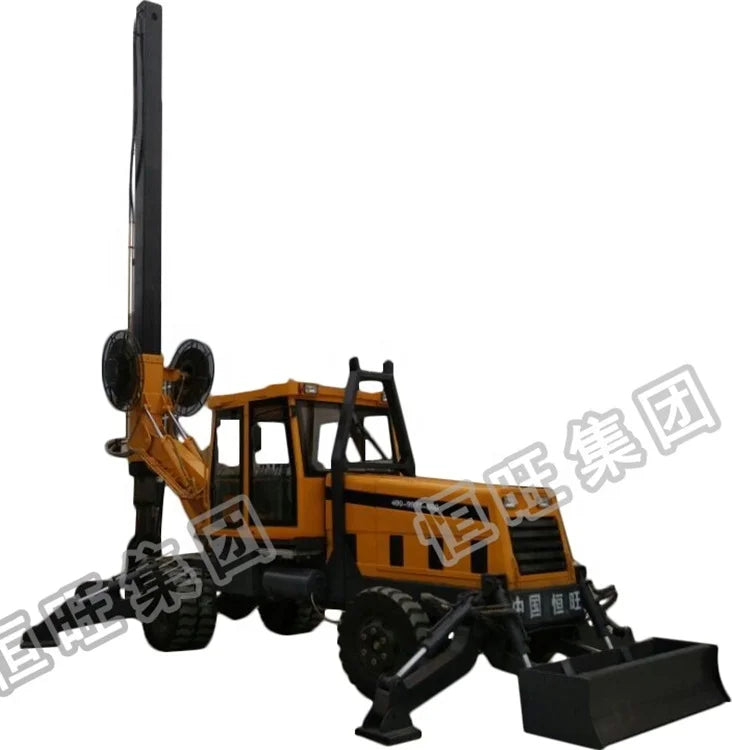

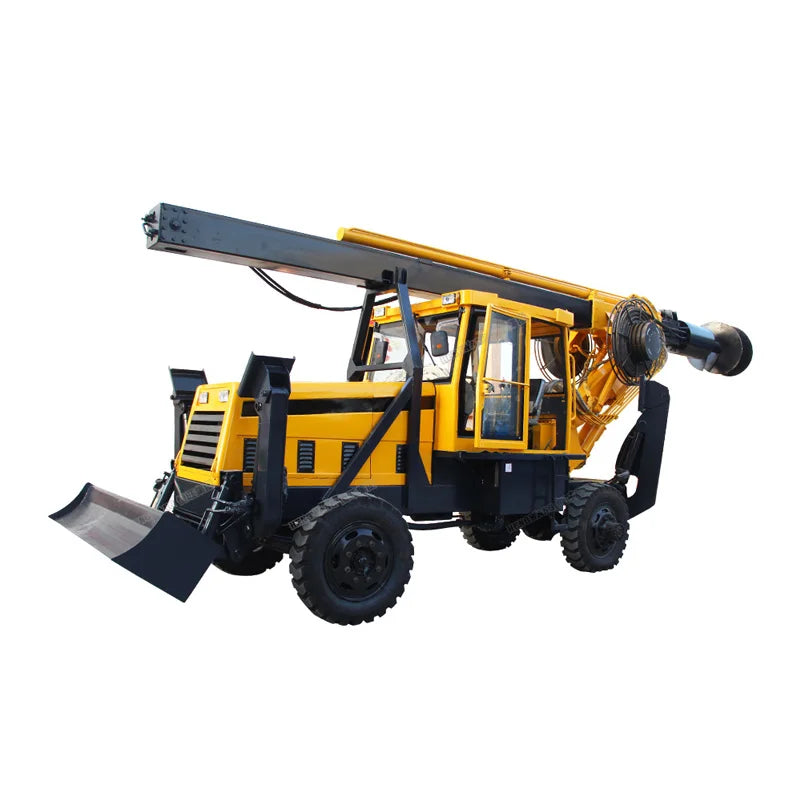

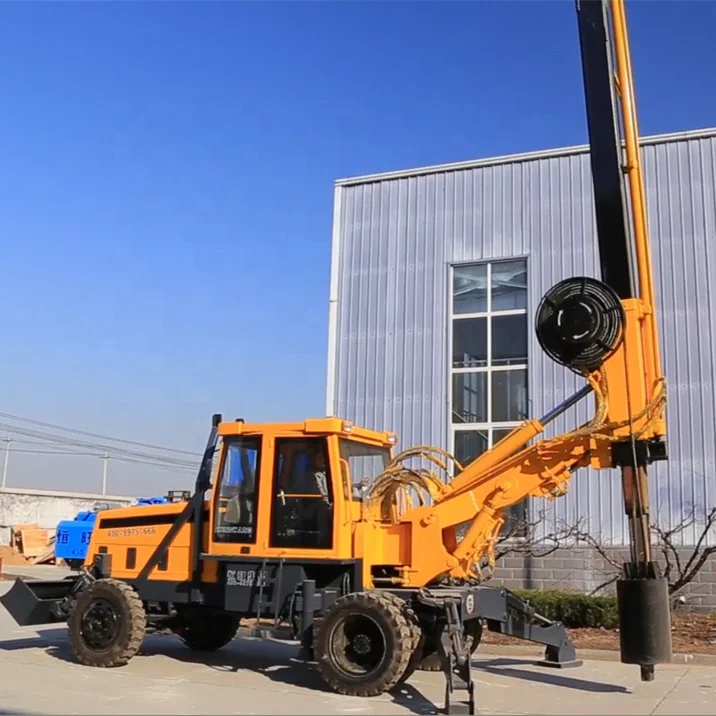

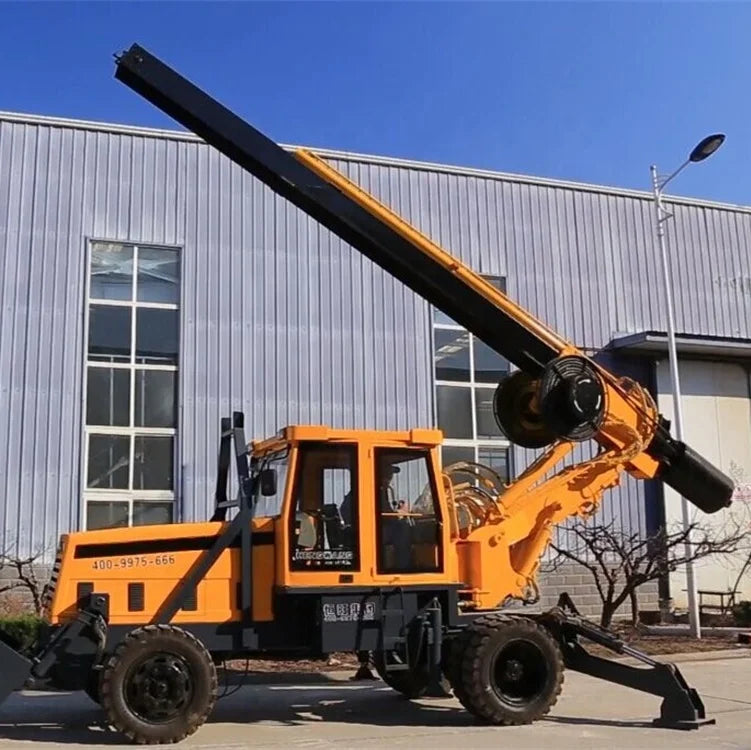

Wheeled Rotary Drilling Rig.
Technical Parameter
|
Product Name
|
Rotary Drilling Rig
|
|
Model
|
HW126
|
|
Engine Powder (KW)
|
126KW
|
|
Max Depth (m)
|
15
|
|
Drill Rod Diameter (mm)
|
500-2200
|
|
Overall Dimension (mm)
|
8600*2360*3250
|
|
Machine Weight (T）
|
9
|
|
Walking Speed (km/h)
|
50
|
|
Working Pressure of Hydraulic System (Mpa)
|
16-30
|
|
Flow rate of hydraulic system
|
22-30
|
Detailed Images
Rotary Drilling Machine Advantage
1. Multi-purpose drilling machine, complete a variety of drilling methods. 2. The equipment has advanced functions, high automation level and low rest intensity.
3. High Drilling efficiency.
4. Good quality of piles.
5. Low environmental purification and noise.
