200m 300m 400m depth Rock wells Air Drilling water well drill borehole drilling rig machine for sale
200m 300m 400m depth Rock wells Air Drilling water well drill borehole drilling rig machine for sale
Regular price
₱8,699.00 PHP
Regular price
₱8,699.00 PHP
Sale price
₱8,699.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

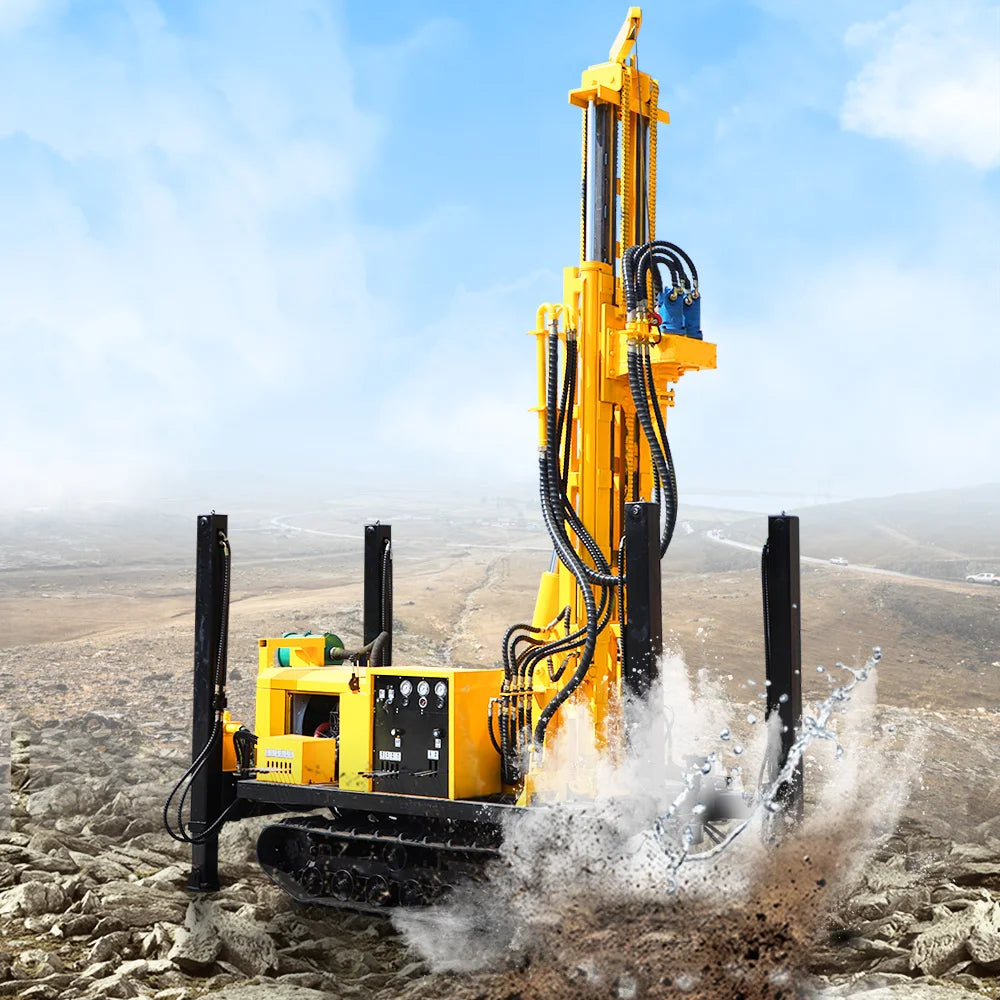

200m 300m 400m depth Rock wells Air drilling water well drill borehole drilling rig machine
Product Description
The penumatic water well drilling rig adopt super hydraulic transmission, CNC control, automatic drilling experience Drilling Rock:20M~40M/Hour
Hengwang series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering.
Hengwang series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering.
|
Drilling Machine Parameters
|
||||||||||||
|
Model
|
HW-180L
|
HW-220L
|
HW-260L
|
HW-320L
|
HW-450L
|
HW-500L
|
||||||
|
Overall weight (T)
|
3.5
|
4.2
|
6.4
|
8
|
8.7
|
9.5
|
||||||
|
Dimension (mm )
|
3400*1500*2400
|
3800*1700*2350
|
4100*1900*2600
|
5500*1950*2780
|
5300*2050*2700
|
5350*2100*2700
|
||||||
|
Drilling diameter(mm )
|
130-245
|
130-294
|
140-300
|
140-325
|
130-400
|
140-400
|
||||||
|
Drilling depth(m)
|
150
|
180
|
260
|
300
|
400
|
500
|
||||||
|
One-time advance length of the drill(mm)
|
3000
|
3000
|
3000
|
3000/6000
|
3000/6000
|
3000/6000
|
||||||
|
Traveling speed(km/h )
|
2.5
|
2.5
|
2.5
|
2.5
|
6
|
6
|
||||||
|
Climbing ability(max )
|
25
|
30
|
30
|
30
|
25
|
25
|
||||||
|
Minimum Ground Clearance(mm)
|
250
|
250
|
250
|
230
|
300
|
350
|
||||||
|
Working Air Pressure(mpa )
|
1.45 - 2.5
|
1.7-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption
|
15 - 27
|
15 - 27
|
17-35
|
23
|
17-35
|
17-35
|
||||||
|
Main machine power(kw)
|
42 /Yunnei
|
60/ Yunnei
|
85/Yuchai
|
92/Yuchai
|
100/6 cylinder
|
114/6 cylinder
|
||||||
According to different drilling depth requirements,
we have different models for you to choose

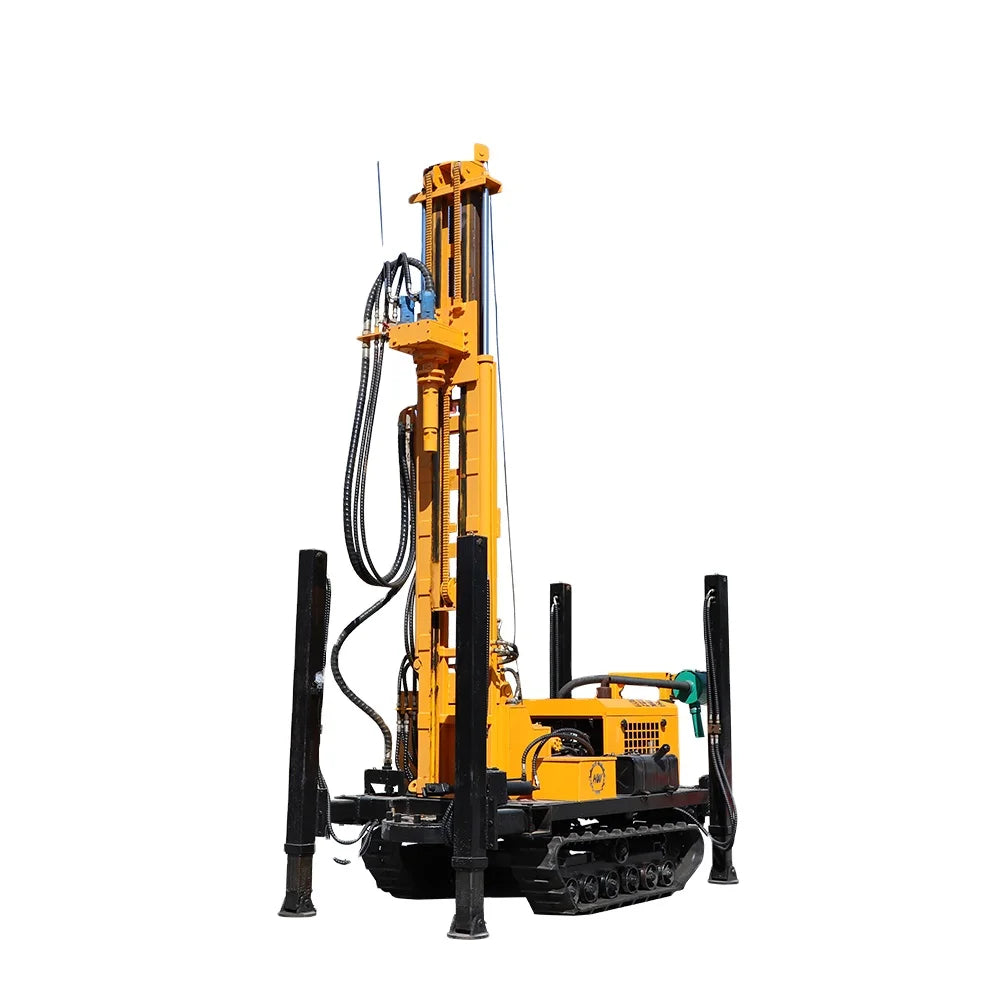

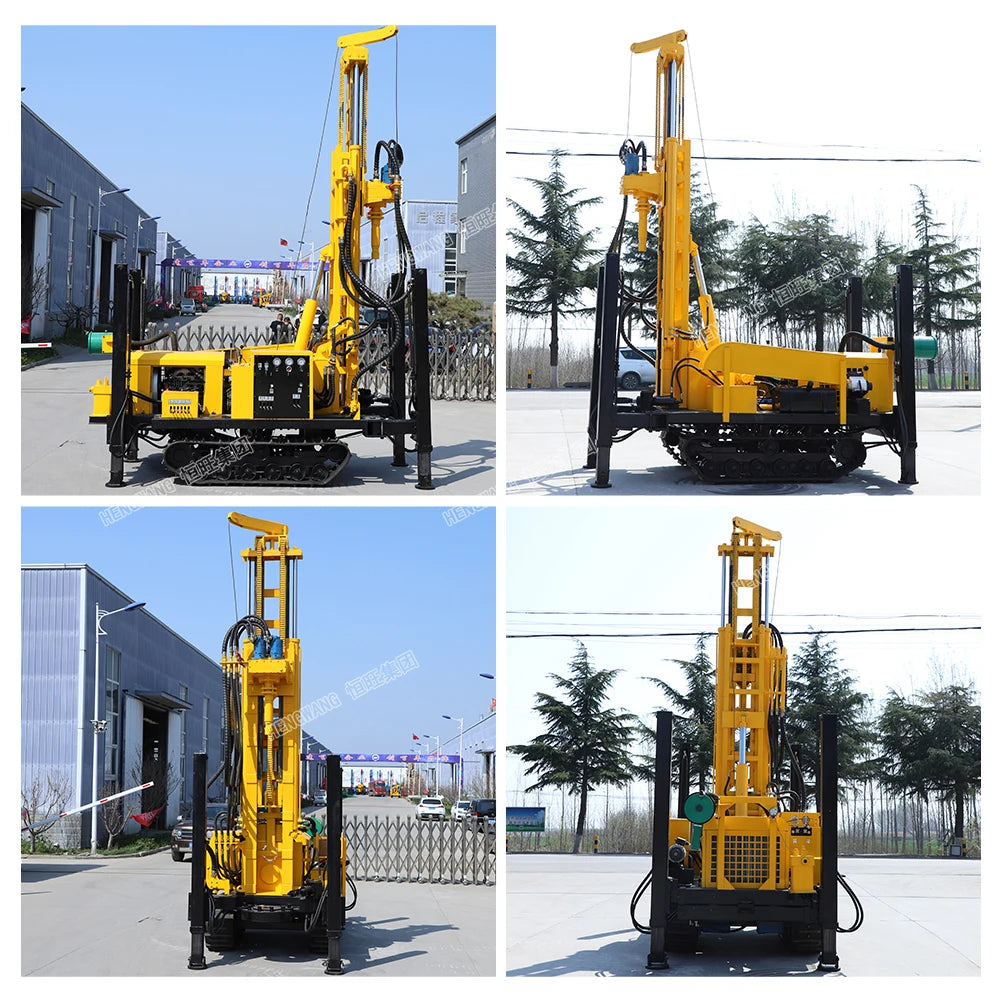

Detail Images
Features:
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
Product Usage
Packing&Shipping
200m 300m 400m depth Rock wells Drilling Machine Air DTH water well drill borehole drilling rig machine for sale

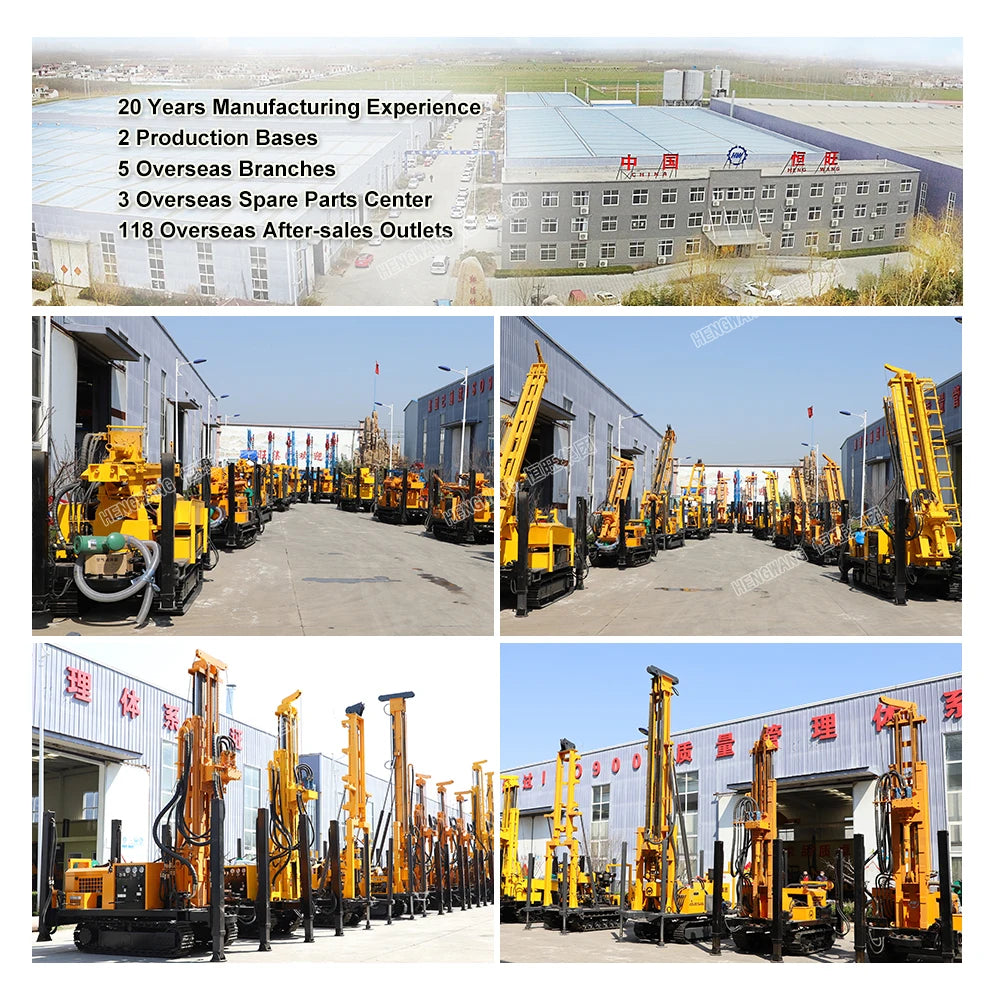

Company Profile
