200m 300m 500m water wells borehole drilling machine rigs water well drilling rig well drill
200m 300m 500m water wells borehole drilling machine rigs water well drilling rig well drill
Regular price
ā±9,500.00 PHP
Regular price
ā±9,500.00 PHP
Sale price
ā±9,500.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping 200m 300m 500m well drill rigs water wells borehole drilling machine rig for water well drilling rig

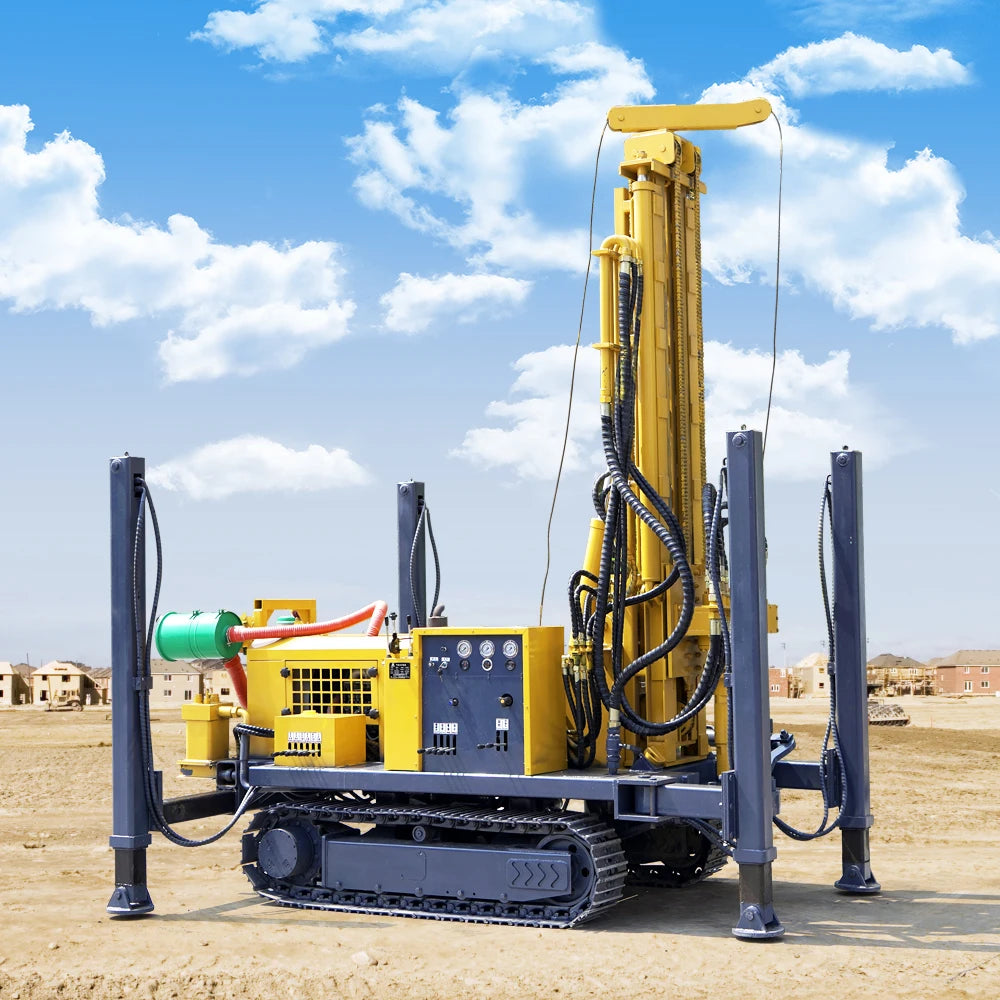

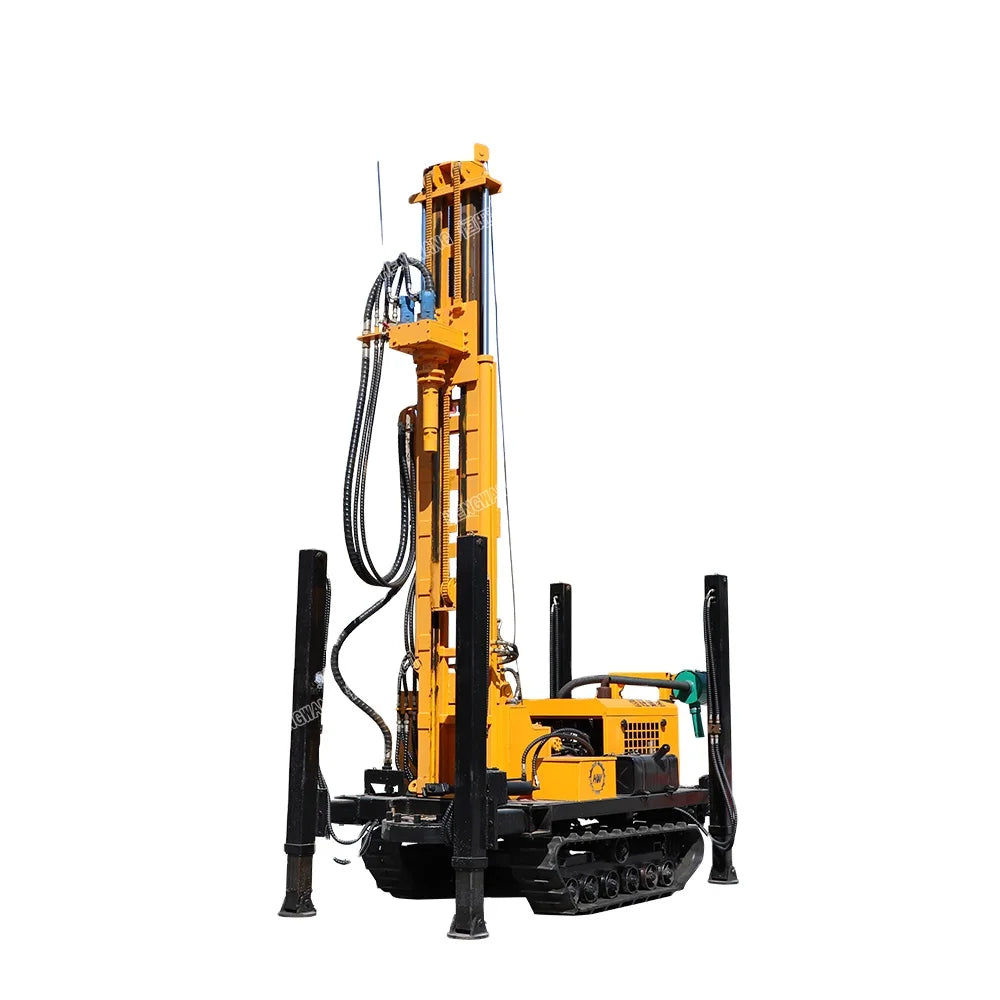

HQZ220L Pneumatic drilling rig (CRAWLER TYPE)
The drilling rig is mainly applied in drilling wells, irrigation wells, geothermalwells and air holes for other purposes, especially for mountain and rock formation water engineering
Drilling Rock:20M~40M/Hour
Drilling Rock:20M~40M/Hour
Product Description
Borewell drilling machine 200m dth water well drilling rig for sale
Hengwang series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 300mm,drilling depth 200m.
Specification
|
Specification of 200m DTH Drilling Rig
|
||
|
The weight(T)
|
6.5
|
|
|
Dimensions(mm)
|
3442*2200*2800
|
|
|
The hole diameter(mm)
|
100~300
|
|
|
Drilling depth(m)
|
220
|
|
|
Once-time advance length(mm)
|
3000
|
|
|
Minimum clearance clearance(mm)
|
250
|
|
|
Using air pressure(Mpa)
|
1.7-3.5
|
|
|
Air consumption(mĀ³/min)
|
17-31
|
|
|
Equipped capacitor(Kw)
|
100
|
|
|
Drill pipe diameter(mm)
|
Ī¦76 Ī¦89 Ī¦102
|
|
|
Rig lifting force(T)
|
20
|
|
Main Features
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.
1.High drilling efficiency, power provided by 60KW Yunnei diesel engine
2.High efficiency(20M~40M/Hour), large rotary torque(6000-6500N.m)
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,easy to operating.
Borewell drilling machine 200m dth water well drilling rig for sale
Free shipping 200m 300m 500m well drill rigs water wells borehole drilling machine rig for water well drilling rig

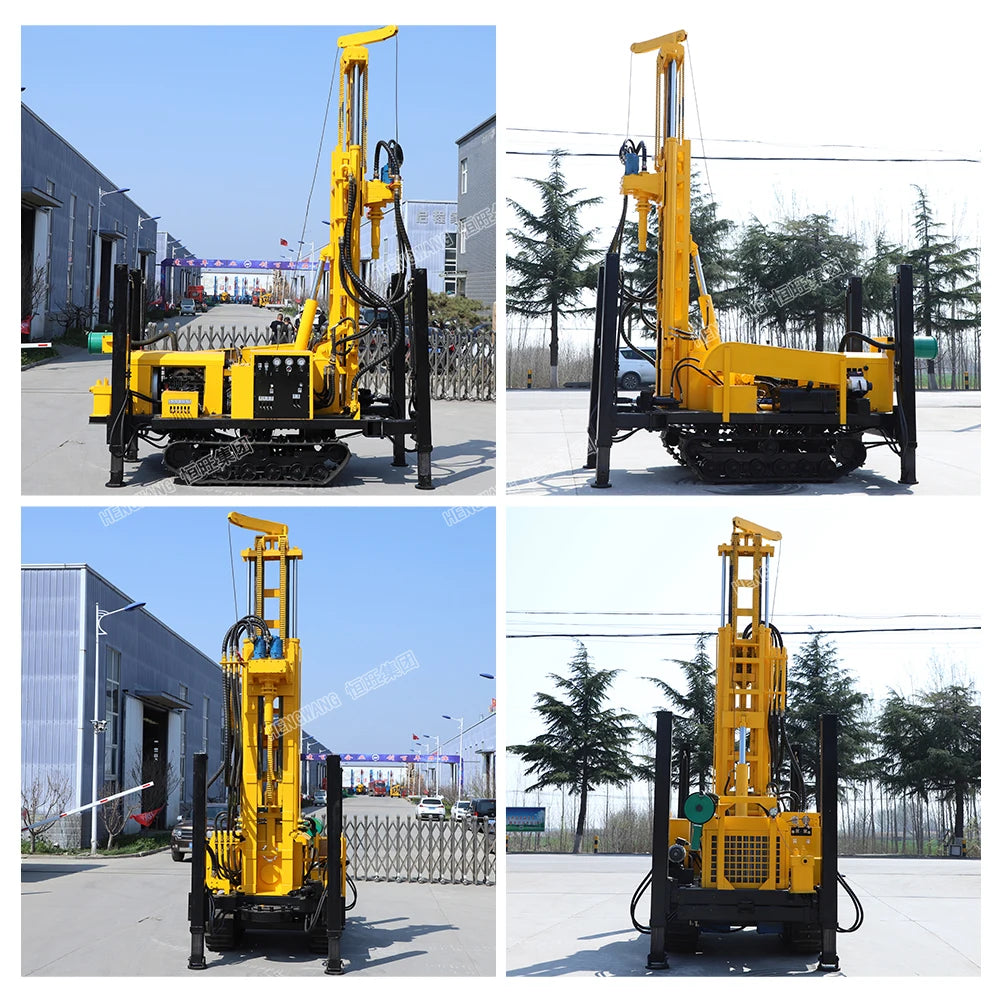

Details Images
Free shipping 200m 300m 500m well drill rigs water wells borehole drilling machine rig for water well drilling rig
Packing & Delivery
Water well drilling rig loading instruction
HQZ180L/220L/260L /320L drilling rig 20GP/1pc container
HQZ180L/220L/260L /320L drilling rig 20GP/1pc container
HQZ450L/HQZ500L drilling rig 40GP/1pc container
HQZ180L/220L/260L /320L/450L/500L+Air compressor drilling rig 40GP/1SET
HQZ180L/220L/260L /320L/450L/500L+Air compressor drilling rig 40GP/1SET
Recommend Products
|
Model
|
HQZ-180L
|
|
Type
|
Pneumatic Water Well Drilling Rig
|
|
Drilling depth
|
180m
|
|
Drilling diameter
|
130-245mm
|
|
Engine Power
|
42Kw
|
|
Model
|
HQZ-260L
|
|
Type
|
Pneumatic Water Well Drilling Rig
|
|
Drilling depth
|
260m
|
|
Drilling diameter
|
140-300mm
|
|
Engine Power
|
76Kw
|
|
Model
|
HQZ-320L
|
|
Type
|
Pneumatic Water Well Drilling Rig
|
|
Drilling depth
|
320m
|
|
Drilling diameter
|
140-320mm
|
|
Engine Power
|
92Kw
|
|
Model
|
HQZ-450L
|
|
Type
|
Pneumatic Water Well Drilling Rig
|
|
Drilling depth
|
450m
|
|
Drilling diameter
|
140-400mm
|
|
Engine Power
|
105Kw
|
Related Product
Hengwang Group, as a history manufacturer of drilling rigs in China, could offer hydraulic water well drilling rgs, peumatic water well drilling rigs, dth rock drilling rig, geological exploration drilling rig, and series of engineering drilling rigs. Classified from the chassis, we have portable type, wheeled type, crawler type, tractor type, truck type for choice. Click to find the suitable one!!!
Hydraulic water well drilling rig.
Suitable for soil and few rocks
Used for
drilling wells and borehole
DTH drilling rig.
Suitable for rocks
Used for making blasting holes
Reverse eirculation drilling rig.
Suitable for soil
Used for drilling wells
