30m Excavator Mounted Full Hydraulic Small Type Rotary Pile Driver
30m Excavator Mounted Full Hydraulic Small Type Rotary Pile Driver
Regular price
₱23,000.00 PHP
Regular price
₱23,000.00 PHP
Sale price
₱23,000.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Related Product
Product Description
Foundation Pile Rotary Drilling Rig The machine lock bar rotary drilling rig uses hydraulic crawler-type telescopic chassis,self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is aconstruction machine suitable for hole formation in building foundation engineering. Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc.
it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.
Technical characteristics
|
Model
|
HWR120
|
|
Drill diameter
|
400-1200mm
|
|
Drill depth
|
15m
|
|
Engine
|
110kw
|
|
Powe head torque
|
80kn/m
|
|
Power head drilling speed
|
10-50 r/min
|
|
Main winch lifting force
|
100kn
|
|
Main winch lifting speed
|
70m/min
|
|
wire rope diameter
|
24mm
|
|
Vice winch lifting force
|
15kn/m
|
|
Vice winch lifting speed
|
50m/min
|
|
wire rope diameter
|
12mm
|
|
Pressurized cylinder
Maximum pressure (kn)
|
100kn
|
|
Pressurized cylinder
Maximum lifting force (kn)
|
100kn
|
|
Pressurized cylinder
Stroke
|
2500mm
|
|
Walking speed
|
5 km/h
|
|
max. climbing ability
|
30 °
|
|
Hydraulic system pressure
|
28 Mpa
|
|
Working radius
|
3.6m
|
|
Dimension
|
9.8*2.5*3.35m
|
|
Weight
|
19000
|

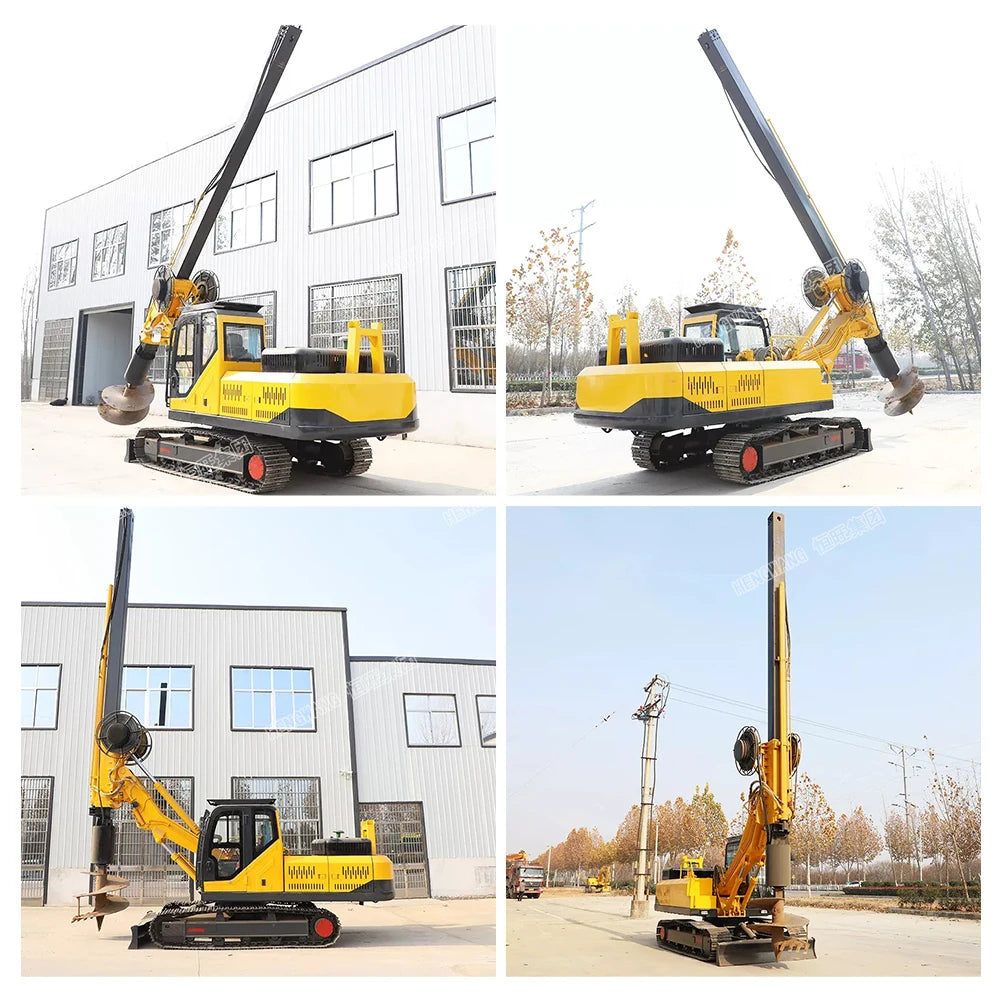

Detailed Images

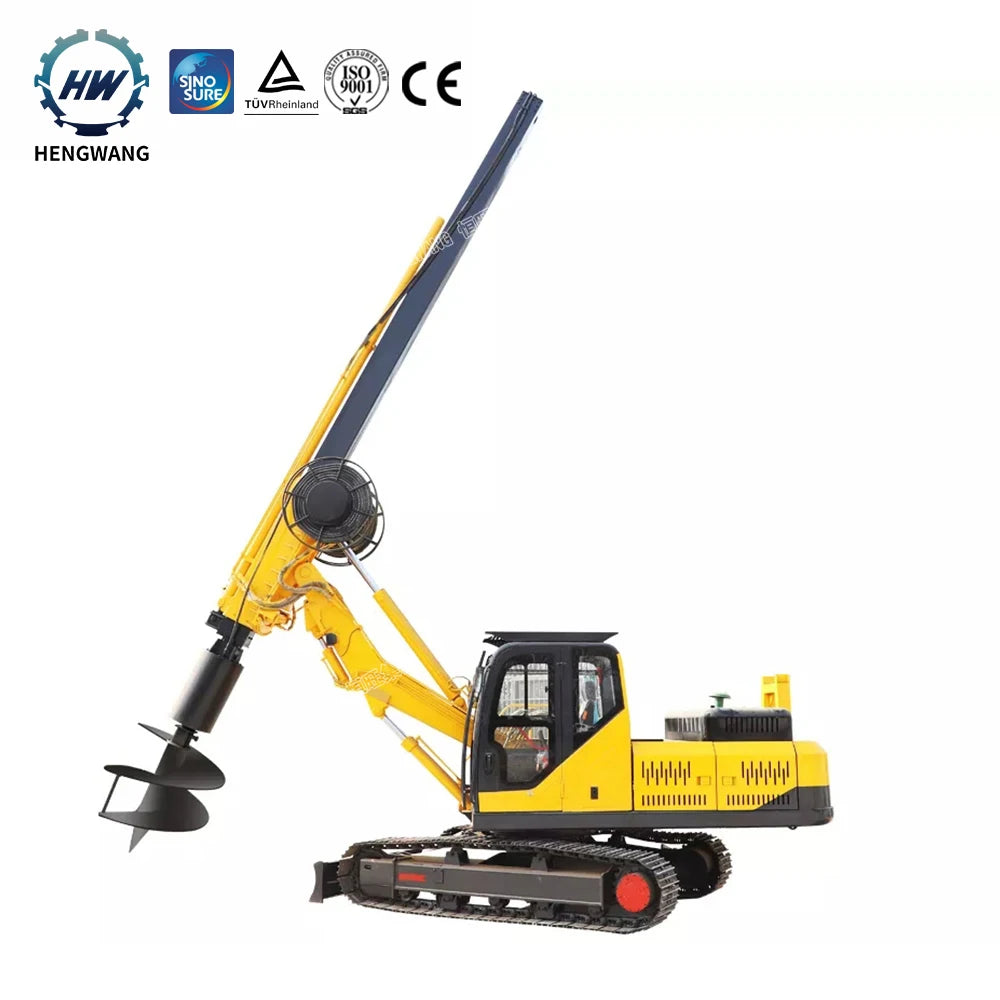

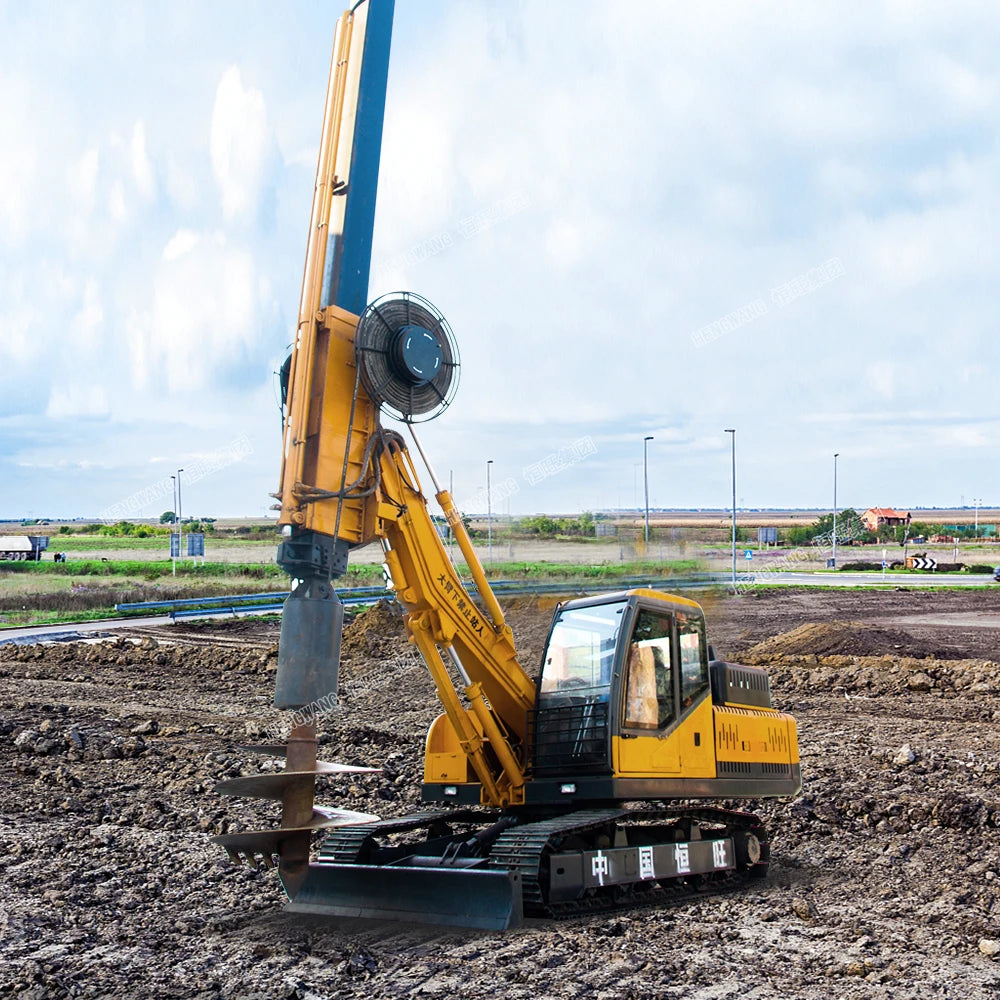

Rotary piling drilling rig
Drilling diameter :400-1200mm
Drilling depth :15m
Engine Power :110Kw

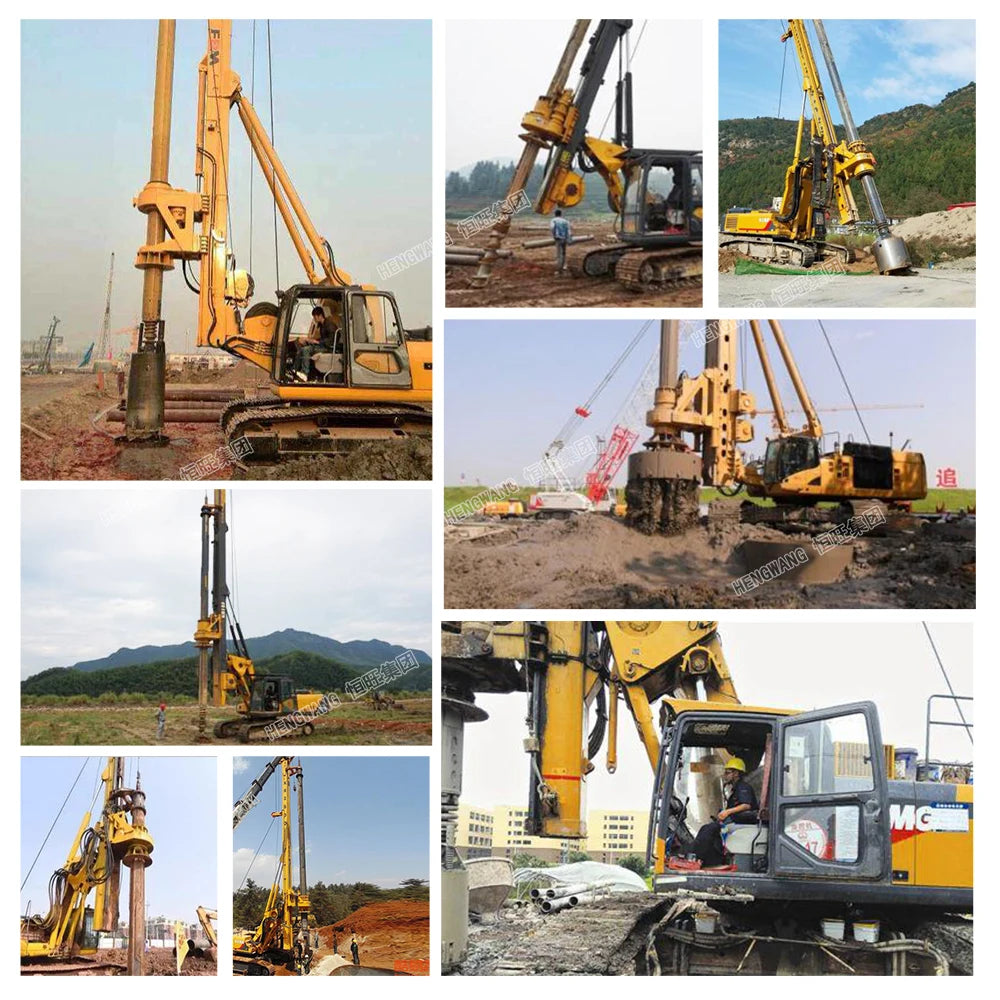

Application
rotary piling rig widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.
