Introduction Of TOP Quality 3.0 m3 self loading concrete mixer truck price
The mixing drum can rotate hydraulically through 270 degrees for high discharge over 2.0m on the four sides of the vehicle.zmmw02
The drum can also be lifted up 20° by two hydraulic cylinders at bottom for the convenient discharge of concrete.
YN38GBZ is driven by YUNNEI, 76kW , Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low
Fuel Comsumption. The YUCHAI Engine is availabe upon request.
Electronic weighing system is equipped with this vehicle. The "loading cells" are acting on the drum, and technical data are
displayed on the shovel loader weigher inside the cabin.
Parameter Of TOP Quality 3.0 m3 self loading concrete mixer truck price
| Mixing Drum |
|
| Mixing volume |
3.0 M3 |
| Geometrical volume |
4.6/ M3 |
| Concrete output |
3.0M3 / batch, 12 M3 / hour |
| Drum rotating speed |
18 rpm |
| Drum slewing angle |
270° |
| Adjust up and down |
20° |
| Engine |
|
| Brand |
YUNNEI(YUCHAI Engine optional) |
| Model |
YN38GBZ |
| Type |
4-Cylinder inline,direct injection |
| Rated power |
76KW |
| Max torque |
260-332/1800-2200 |
| Chassis |
|
| Structure |
Integrated rigid chassis |
| Transmission system |
Adopt 280 split torque converter gearbox,with hing ang low speed |
| Wheelbase |
2100mm |
| Axles |
16Ton reduction driving axle |
| Tyre size |
Off road steel cord type, 23.5/70-16 |
| Cabin |
|
| Type |
type closed front cab |
| Joystick control |
Double-joystick control the hydraulic system |
| Weighing system |
The loading cells are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin. |
| Air conditioning system |
Cooling & heating air conditioner |
| Water supply sysytem |
|
| Max. water suction capacity |
Self-priming hydraulic water pump |
| Water tank capacity |
2*250L |
| Electric system |
|
| Battery: |
2x12V-100AH |
| Vehicle |
||
| Car weight |
7000Kg |
|
| Loadable |
16000Kg |
|
| Overall size (L*W*H) |
6650 * 2540 * 3200mm (4130mm full height) |
|
| Service refill capacities |
|
|
| Fuel tank |
125L |
|
| Total hydraulic system capacity |
125L |
|

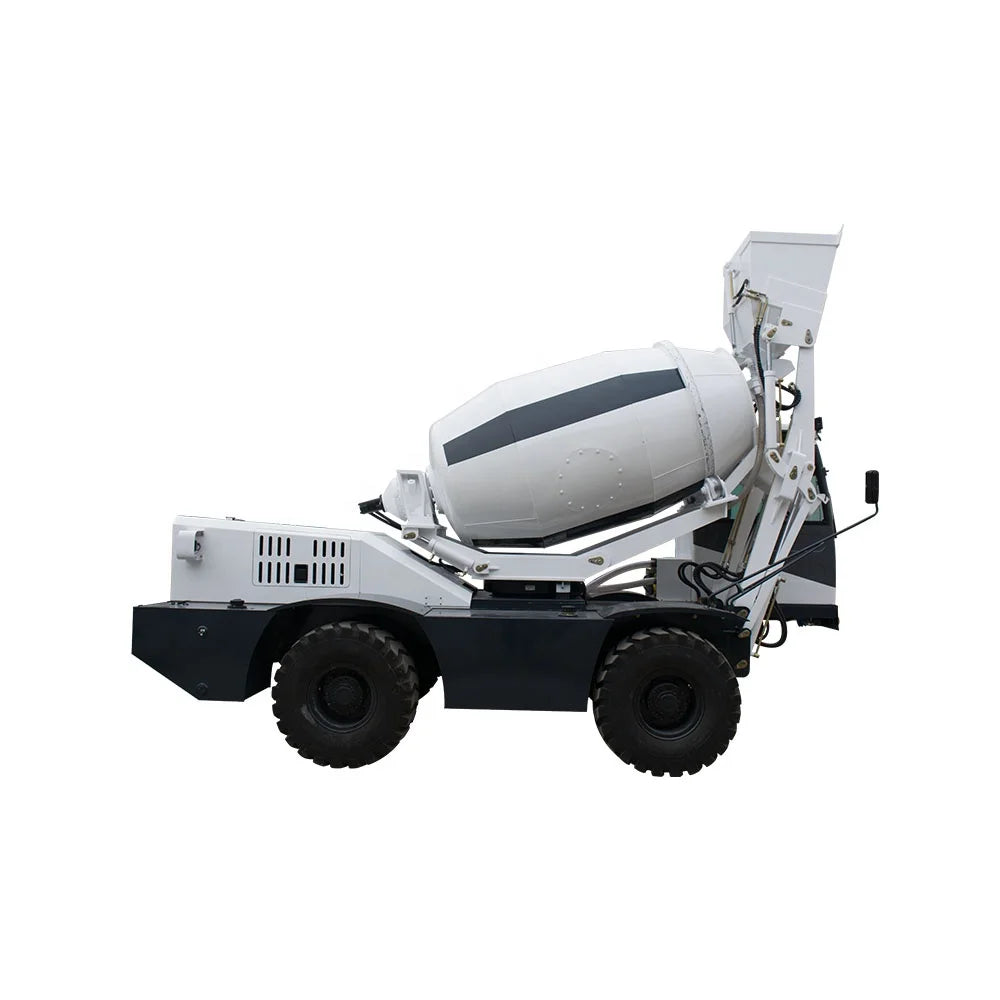

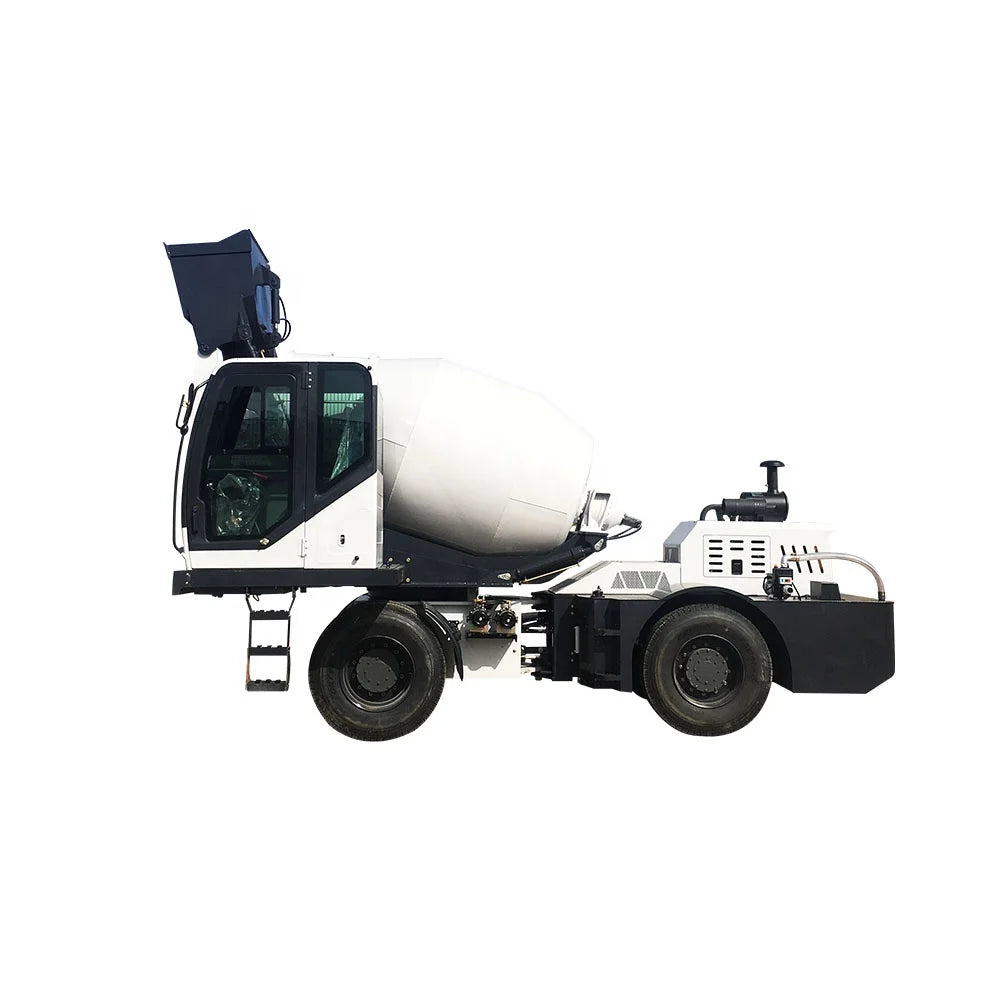

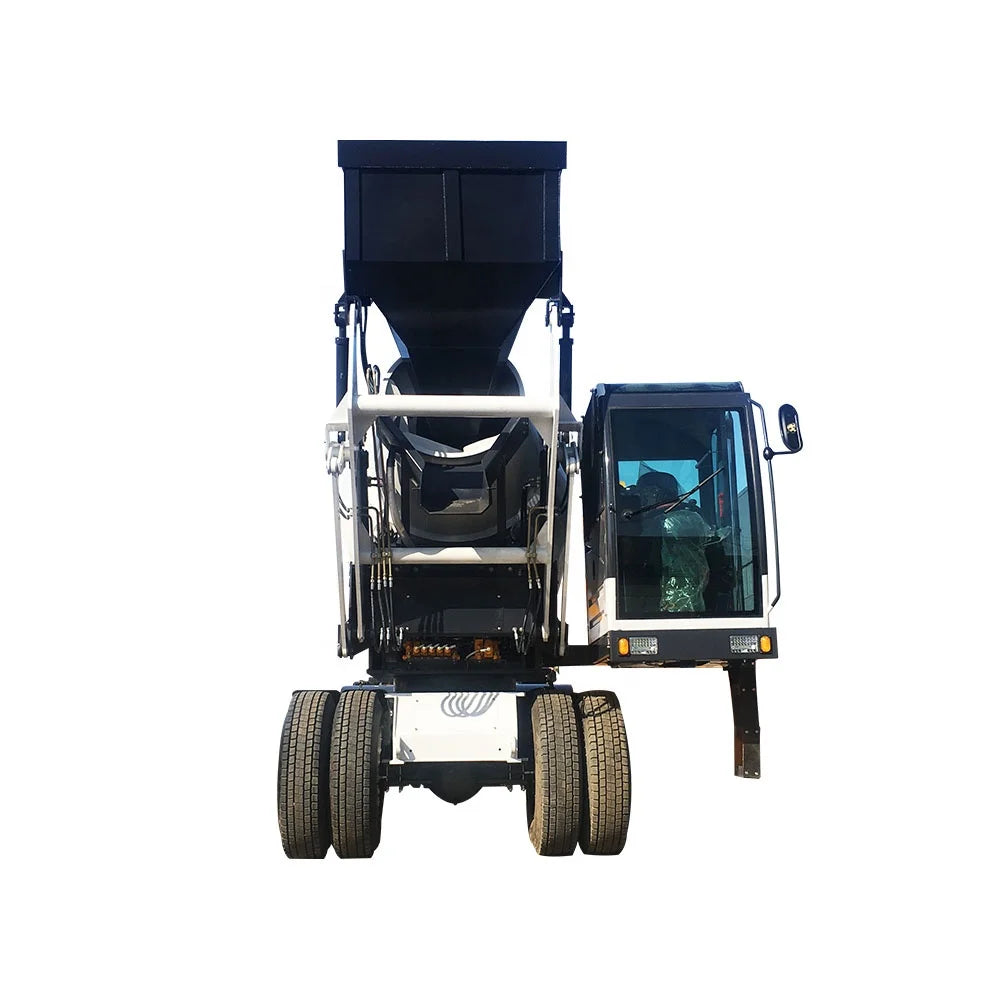

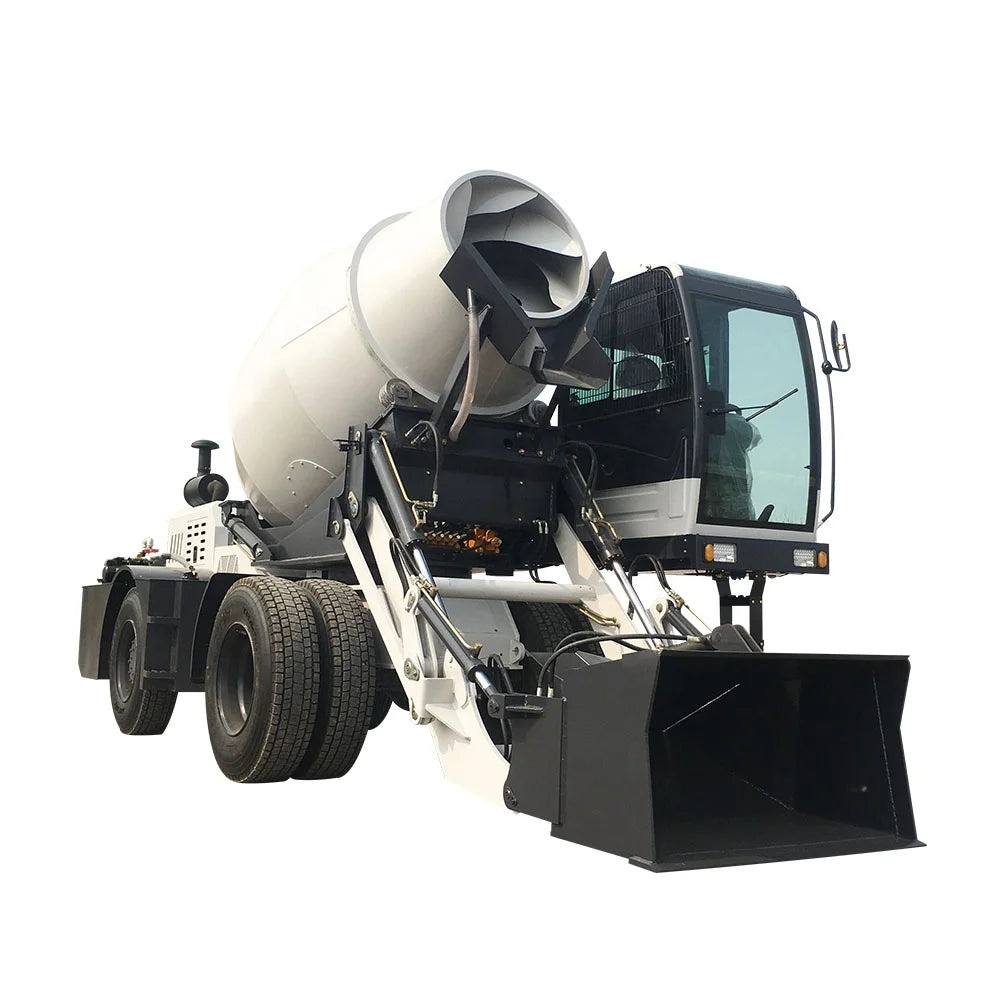

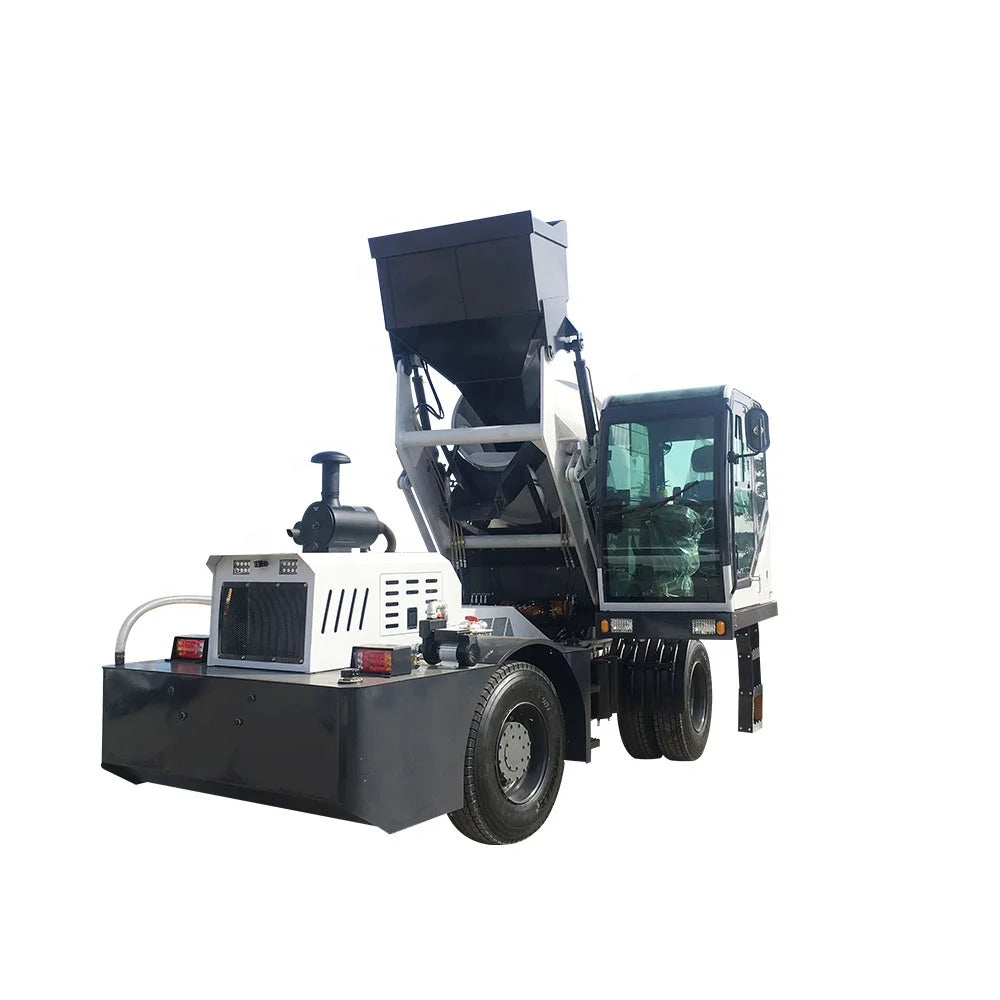

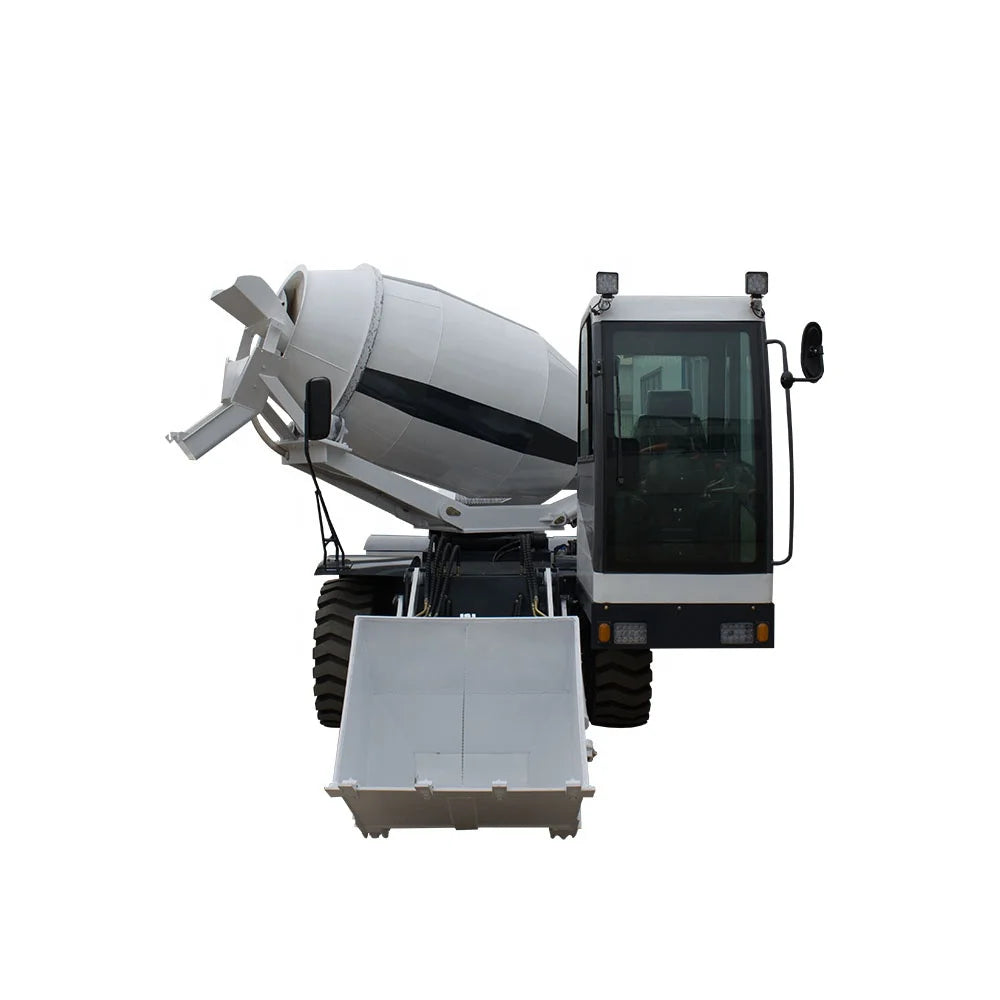

Photos Of TOP Quality 3.0 m3 self loading concrete mixer truck
