Our high torque drive units work great in even the toughest conditions.
* Max auger diameter up to 2m, Max drilling depth up to 20m.
* It can be working as pile driver, we can supply all its spare parts.
ShoppingTogether
earth auger drill for backhoe loader/ excavator/ truck crane
earth auger drill for backhoe loader/ excavator/ truck crane
Regular price
₱1,000.00 PHP
Regular price
₱1,000.00 PHP
Sale price
₱1,000.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
SC Earth auger drive
SC Earth Augers are specially designed for drilling holes in earth, shale, clay and fracturable rock. SC's new generation earth drill range is the ultimate in performance, quality and cost effectiveness. Over 20 years of design and development has produced the highest quality range of earth drills, also called auger drives, ideally suited to drilling applications in most ground conditions.
We provide solutions for excavators, backhoes, skid steer loaders, telehandlers and truck cranes of various makes and models. *
Our high torque drive units work great in even the toughest conditions.
* Max auger diameter up to 2m, Max drilling depth up to 20m.
* It can be working as pile driver, we can supply all its spare parts.
Our high torque drive units work great in even the toughest conditions.
* Max auger diameter up to 2m, Max drilling depth up to 20m.
* It can be working as pile driver, we can supply all its spare parts.
PRODUCT SPECIFICATIONS
|
S.N
|
MODEL
|
Excavator weight
|
Max speed R/m
|
Max torque Nm
|
STD Oil flow L/m
|
Immidiate pressure Bar
|
Outshaft mm
|
Hose
|
auger diameter mm
|
|
1
|
SC1500
|
0.8-1.5T
|
80
|
1500
|
55
|
170
|
51Hex, 65Rnd
|
1/2''G
|
100-500
|
|
2
|

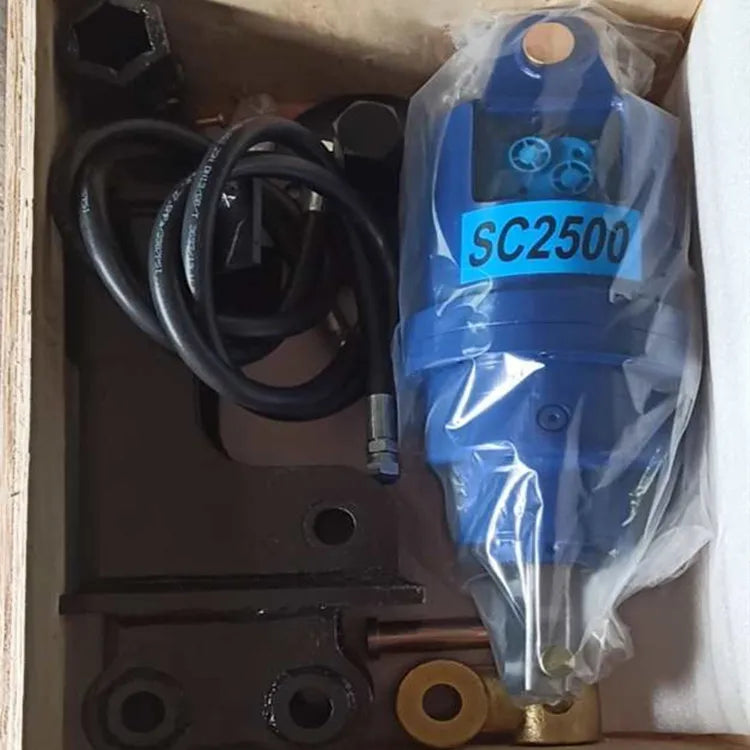

SC2500
|
1.5T-2.5T
|
62
|
2500
|
75
|
260
|
1/2''G
|
100-600
|
|
|
3
|

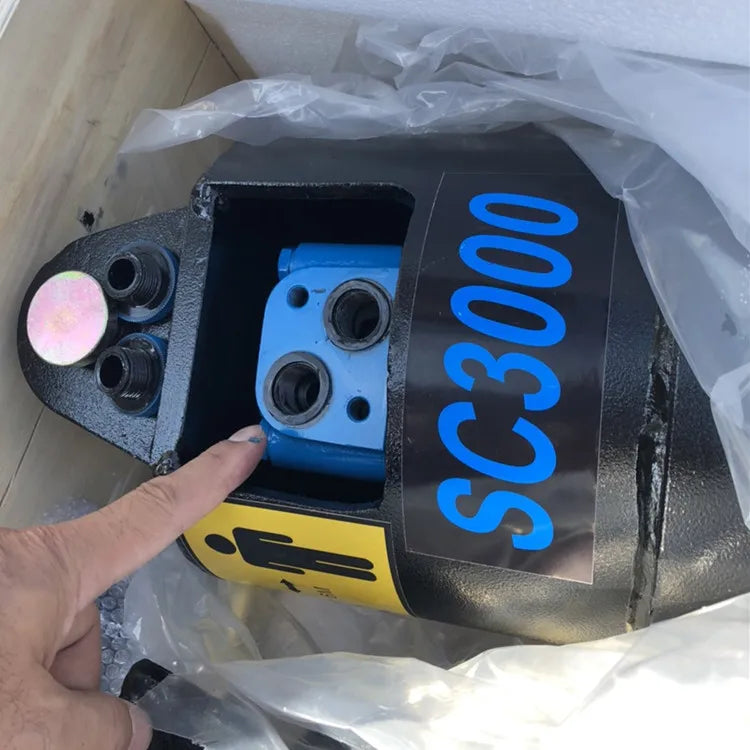

SC3000
|
2T-3T
|
62
|
3000
|
75
|
260
|
1/2''G
|
||
|
4
|
SC3500
|
2.5T-3.5T
|
56
|
3500
|
75
|
260
|
1/2''G
|
||
|
5
|
SC4000
|
3T-4T
|
56
|
4000
|
75
|
260
|
1/2''G
|
||
|
6
|
SC4500
|
3.5T-4.5T
|
50
|
4500
|
95
|
260
|
1/2''G
|
200-600
|
|
|
7
|
SC5000
|
4T-5.5T
|
48
|
5000
|
95
|
260
|
1/2''G
|
||
|
8
|
SC5500
|
4T-6T
|
44
|
5500
|
95
|
310
|
1/2''G
|
350-800
|
|
|
9
|
SC6000
|
4.5T-7T
|
42
|
6000
|
95
|
310
|
1/2''G
|
||
|
10
|
SC7000
|
5T-8T
|
38
|
7000
|
150
|
310
|
75 Square
|
1''G
|
350-800
|
|
11
|
SC8000
|
6T-8T
|
36
|
8000
|
150
|
310
|
1''G
|
||
|
12
|
SC10000
|
7T-10T
|
35
|
10000
|
170
|
310
|
1''G
|
||
|
13
|
SC12000
|
8T-12T
|
35
|
12000
|
170
|
310
|
1''G
|
||
|
14
|

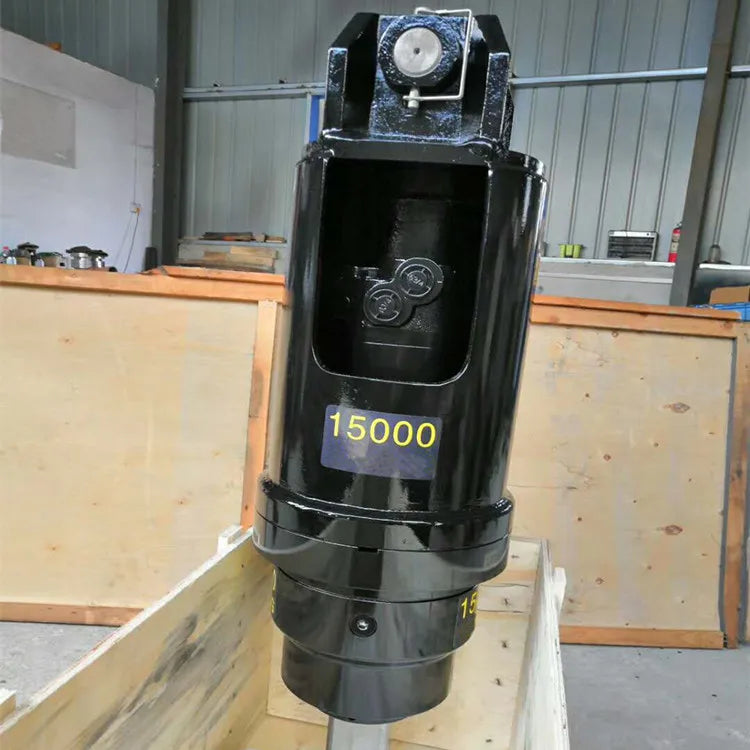

SC15000
|
13T-17T
|
30
|
15000
|
180
|
310
|
1''G
|
||
|
15
|
SC20000
|
15T-20T
|
30
|
20000
|
180
|
310
|
1''G
|
300-1100
|
|
|
16
|
SC25000
|
18T-22T
|
40
|
25000
|
250
|
310
|
1''G
|
||
|
17
|
SC30000
|
18T-25T
|
35
|
30000
|
250
|
310
|
110 Square
|
1''G
|
|
|
18
|
SC45000
|
20T-28T
|
32
|
45000
|
424
|
320
|
1''G
|
750-1500
|
|
|
19
|
SC50000
|
25T-35T
|
30
|
50000
|
424
|
320
|
1''G
|
||
|
20
|
SC70000
|
30T-40T
|
25
|
70000
|
424
|
320
|
1''G
|
||
|
21
|
SC100000
|
36T-50T
|
23
|
100000
|
625
|
320
|
1''G
|
||
|
22
|
SC380000
|
60T-100T
|
10
|
380000
|
1000
|
320
|
200 Square
|
1''G
|
914-1500
|
|
23
|
SC580000
|
100T-150T
|
6
|
580000
|
1000
|
320
|
1''G
|
Product Features
High speed motor
Three stage gear
Variaty of tips

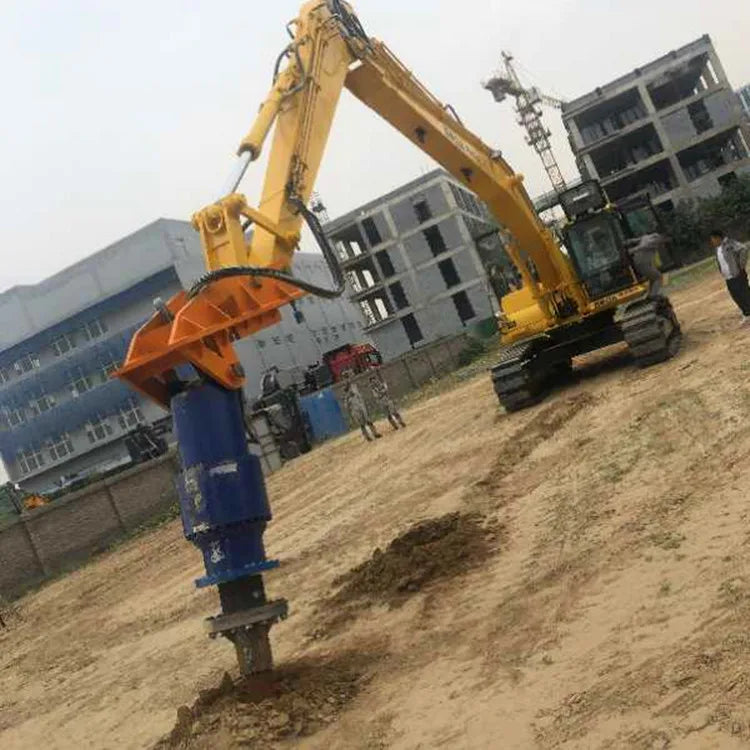

Successful Project
Packing
Verticality tester is available
FAQ
Q: HOW CAN I CHOOSE THE SUITABLE EARTH DRILL?
A:PLEASE REFER TO BELOW QUESTIONS:
1. Brand and model of Excavator/Backhoe/Skid Steer loader?
2. Diameter of hole to be drilled?
3. Depth of hole to be drilled?
4. Ground type to be drilled?
Once you have answered the above you can easily make the correct choice.
Q: DO I NEED TO PURCHASE SPARE PARTS WHEN ORDERING AN EARTH DRILL?
A: It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow
the service schedule as outlined in the operators manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q: CAN THE EARTH DRILL FIT A VARIETY OF MACHINES?
A: Yes, as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue.
Q: HOW DO I FIT THE EARTH DRILL TO MY MACHINE?

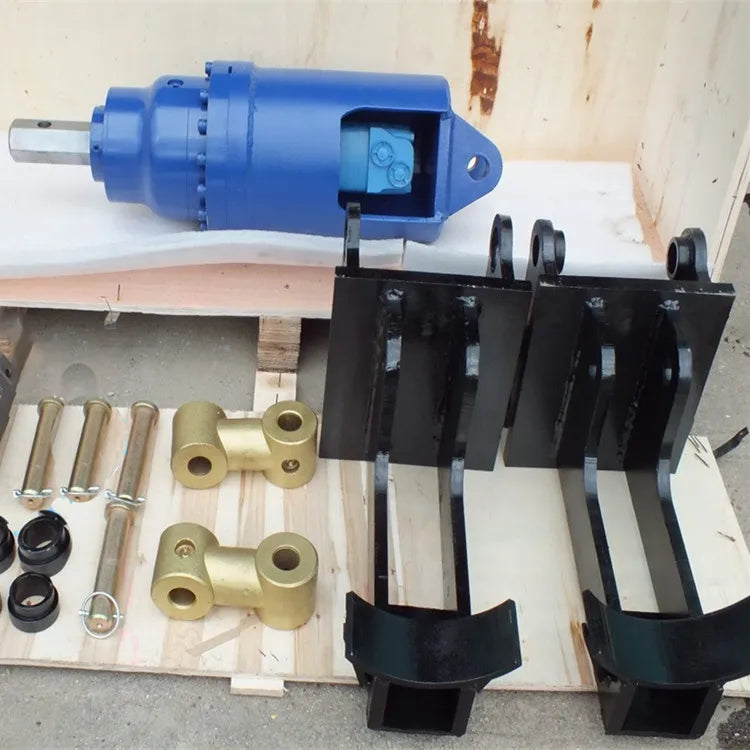

A: There are four types of mounting linkage available;
* Double Pin Hitch: to be used with excavators fitted with quick couplers.
* Double Pin Cradle hitch: also to be used with excavators fitted with quick hitch, in addition the Cradle hitch can be used to stabilise the Earth Drill whilst travelling around the site and also to aid in the clearing of spoil from the auger.
Q: WHAT CAN I DRILL?
A: There are 3 types of cutting teeth available,
1.Earth and Clay Teeth: Suitable for drilling earth and clay.
2.Tungsten Teeth: Suitable for drilling hard and abrasive ground.
3.Rock Teeth: Suitable for drilling soft, fractured, rock.
Q: HOW DEEP CAN I DRILL?
A: There are extensions available for every Earth Drill however maximum drilling depth depend on the following conditions;
* Diameter of hole to be drilled
* Depth of hole to be drilled
* Type of parent machine to be used
* Ground type to be drilled
A:PLEASE REFER TO BELOW QUESTIONS:
1. Brand and model of Excavator/Backhoe/Skid Steer loader?
2. Diameter of hole to be drilled?
3. Depth of hole to be drilled?
4. Ground type to be drilled?
Once you have answered the above you can easily make the correct choice.
Q: DO I NEED TO PURCHASE SPARE PARTS WHEN ORDERING AN EARTH DRILL?
A: It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow
the service schedule as outlined in the operators manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q: CAN THE EARTH DRILL FIT A VARIETY OF MACHINES?
A: Yes, as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue.
Q: HOW DO I FIT THE EARTH DRILL TO MY MACHINE?
A: There are four types of mounting linkage available;
* Double Pin Hitch: to be used with excavators fitted with quick couplers.
* Double Pin Cradle hitch: also to be used with excavators fitted with quick hitch, in addition the Cradle hitch can be used to stabilise the Earth Drill whilst travelling around the site and also to aid in the clearing of spoil from the auger.
Q: WHAT CAN I DRILL?
A: There are 3 types of cutting teeth available,
1.Earth and Clay Teeth: Suitable for drilling earth and clay.
2.Tungsten Teeth: Suitable for drilling hard and abrasive ground.
3.Rock Teeth: Suitable for drilling soft, fractured, rock.
Q: HOW DEEP CAN I DRILL?
A: There are extensions available for every Earth Drill however maximum drilling depth depend on the following conditions;
* Diameter of hole to be drilled
* Depth of hole to be drilled
* Type of parent machine to be used
* Ground type to be drilled
Q: What's the Warranty?
A:warranted for 2 years for the gearbox and 1 year for the motor.
A:warranted for 2 years for the gearbox and 1 year for the motor.
Q: Can you do OEM service?
A:Yes, We can provide professional OEM and ODM service, such as customize your own color, brand, package and so on.
A:Yes, We can provide professional OEM and ODM service, such as customize your own color, brand, package and so on.
