Product Overview
In order to achieve a more perfect flt
bonovo can customlze the size according to the needs of customers
bonovo can customlze the size according to the needs of customers

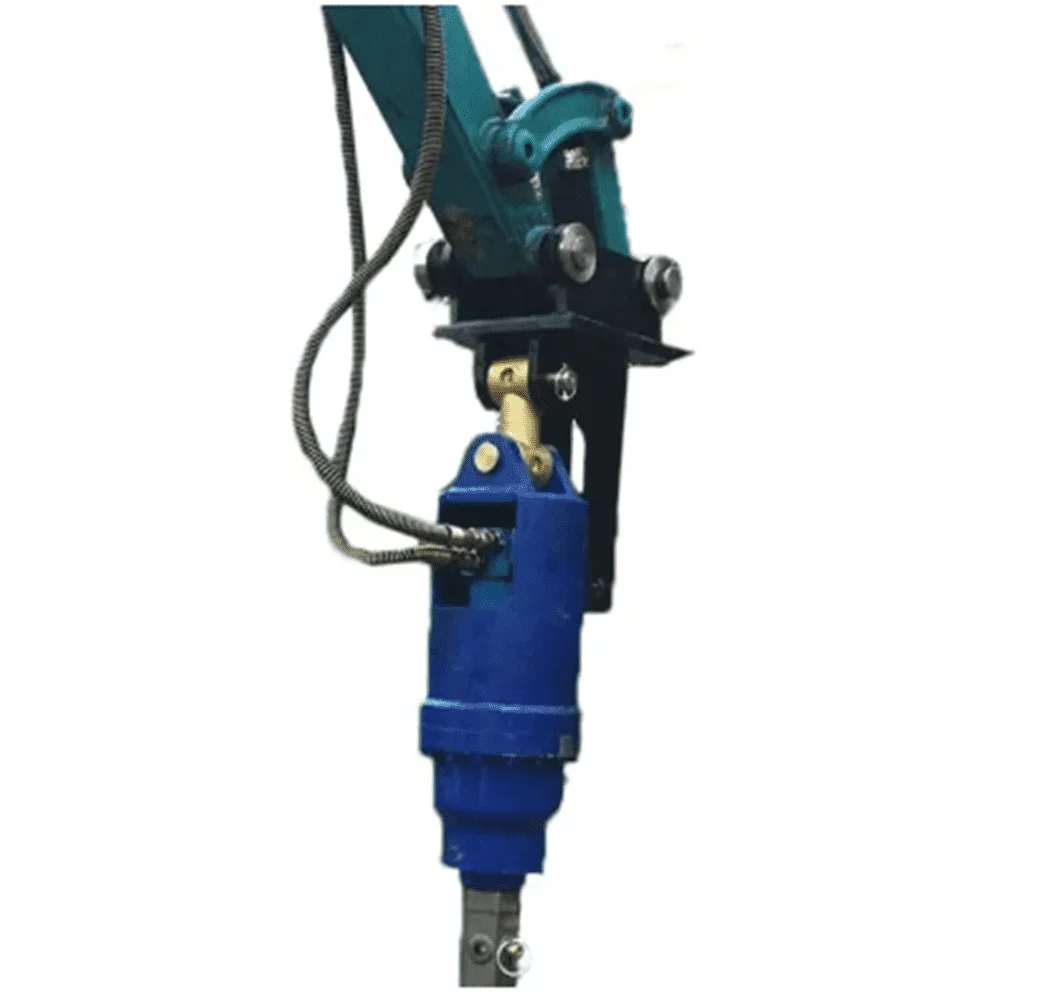

Earth auger is a new type of high-efficiency construction machine installed at the front end of excavators, skid steer loaders,cranes, backhoe loader, and other construction machinery. Equipped with an Eaton motor and a self-made precision gearbox,
the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.In order to achieve a more perfect flt, it can customize the size according to the needs of customers.
the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.In order to achieve a more perfect flt, it can customize the size according to the needs of customers.
auger is a new type of high-efficiency construction machine installed at the front end of excavators, skid steer loaders,cranes, backhoe loader, and other construction machinery. Equipped with an Eaton motor and a self-made precision gearbox, the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.
PRODUCT SPECIFICATIONS
|
Model
|
unit in
|
SH-25
|
SH-45
|
SH-70
|
SH-100
|
SH-150
|
SH-200
|
|
Tonnage
|
T
|
1-3
|
4-5
|
6-8
|
8-12
|
13-18
|
19-25
|
|
Max torque
|
N.m
|
2432
|
4499
|
5910
|
8152
|
15046
|
24949
|
|
Pressure
|
Bar
|
205
|
240
|
240
|
240
|
240
|
240
|
|
Flow
|
l/min
|
30-61
|
38-76
|
45-83
|
61-136
|
80-170
|
80-170
|
|
Speed
|
Rpm
|
40-82
|
32-64
|
28-50
|
29-64
|
20-43
|
12-26
|
|
Oil tube
|
Inch
|
1/2
|
1/2
|
1/2
|
3/4
|
1
|
1
|
|
Link diameter
|
mm
|
φ65
|
φ65
|
φ75
|
φ75
|
φ75
|
φ75
|
|
Motor weight
|
Kg
|
54
|
71
|
108
|
115
|
167
|
270
|
|
Motor Height
|
mm
|
595
|
700
|
780
|
850
|
930
|
1150
|
|
Motor diameter
|
mm
|
200
|
244
|
269
|
269
|
290
|
345
|
|
Link ears
|
\
|
anti-sway biaxial
|
anti-sway biaxial
|
anti-sway biaxial
|
anti-sway biaxial
|
anti-sway biaxial
|
anti-sway biaxial
|
|
Bar model
|
mm
|
S4
|
S4
|
S5
|
S5
|
S6
|
S6
|
|
Length
|
mm
|
1200
|
1200
|
1500
|
1500
|
1750
|
1750
|
|
Diameter
|
mm
|
100-500
|
100-900
|
150-900
|
150-900
|
150-1200
|
150-1200
|
