Factory price diesel mine drilling rig Hengwang borehole drilling rig machine blasting drilling machine
Product Description

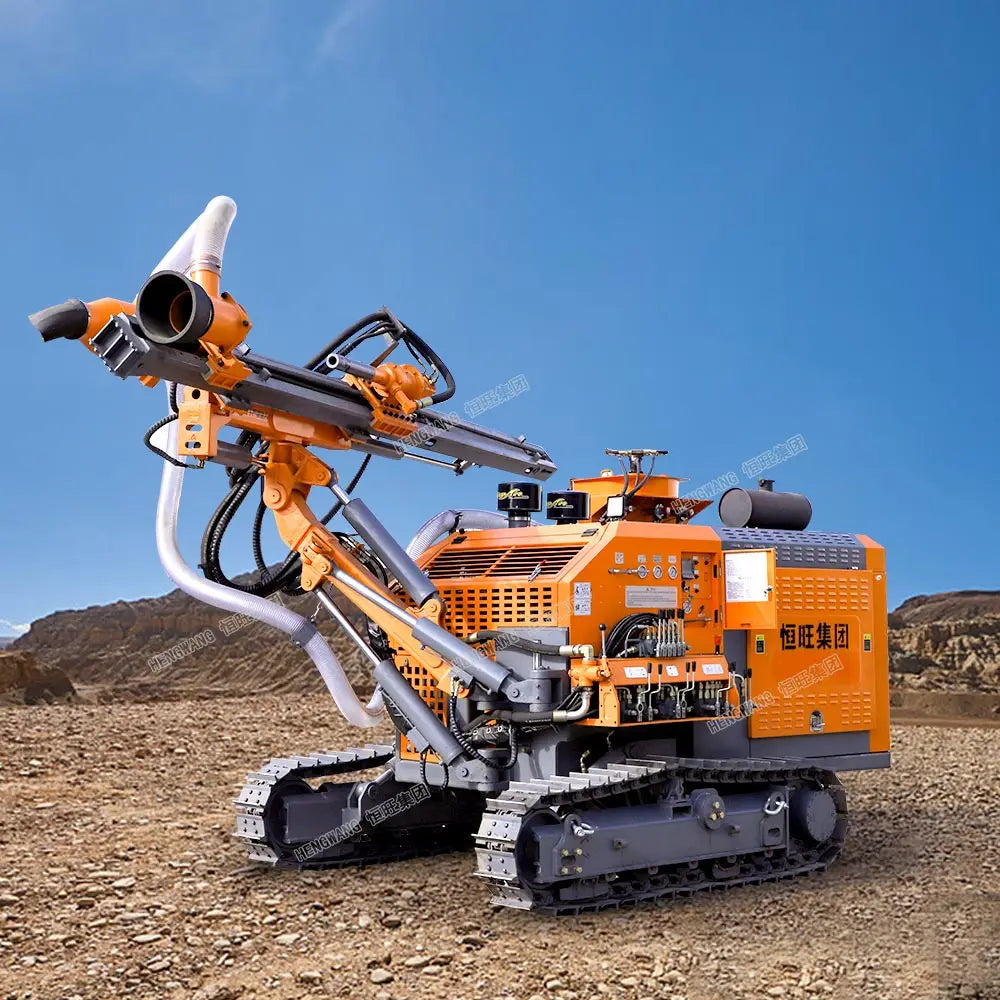

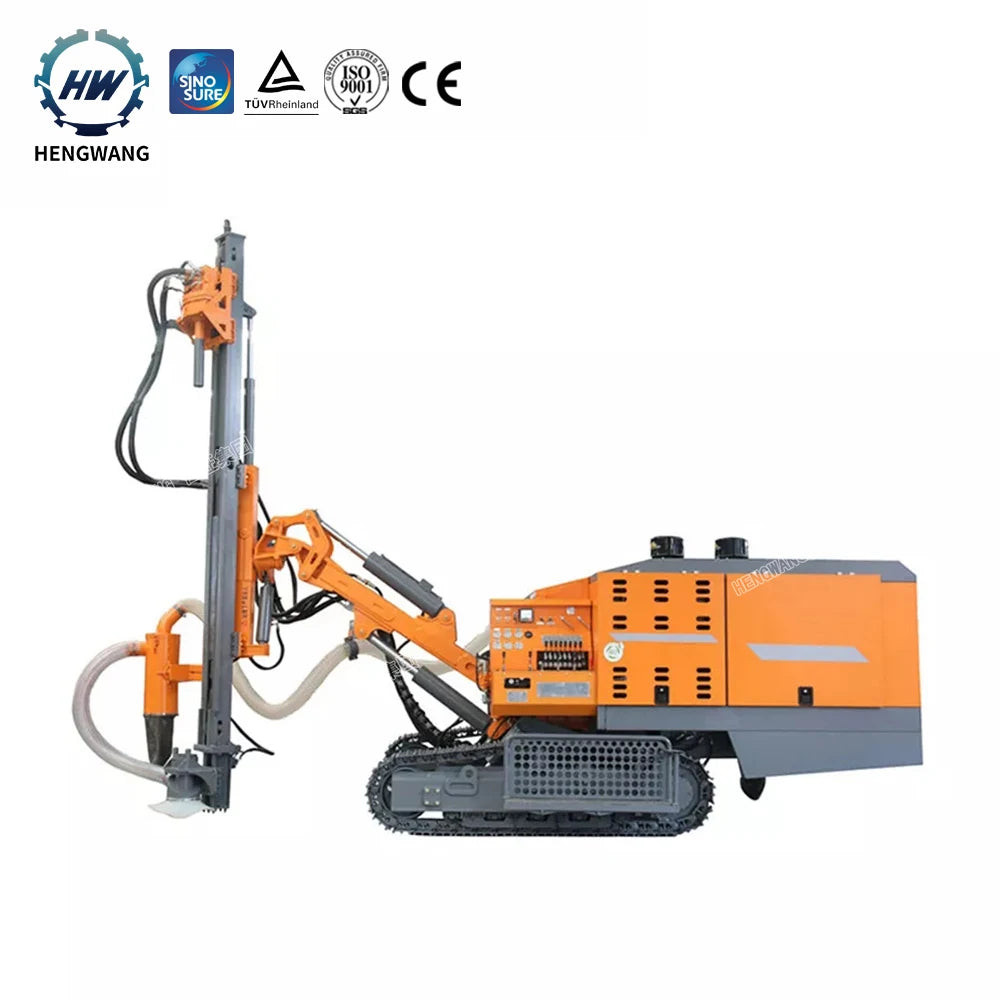

HW938 Integrated DTH Surface Drill Rig
* Equipped with Yuchai YC6A260L-T20 power pack 16 /17 Air compressor hole size。90 一 138 mm and with dry dust collector.
* HW938 Integrated DTH Surface drill rig with single power pack (only one diesel engine) to drive both screw air compressor and hydraulic system, compared with separated drill rigs, the fuel consumption reduced by 35% and maintenance cost down by 50%.
* With global famous brand key hydraulic components, reliable for low maintenance cost.
* Powerful two-speed hydraulic tramming mechanism with excellent off-road performance .Bigger and stronger designed rotation unit for smooth high torque output and less drill tool jamming.
* Equipped with Yuchai YC6A260L-T20 power pack 16 /17 Air compressor hole size。90 一 138 mm and with dry dust collector.
* HW938 Integrated DTH Surface drill rig with single power pack (only one diesel engine) to drive both screw air compressor and hydraulic system, compared with separated drill rigs, the fuel consumption reduced by 35% and maintenance cost down by 50%.
* With global famous brand key hydraulic components, reliable for low maintenance cost.
* Powerful two-speed hydraulic tramming mechanism with excellent off-road performance .Bigger and stronger designed rotation unit for smooth high torque output and less drill tool jamming.
* Two stage dry dust collector for friendly environment and higher production efficiency. Integrated design (air compressor on board) for better long-distance fleet management.
Technical Parameter
|
Main technical specifications
|
||
|
Power
|
Yuchai YC6A260L 191kW
|
|
|
Drill Pile Sizes
|
76 mmX3000 mm
|
|
|
Hole Dia
|
90-138mm
|
|
|
DTH Hammer
|
4"
|
|
|
Rotation Torque (Max.)
|
2500N.m
|
|
|
Rotation Speed
|
0-100 rpm
|
|
|
Working Pressure
|
17 bar
|
|
|
F.A.D
|
16 m3/min
|
|
|
Tramming Speed (Max.)
|
3 km/h
|
|
|
Gradeability
|
25°
|
|
|
Track Frame Oscilation
|
±10°
|
|
|
Total Weight
|
9,310 kg
|
|
|
Transportation Dimensions
|
7,550X2,500X3,060 mm
|
|
|
Dry Dust Collector
|
Standard
|
|
|
Dual Speed Walking Motor
|
Standard
|
|
Factory price diesel mine drilling rig Hengwang borehole drilling rig machine blasting drilling machine

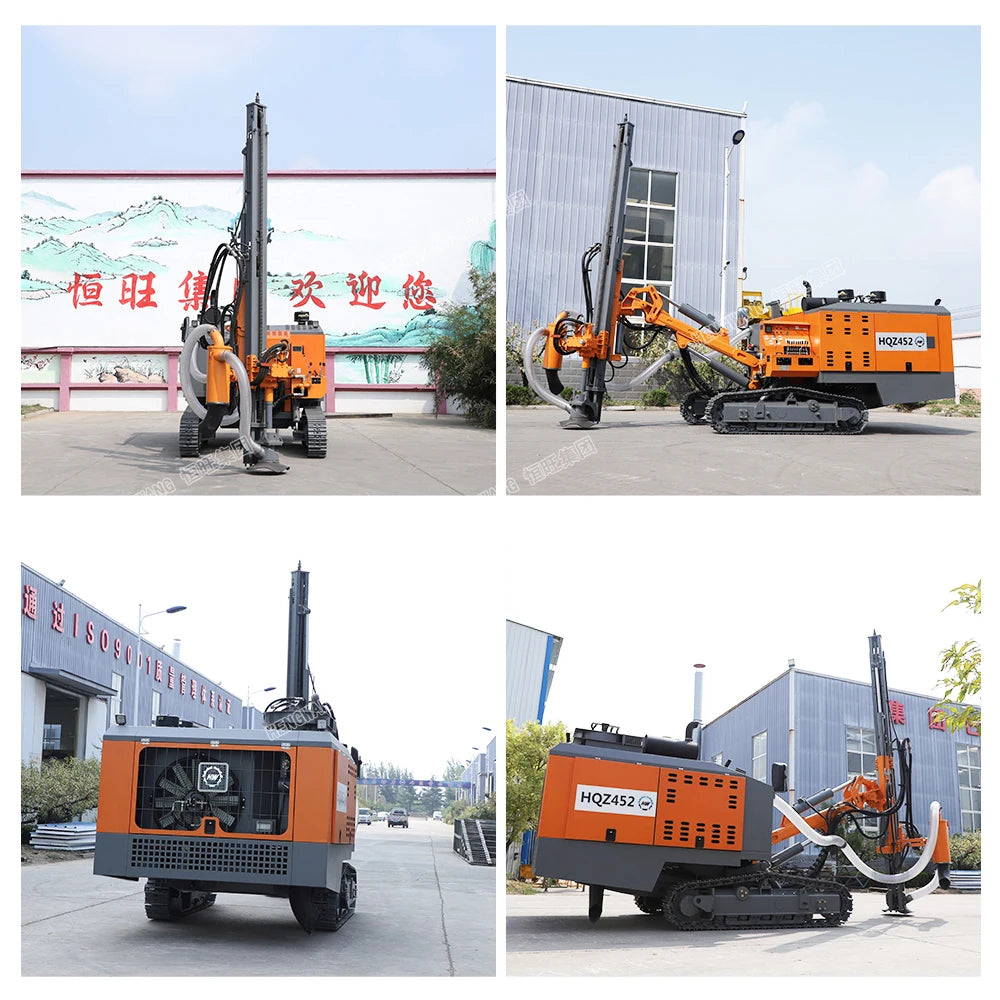

Details Images

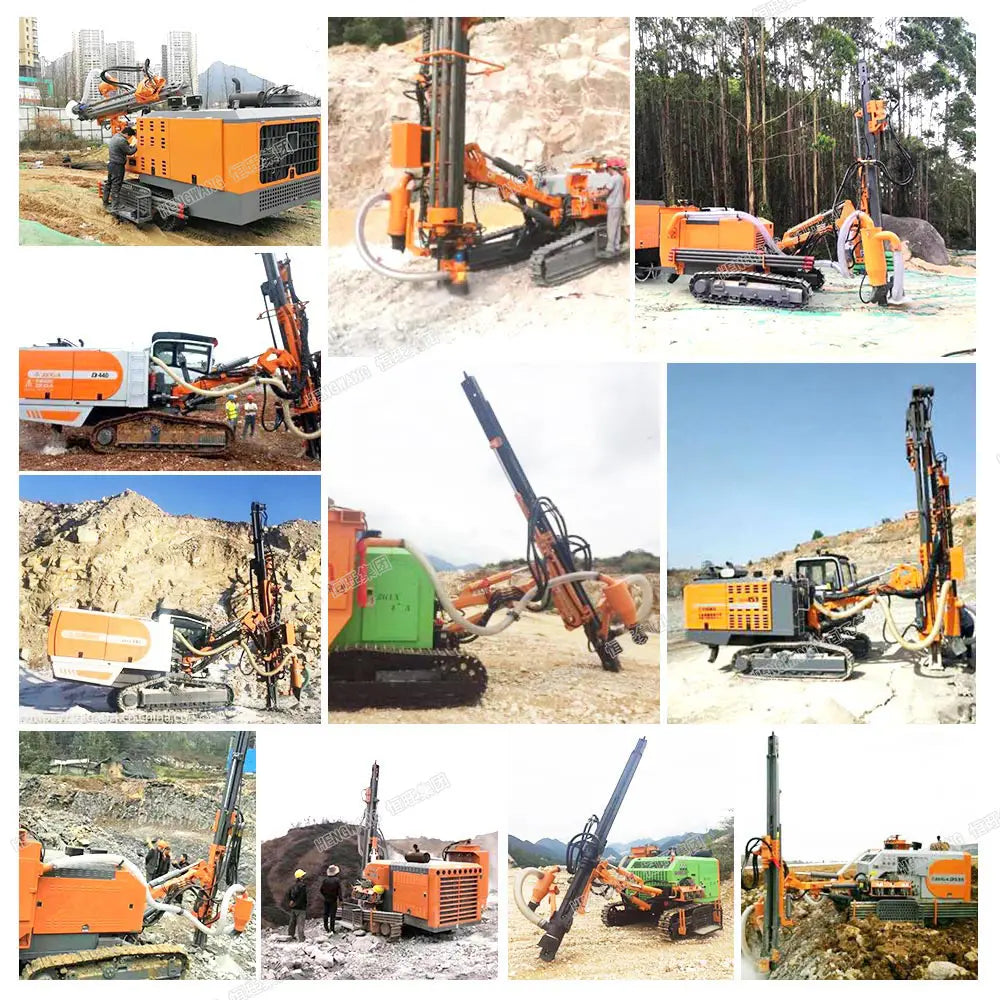

Customer Feedback

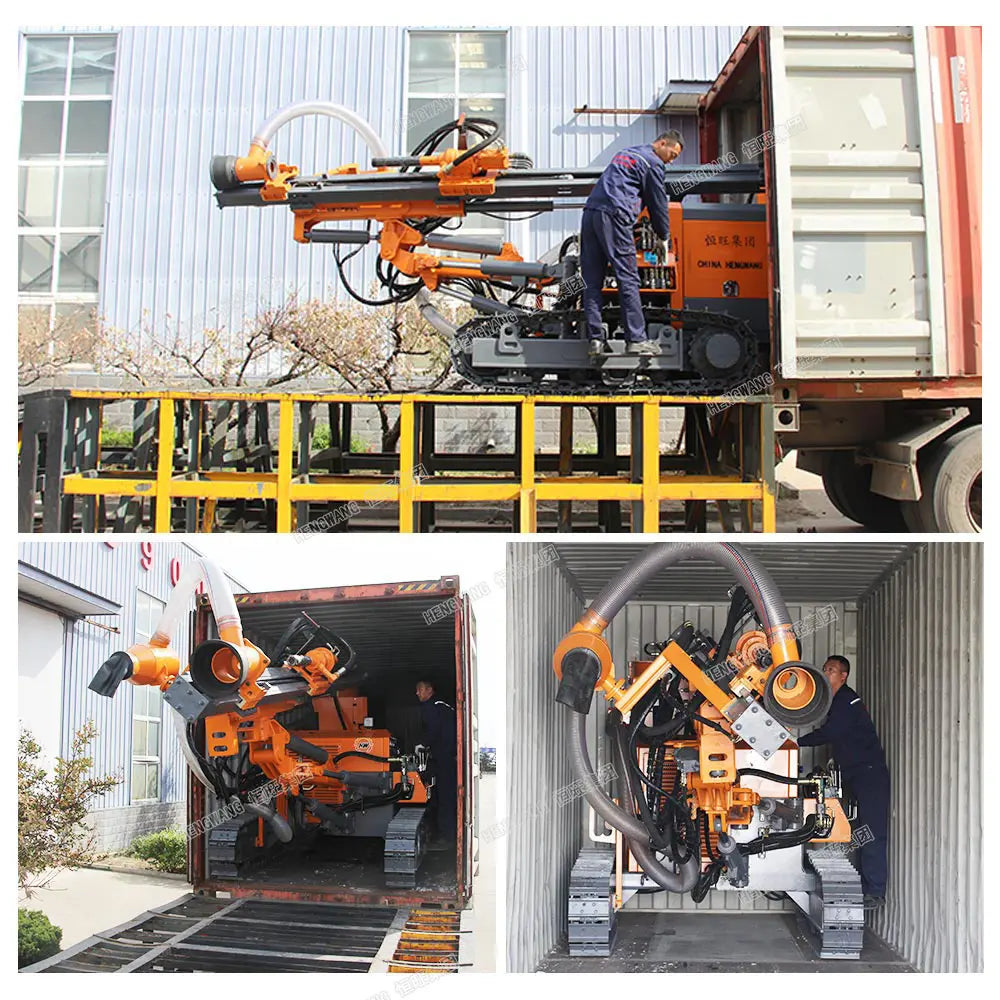

Packaging&Shipping

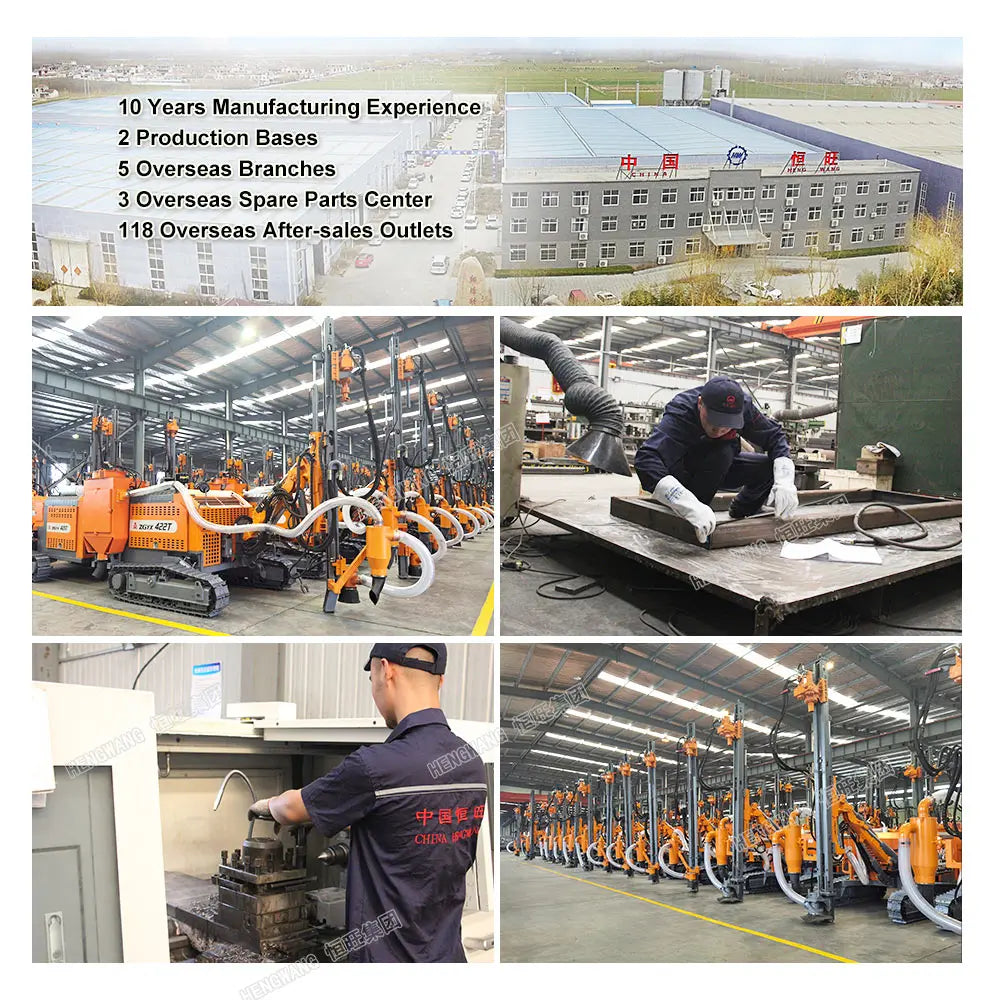

Company Profile
