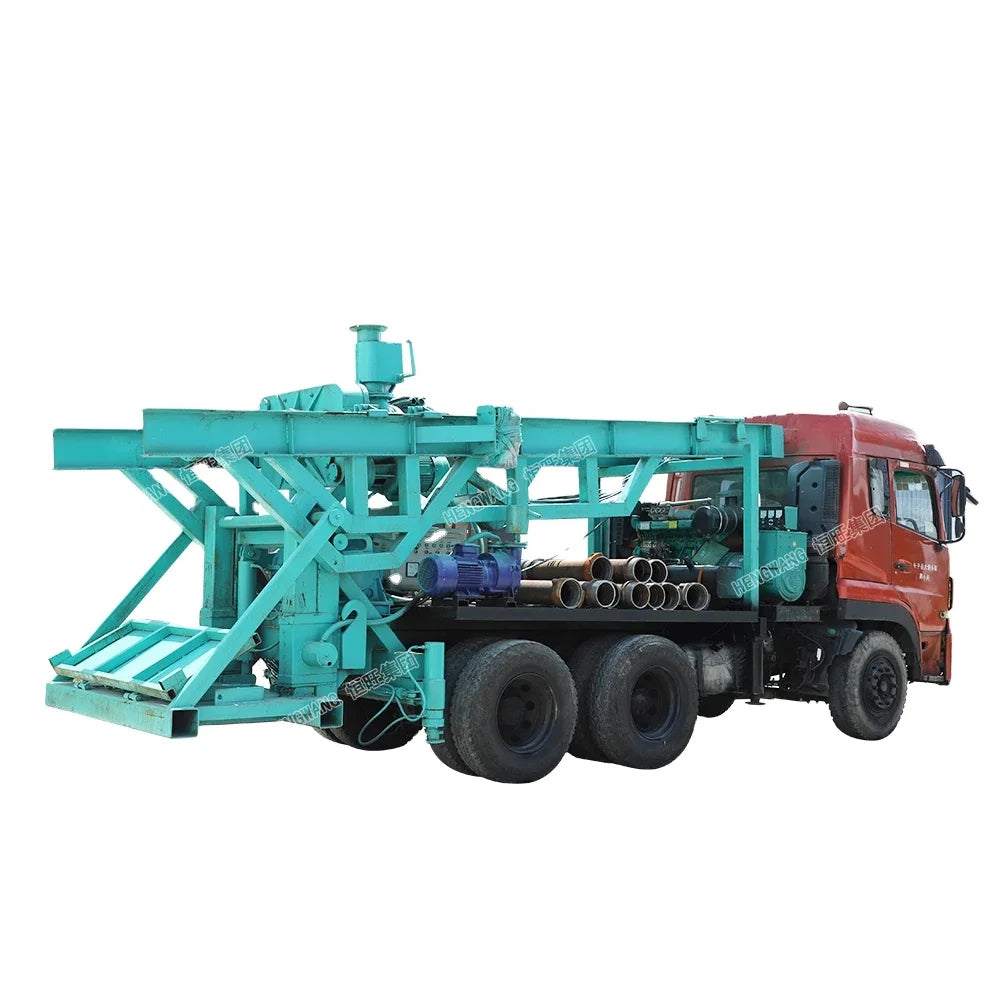

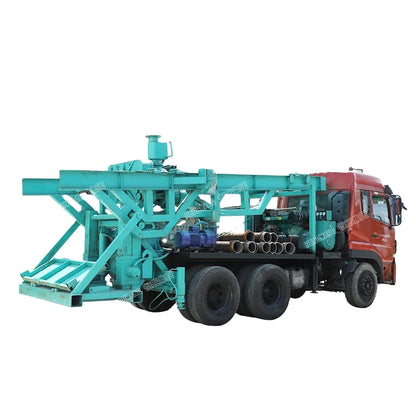

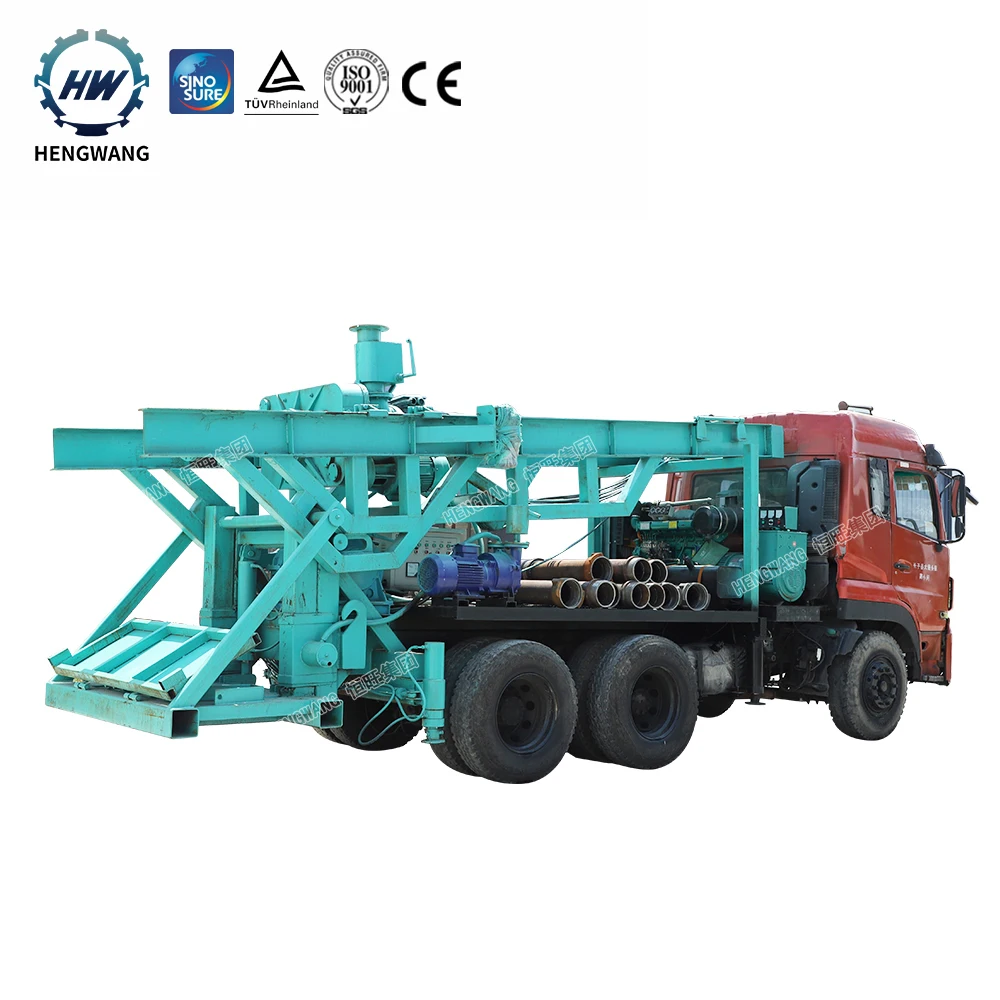

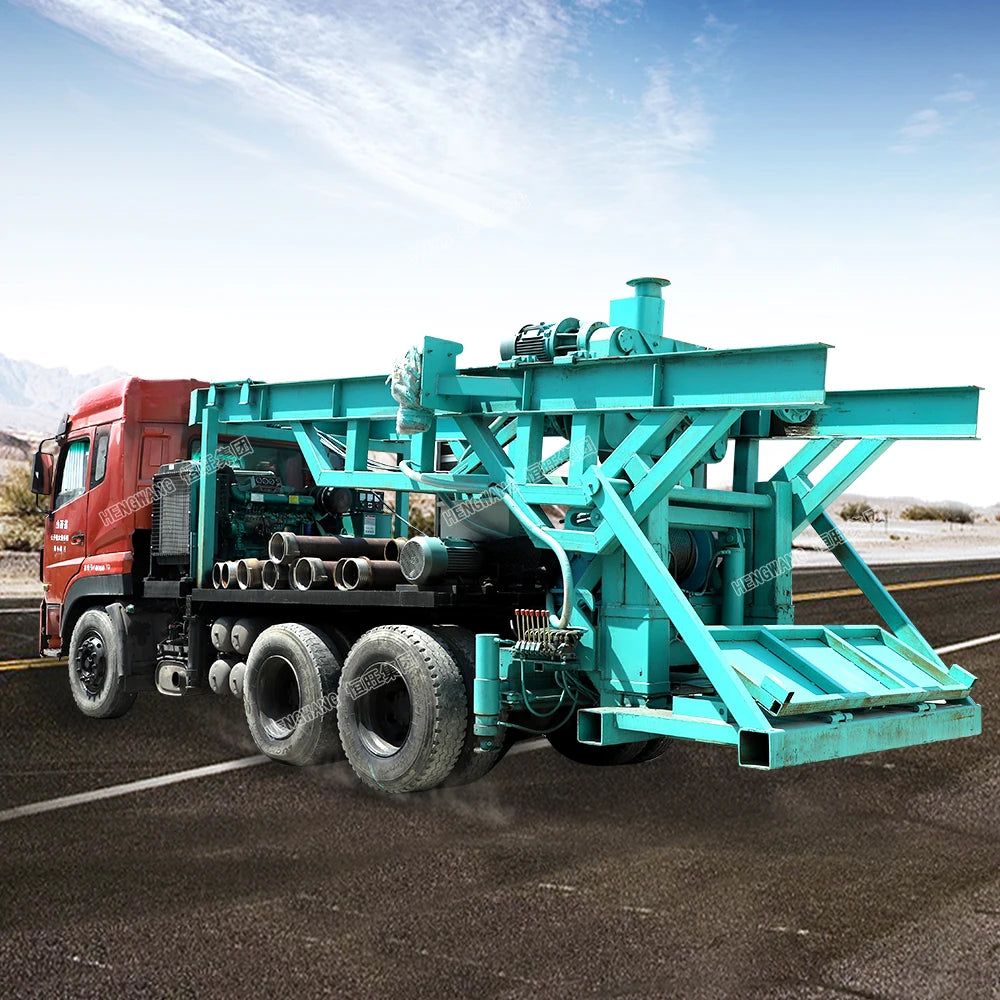

Hengwang HF150 blast hole truck drilling rig machine for sale
Hengwang HF150 blast hole truck drilling rig machine for sale
Regular price
₱29,000.00 PHP
Regular price
₱29,000.00 PHP
Sale price
₱29,000.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description

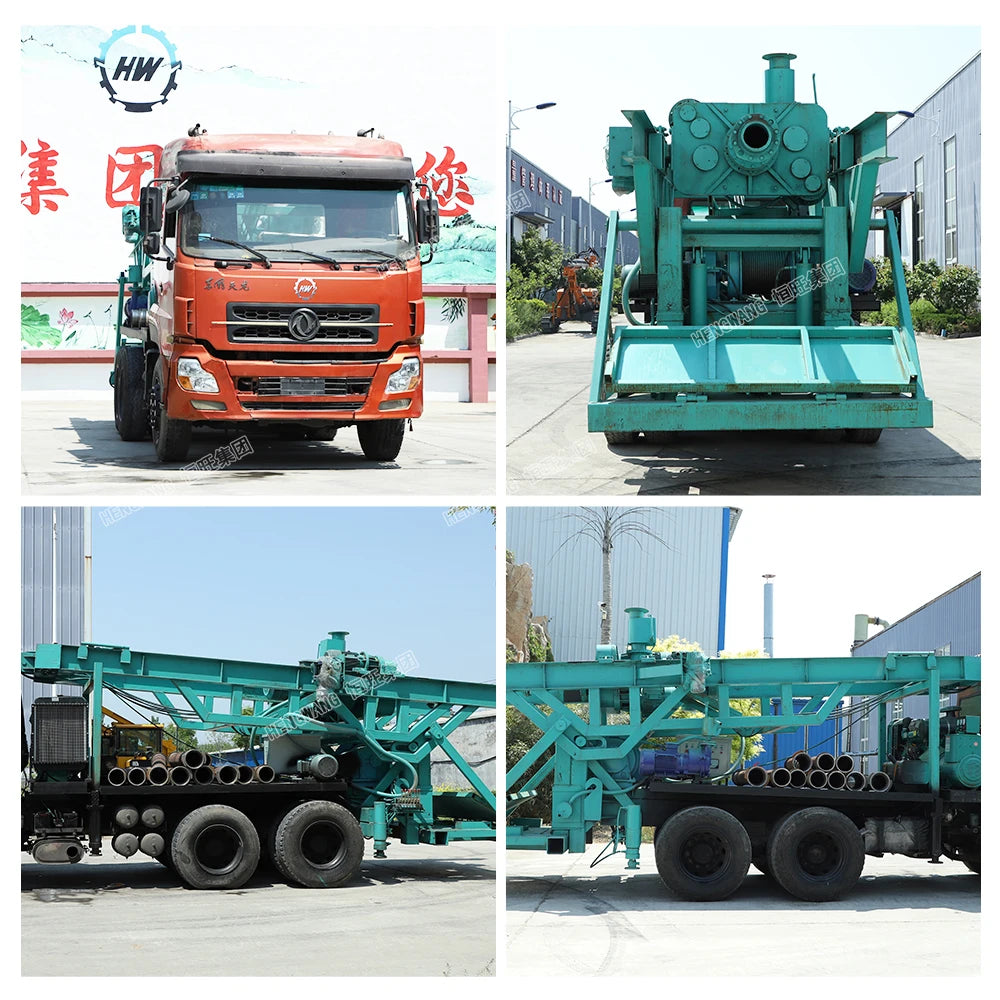

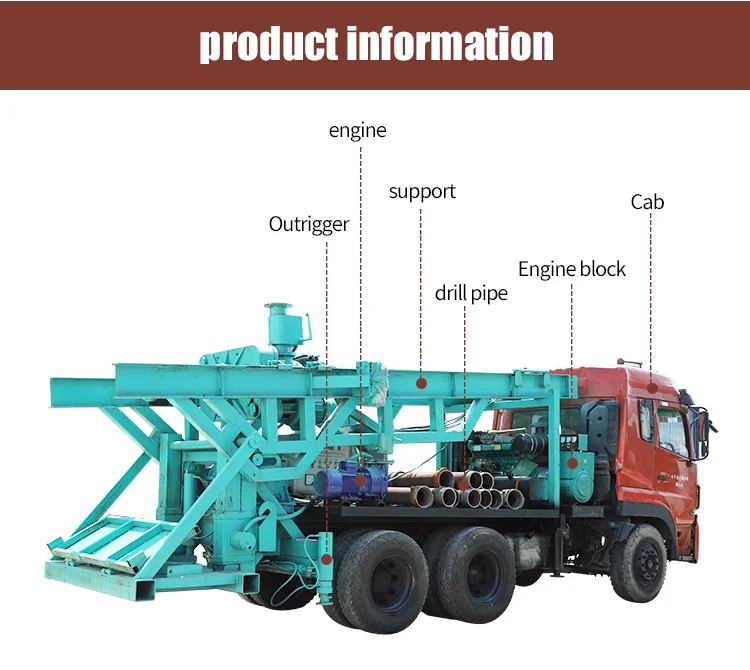

HF-150 Reverse Circulation Rig
Drill Diameter: 350-1800mm
Drill Depth: 180m
Rated Power: 50Kw

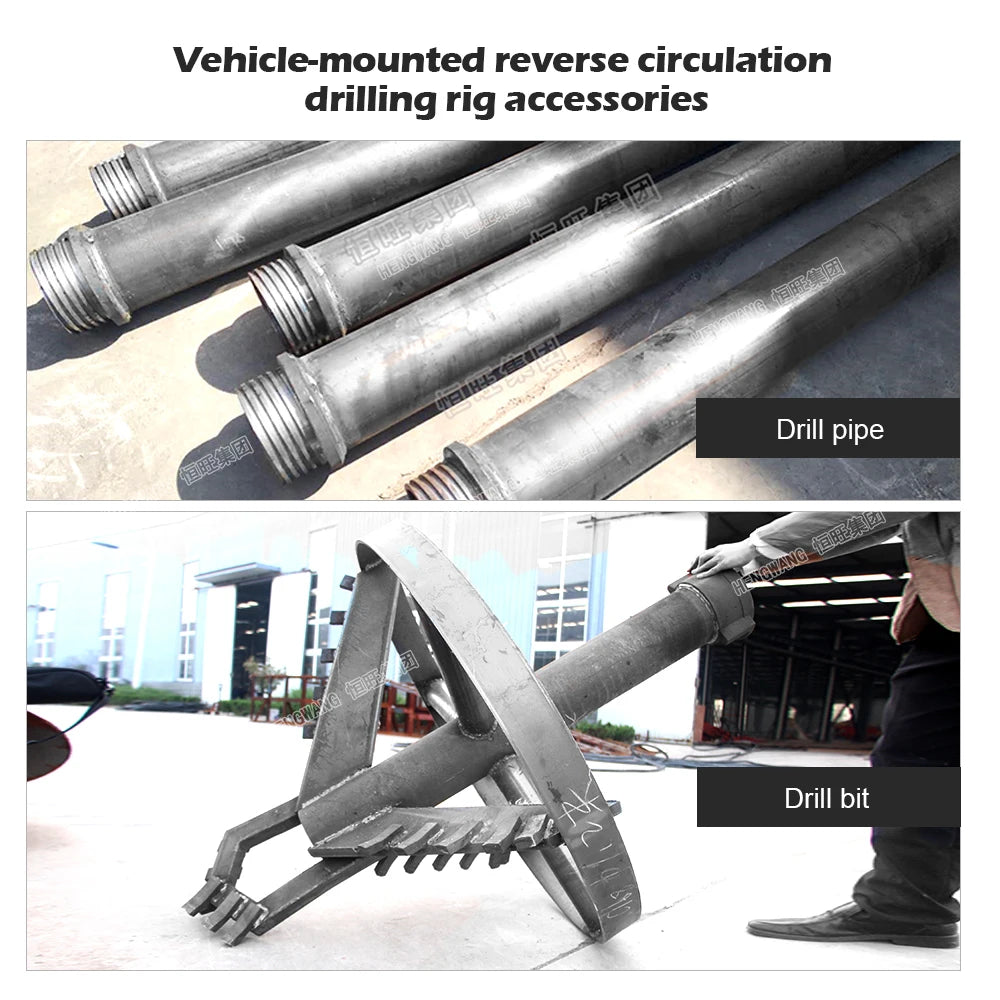

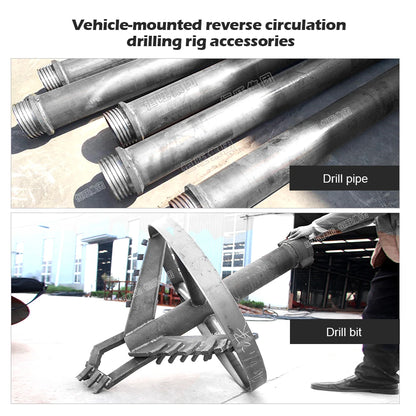

The impact frequency of reverse circulation rig is 40 times /min, the main and the auxiliary hoisting capacity is 30kN, the motor power is 45kW, not include 6BS pump. The weight of the shot bit is 4T,and it equipped with overall cast-iron,has impact resistance, stronger impact force, high drilling efficiency,used for drilling hole diameter 800-1500mm.The main and the auxiliary hoisting capacity of reverse circulation rig is 50kN, maximum drilling hole diameter is 2.0m and drilling hole depth is 80m,lifting stroke of hoist is 1.5-3.0m,main power is 75kW.The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement.In addition to the impact of the drill tip wear-resistant materials, the remaining 50mm welded steel plate,can also be equipped with a variety of specifications drill.It is suitable for complex foundation engineering construction, such as soil layer,cemented gravel and rock socketed,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.
Specification
|
Model
|
HF-150
|
||
|
Drill hole depth（m）
|
≤180
|
||
|
The hole diameter（mm）
|
350-1800
|
||
|
Spindle speed（r/min）
|
11
|
||
|
Spindle power（kw）
|
11
|
||
|
The spindle torque(N•m)
|
12000
|
||
|
Hoist lifting force（kg）
|
3000×6
|
||
|
Mud pump
|
Traffic（m³/h）
|
300
|
|
|
Power（kw）
|
22
|
||
|
Generating set
|
The rated voltage（V）
|
380
|
|
|
Rated current（A）
|
90
|
||
|
Rated speed（r/min）
|
1500
|
||
|
Rated power（kw）
|
50
|
||
|
Main power supporting power
|
4105-6105 Diesel
|
||
|
Overall dimensions（L x W x H）（mm）
|
9200×2500×3500
|
||
|
Single weight（kg）
|
12000
|
||
Hot sale!!!
|
Model
|
HF-200
|
|
Drill hole depth（m）
|
220
|
|
The hole diameter（mm）
|
450-2000
|
|
Rated Power(Kw)
|
50
|
|
Single weight（kg）
|
12500
|
|
Model
|
HF-250
|
|
Drill hole depth（m）
|
300m
|
|
The hole diameter（mm）
|
550-2500mm
|
|
Rated Power(Kw)
|
50
|
|
Single weight（kg）
|
12000
|
|
Model
|
HF400
|
|
|
Drill hole depth（m）
|
400
|
|
|
The hole diameter（mm）
|
500-3000
|
|
|
Rated Power(Kw)
|
150
|
|
|
Single weight（kg）
|
26000
|
|

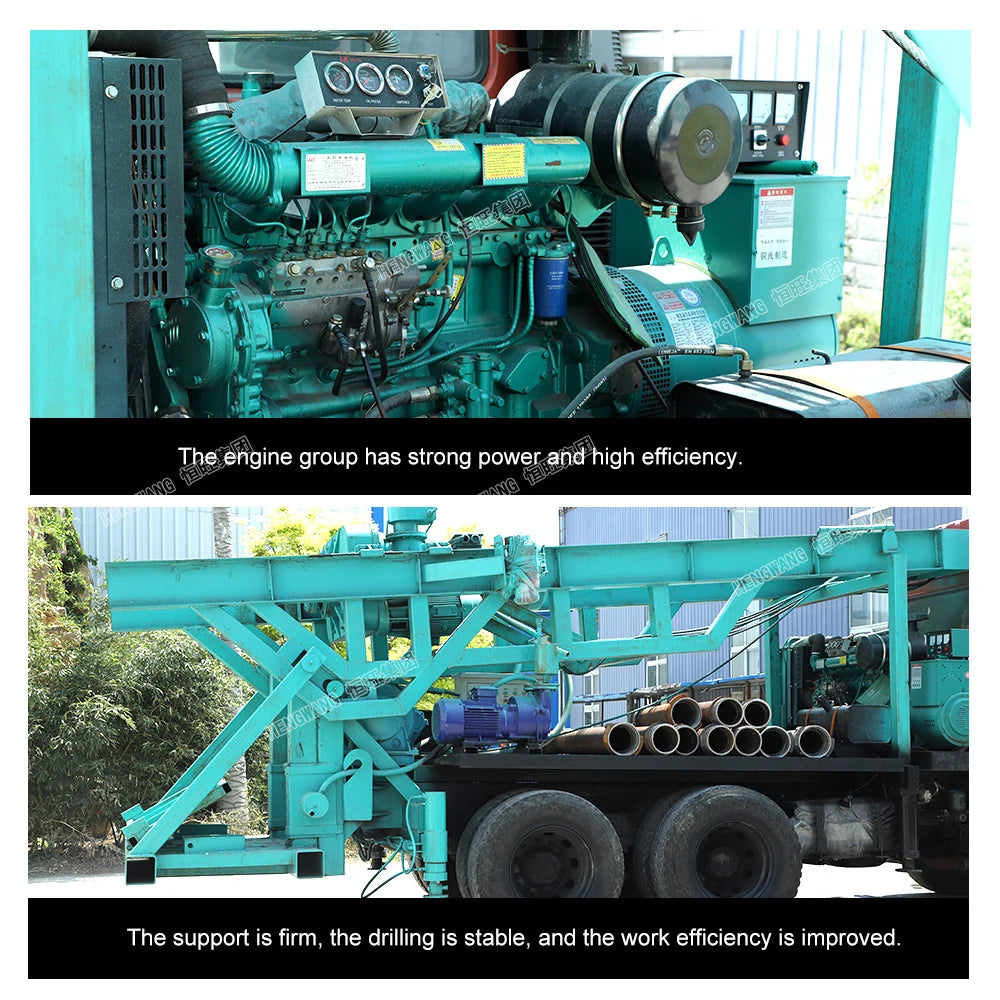

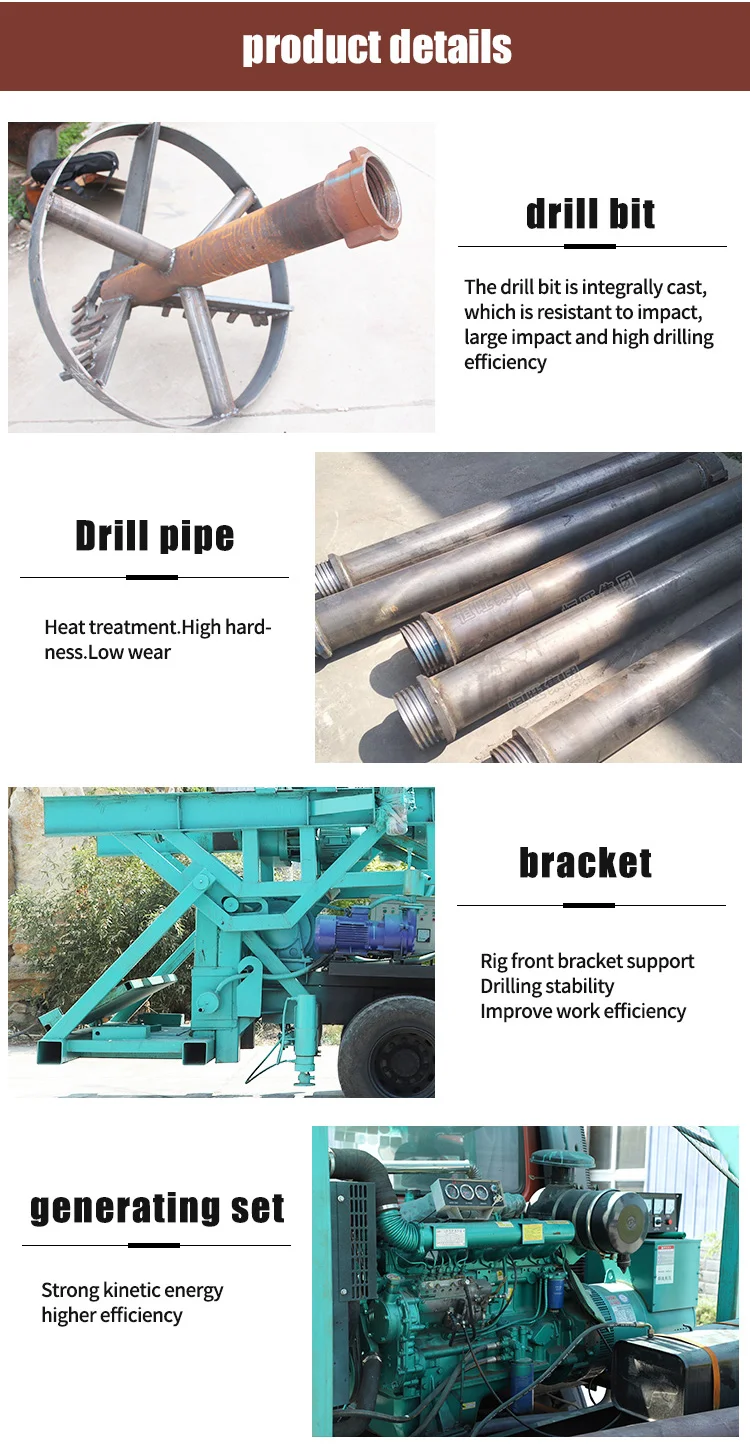

Product analysis

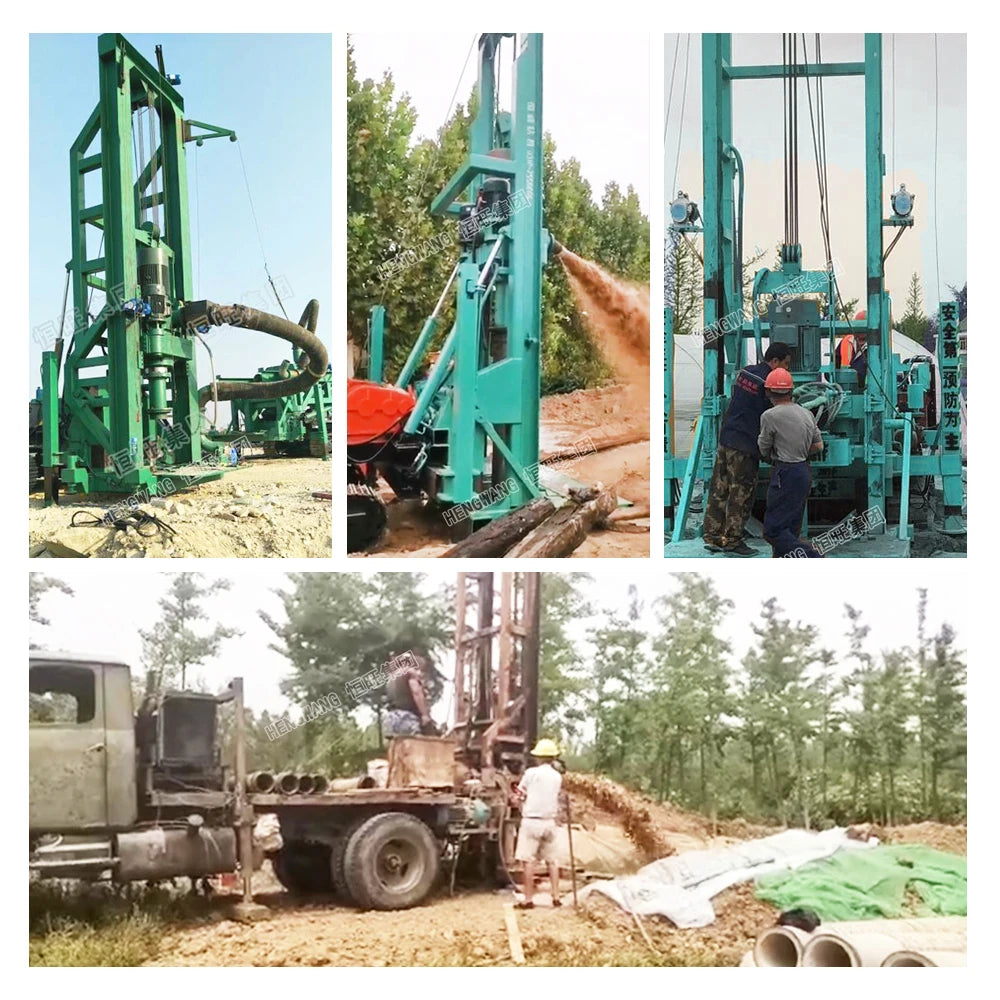

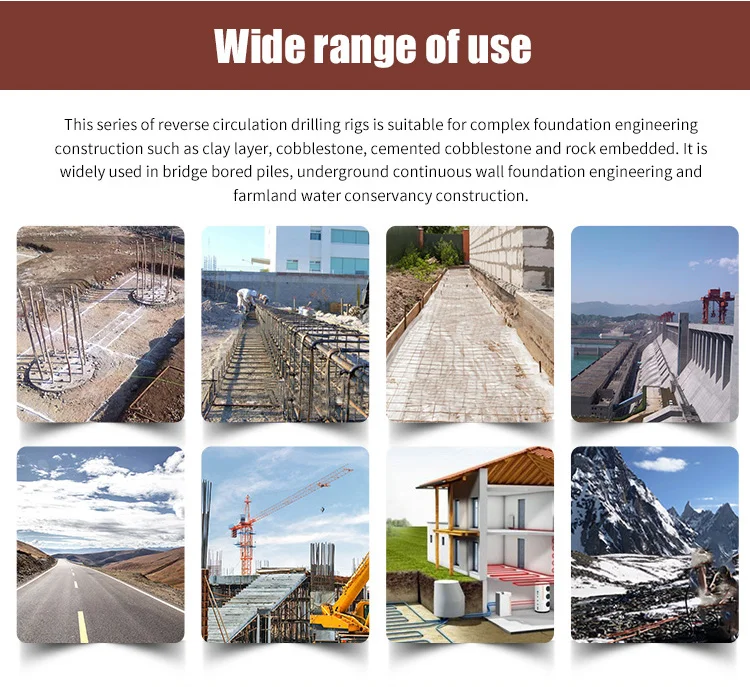

Product Usage
General application, any special requirements, please consult us.
Company Profile
FAQ
1. Q: Are you factory or trader?
A: We are factory, has passed ISO, contact me showing you the factory;
2. Q: What certificate you have?
A: CE, ISO, BV, TUV
3. Q: Do you offer training?
A: Each model we have supplementary instruction manual, video for installation and operation, calling instruction, and working site instruction.
4. Q: How about the warranty?
A: We machine warranty is 1 year, used famous brand parts help you find locally; Also 3 spare parts center guarantee you get the spare parts in time.
