High Productivity PE Plastic Air Bubble Roll Wrap Sheet Production Line
High Productivity PE Plastic Air Bubble Roll Wrap Sheet Production Line
Regular price
₱598,000.00 PHP
Regular price
₱598,000.00 PHP
Sale price
₱598,000.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Introduce:
●This multi-layer machine can produce 2 layers air bubble film, 3 layers two-side-flat air bubble film, 3 layers laminated, 4 layers laminated, and 5 layers laminated air bubble film. ●As for the lamination material, it includes PE coated aluminum foil, PE coated Kraft peper, PE film, PE foam, PE coated anti-static film, PE coated non-waven fabric and other PE coated materials to air bubble film.
Specification
|
Film width(mm)
|
1200
|
1600
|
2000
|
2600
|
3000
|
|
Layers
|
3/4/5
|
3/4/5
|
3/4/5
|
3/4/5
|
3/4/5
|
|
Line speed(m/h)
|
600-2100
|
600-2100
|
600-2100
|
600-2100
|
600-2100
|
|
Capacity(kg/h)
|
85-140
|
100-170
|
125-200
|
145-220
|
180-260
|
|
GSM(g/m2)
|
38-300
|
38-300
|
40-300
|
45-300
|
45-300
|
|
Screw Diameter(mm)
|
Φ65x2
|
Φ65x2
|
Φ75x2
|
Φ80x2
|
Φ90x2
|
|
Sub screw Diameter(mm)
|
Φ50
|
Φ50
|
Φ65
|
Φ75
|
Φ80
|
|
Power(kw)
|
40-82
|
51-104
|
66-136
|
75-155
|
85-180
|

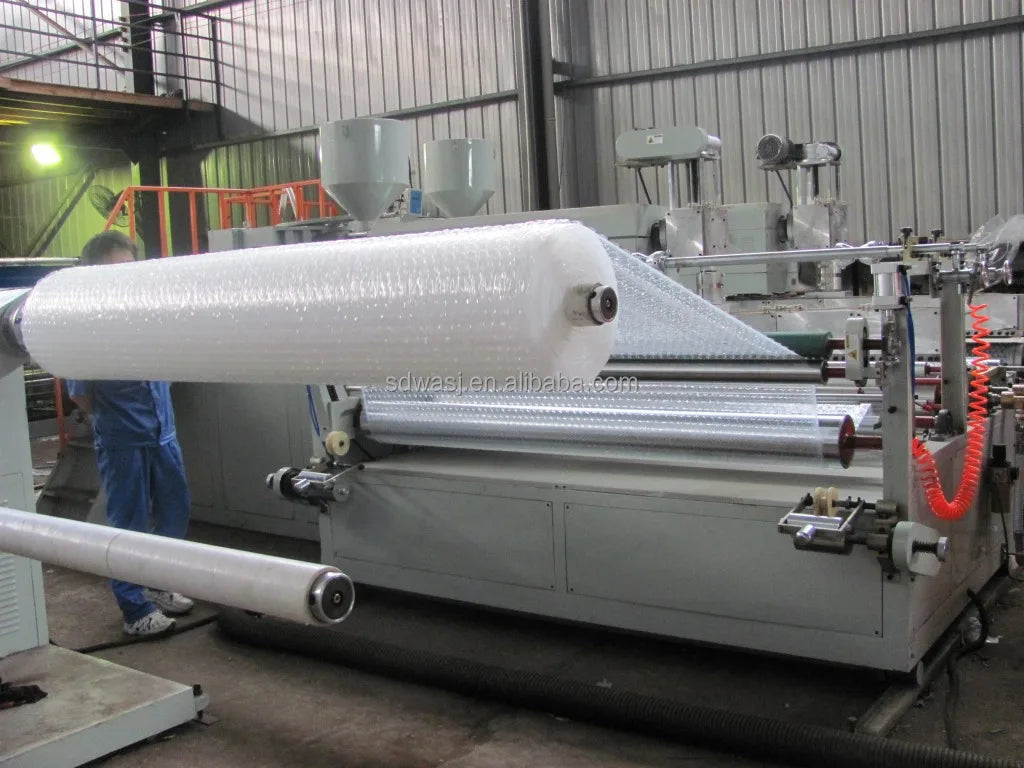

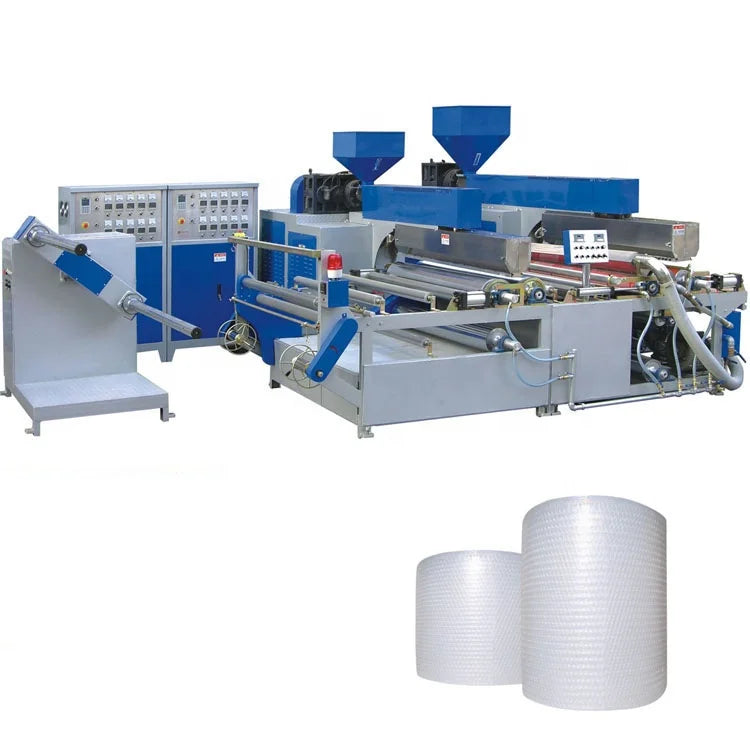

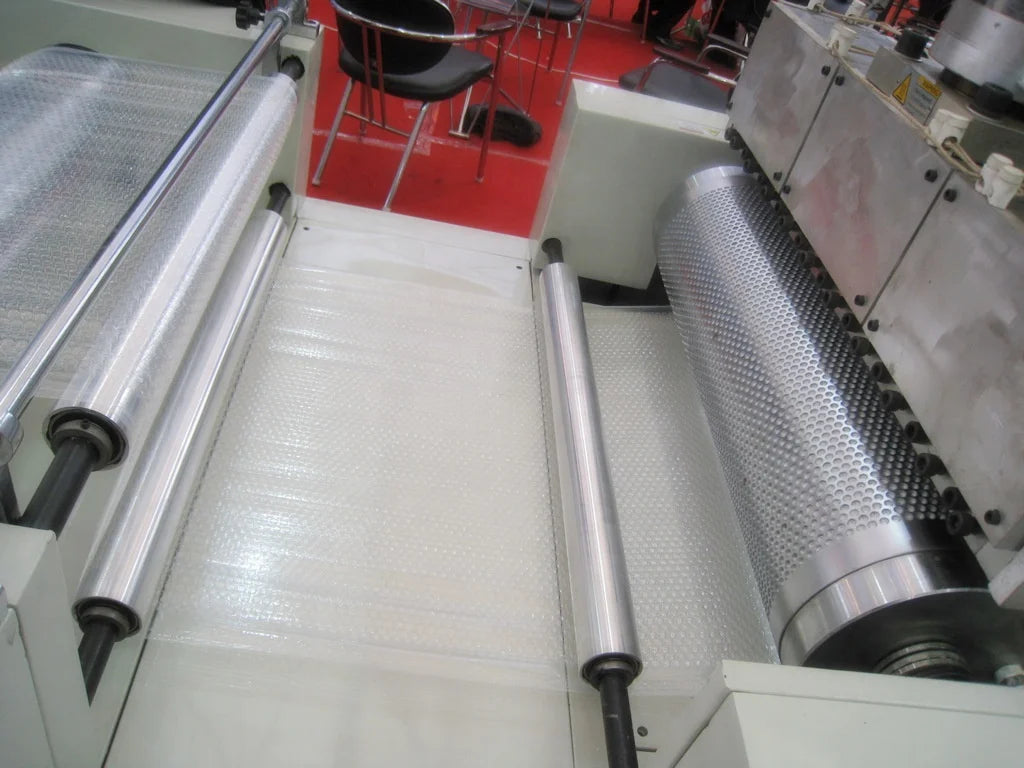

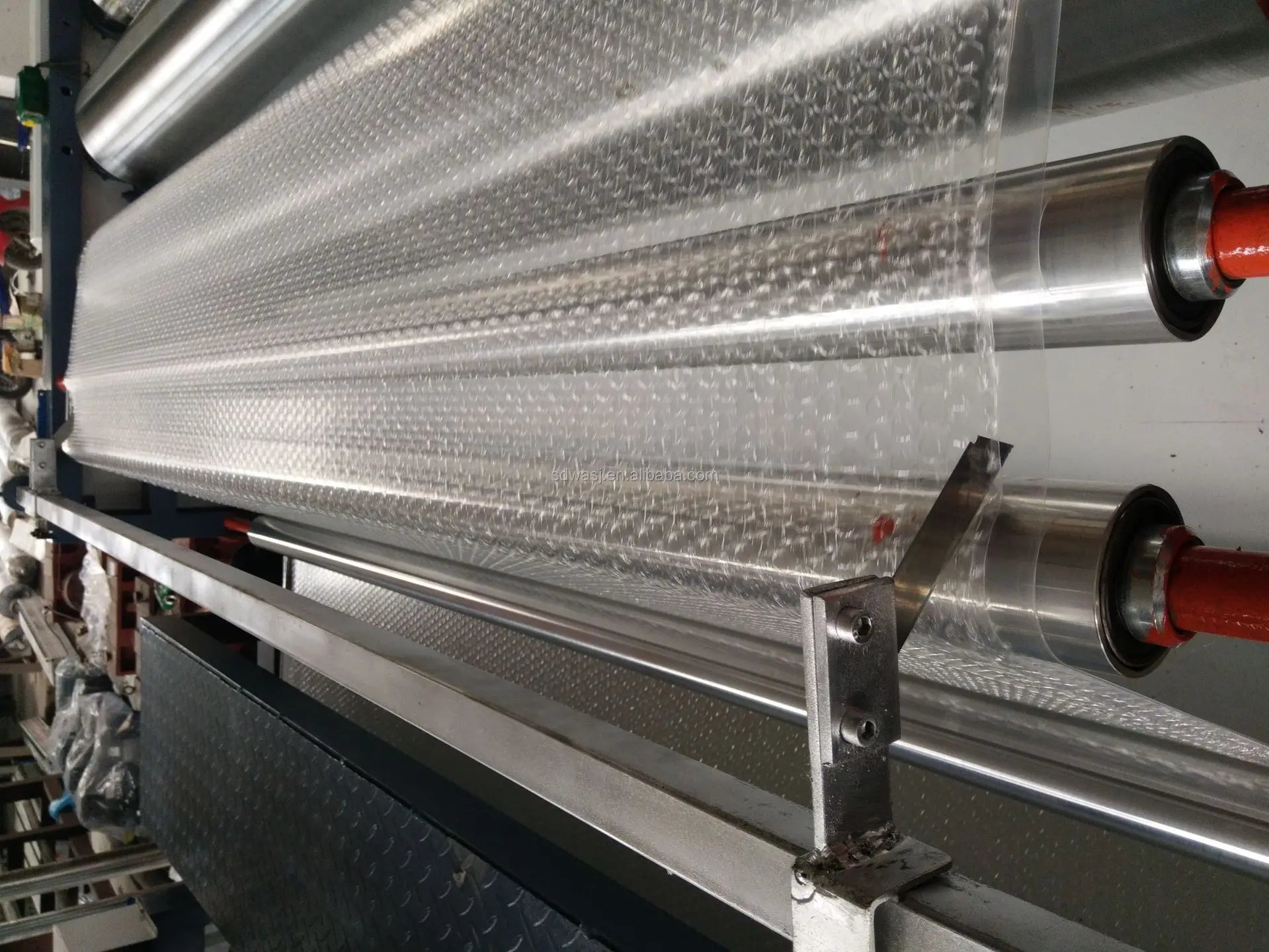

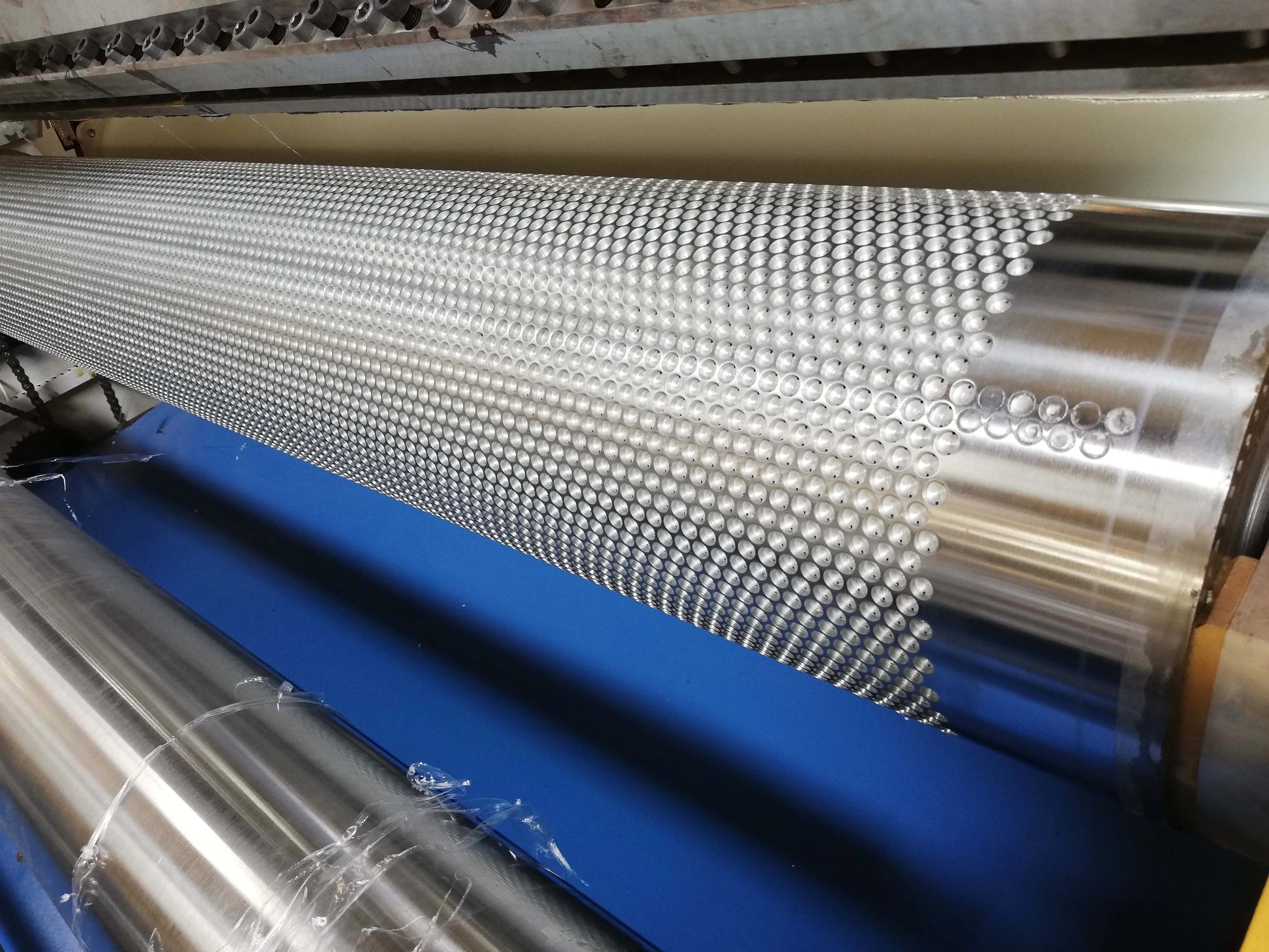

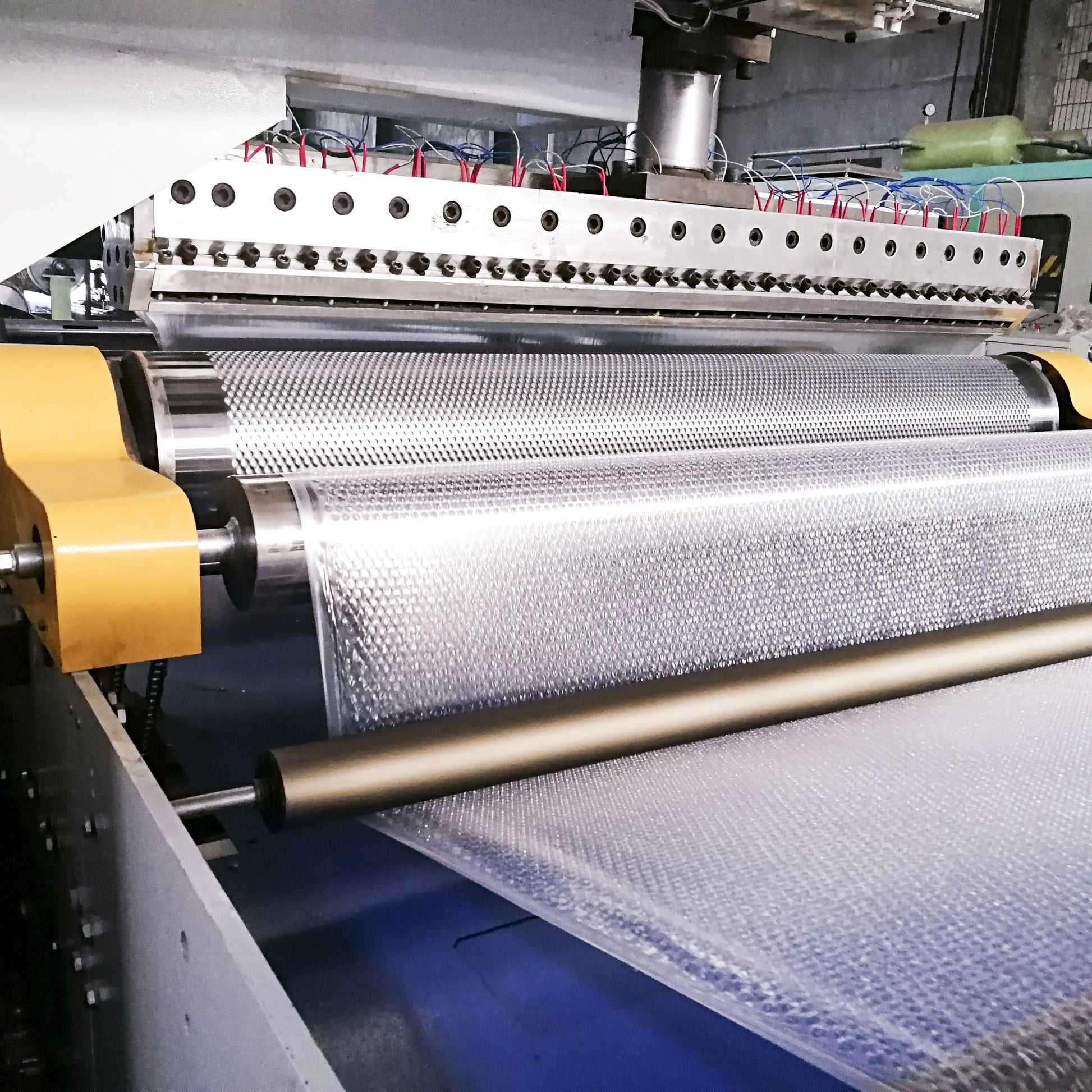

Details Images
Packing & Delivery
Why Choose Us
Exhibition
Our Services
FAQ
Q:Are you machinery factory or trading company? A：We are machinery factory. Q:If we have very special request for the production line,could you help me to do the design? A:Experienced mechanical designer customized-design provided. Q:How can we visit your company and machines? A:One located in Jiaozhou City and anther one in Weihai City which is about 1 hours and 3 hours nearby Jiaodong Airport.If customer want to visit our factory,we will pick up you at the airport. Q:What`s the payment method? A:T/T, L/C, etc. Q:How long is the warranty? A:12 months. Q:How long is the delivery time? A:Under normal conditions, products are delivered within 60 working days. Q:How to install machine when machine arrive? A;We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
