High Quality Environmental Compact Air Tank Oilless Silent 2.2kw 3Hp Electric Rotary Scroll Air Compressor
High Quality Environmental Compact Air Tank Oilless Silent 2.2kw 3Hp Electric Rotary Scroll Air Compressor
Couldn't load pickup availability

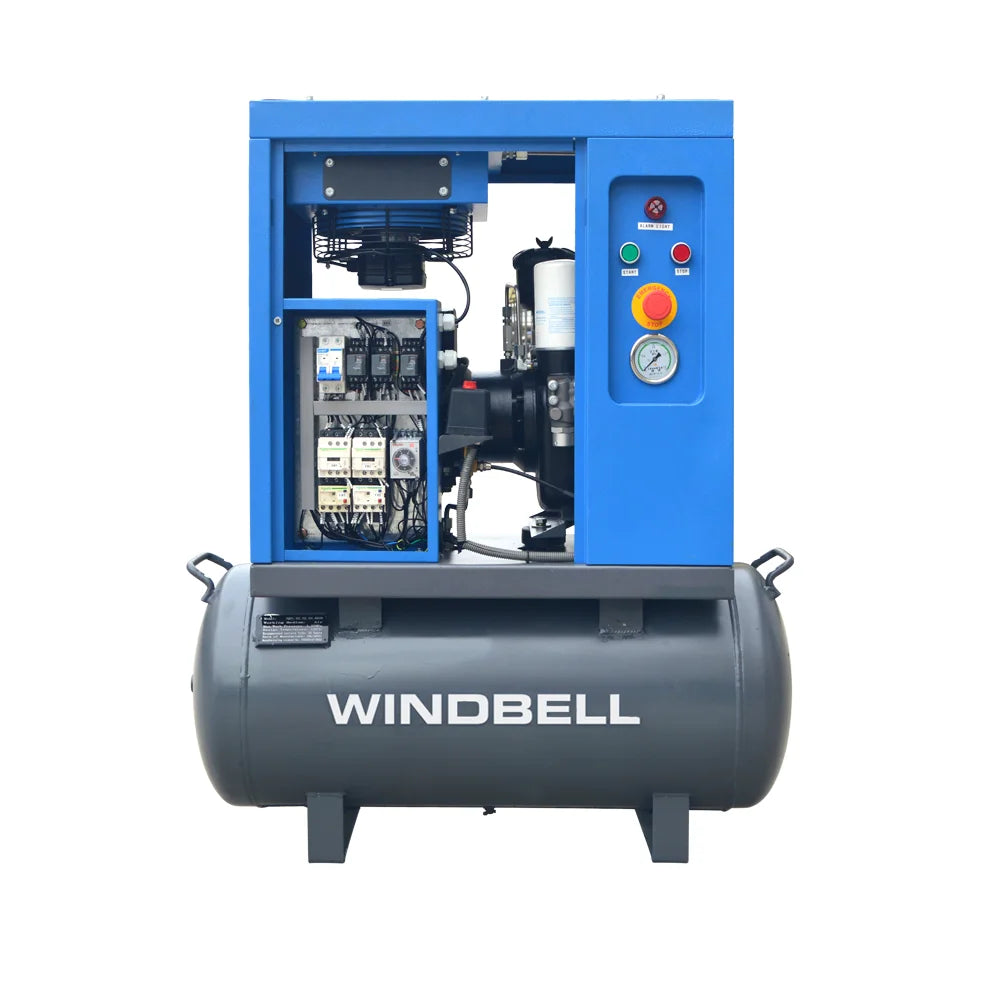

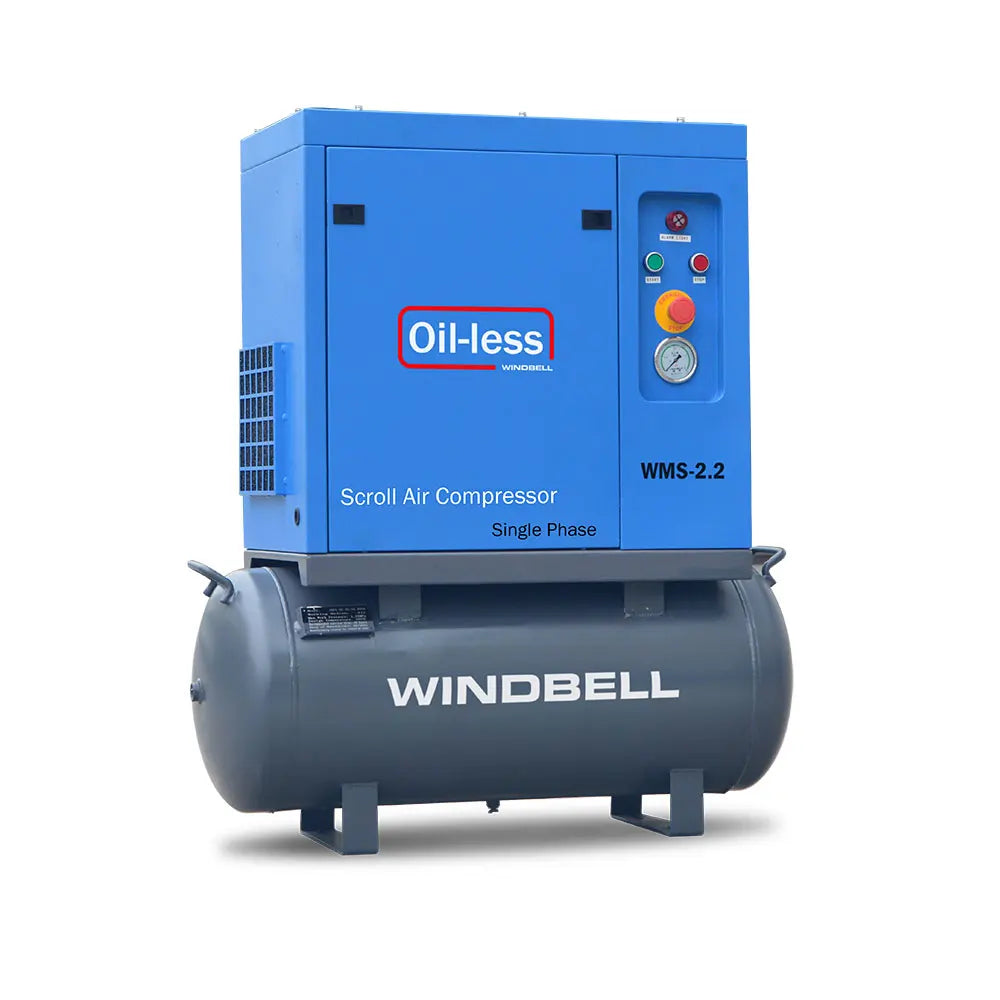

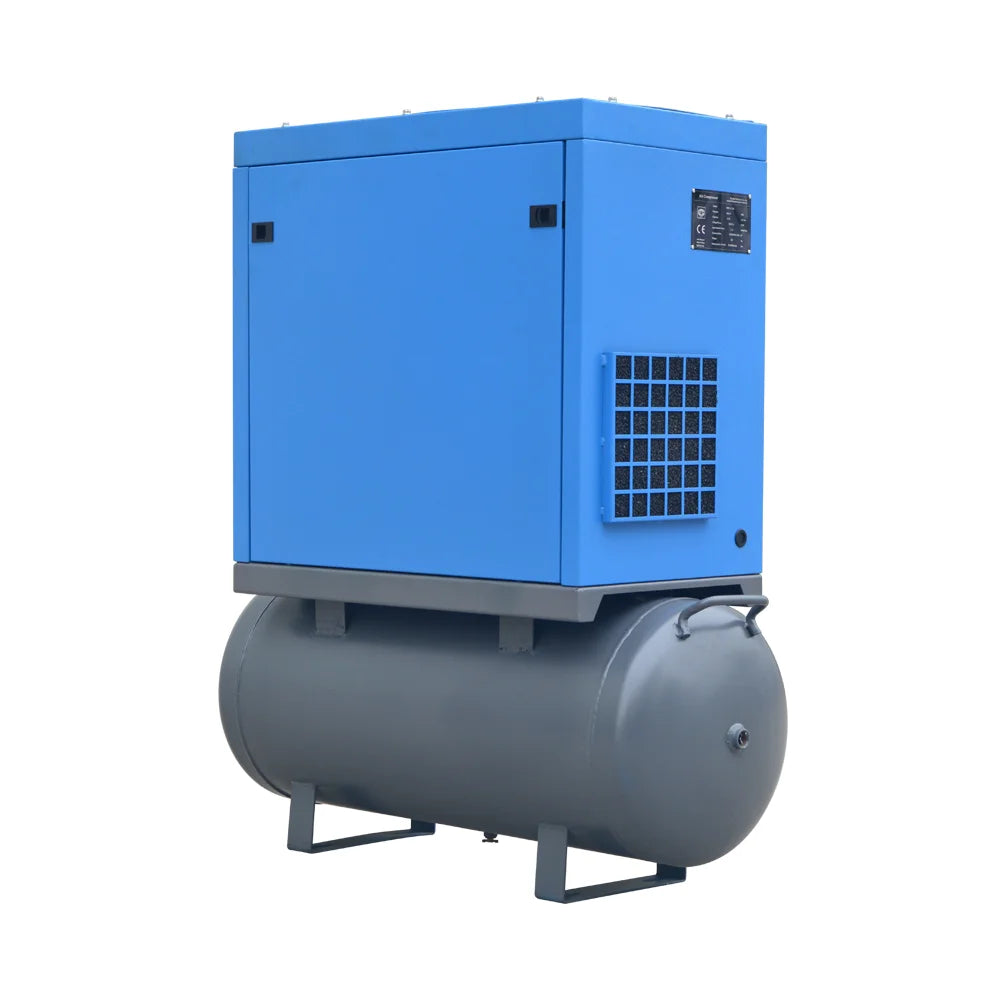

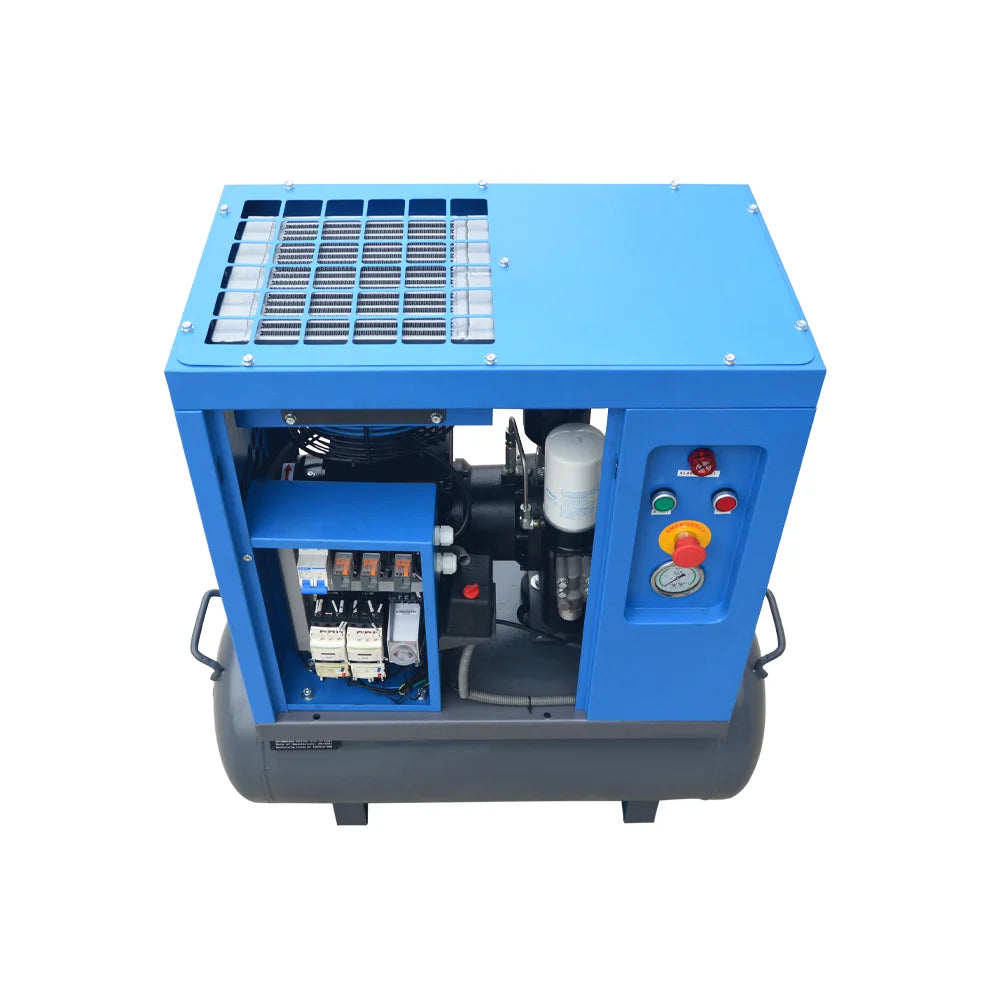

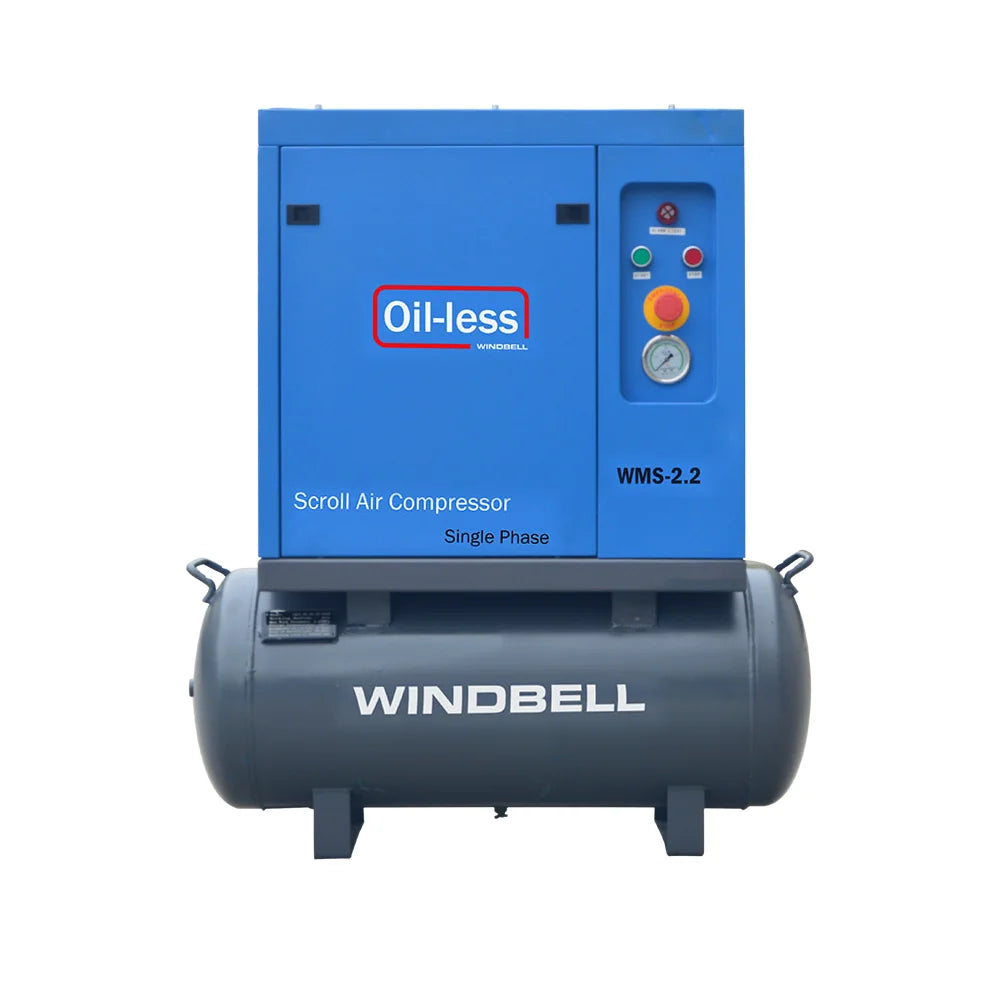

WMS-2.2 scroll air compressor is powered by one single phase 2.2 kW motor which can produce 320L/min compressed air under a pressure of 8 bar.
It adopts an air cooling method and the start-up method is direct start. Equipped with 80L horizontal air storage tank.
The compressor scroll is with a wide applications, such as enterprises, factory processing, laboratories, furniture industry and building mat
Scroll Air Compressor Advantages:
1.Compact design makes it cover small area.
2.Less components ensure long lifetime and less maintenance.
3.The scroll compressor is Low noise.
4.Long maintenance interval.
5.Environmental protection. Low noise, light weight, low vibration, low energy consumption, long life, stable continuous gas delivery, clean air.
| Technical specifications of WMS2.2 Electric Air Scroll Compressor | |||
| Air end | Working pressure | Bar | 8 |
| Capacity | L /min | 320 | |
| Motor | Motor power | KW/HP | 2.2/3 |
| Voltage | V/Hz | 220/50 | |
| Protection Grade | IP54 | ||
| Starter | Direct | ||
| Insulation grade | F | ||
| Whole unit | Driving type | Direct | |
| Tank capacity | L | 80 | |
| Lubrication oil capacity | L | 1.8 | |
| Max Ambient Tempeature | ℃ | 45 | |
| Cooling Method | Air | ||
| Lubrication Oil Grade | 46 | ||
| Air Outlet Diameter: | " | G1/2 | |
| Dimension | MM | 870×385×1040 | |
| Weight | KG | 120 | |
FAQ of High Quality Environmental Compact Air Tank Oilless Silent 2.2kw 3Hp Electric Rotary Scroll Air Compressor
Q1: Why customer choose us?
A: WINDBELL MACHINERY CO., LTD., with 13 years old history, we are specialized in Scroll Air Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhengzhou,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 15 to 20 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
