Hot sale HENRY popular top quality 10-22HP two wheel hand walking tractor with rotary tiller

Hot sale HENRY popular top quality 10-22HP two wheel hand walking tractor with rotary tiller

Regular price ₱550.00 PHP
Regular price ₱550.00 PHP Sale price ₱550.00 PHP
Sale Sold out
Shipping calculated at checkout.
Model Number
Power

walking tractor with rotary tiller (8-22HP )

Product Description




1. HR101-1, HR151-1,HR121/HR151/181/DF20/DF22 Main model
2. It has a new disign overall housing, and upgrade gear box body,
3. And  the attached 7-22 HP direct injection diesel engine make it much more powerful.
4. Electrical starting is optional, make it better handling performance
5. 90% common gears and spare parts with walkig tractor , Simplifies the maintenance.
6. Different product colors is optional, to adapt to differen




It can be used for rototilling,ploughing, harrow-ing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suit-able farm implementa or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.

Item

Data



Item

Data

model

HR101-1

STANDARD TRACTION(N)

1600N

ENGINE

R180/190/192/195/196

 Overall dimensions(mm)

2130×940×1090

12hours rating

8hp/10hp/11hp/12hp/13hp

 weight(Kg)

258(with rotary 333kgs)

Rated speed

2300r/min

Tire sizes

6.00-12

Model HR121-1

HR151-1

Overall dimensions (lxwxh)mm 2260x930x1125 2330x1260x1250
Wheel track  (mm) 680-850 680-1000MM
Ground clearance (mm) 215 250
Tyres   6.00-12/600-14/600-16 6.00-16
Construction weight (kgs) 300 390

Speed (km/h)

(3+1)*2

Forward   2.21/4.28/6.64/8.22/14.63/24.5/

2.55/4.94/7.68/9.5/16.9/28.3



Reverse 1.75/4.11 2.03/4.5
Rotary Tiller speed (rpm) High 275 275
Low 219 219
      Diesel engine     Model 195/196/1100/1105 1100/1105/1115
  Type   Singlecylinder,horizontal,4 stroke  Water cooling Diesel Singlecylinder,horizontal,4 stroke  Water cooling Diesel
Rated power kw(hp) 12hp/15hp/18hp 15hp/18hp/20hp
Rated speed  (rpm) 2000 2300



Model

DF121

DF151/181/20/221

Overall dimensions (lxwxh)mm

2680x960x1250

2680x960x1250

Wheel track  (mm)

800 740 640,580

800 740 640 500

Ground clearance (mm)

180

180

Tyres

6.00-12

6.00-12

Construction weight (kgs)

375

505

Speed (km/h)

Forward

1.54,2.75,4.51 5.83,10.34,16.83

1.54,2.75,4.51 5.83,10.34,16.83

Reverse

1.20,4.18

1.20,4.18

Rotary Tiller speed (rpm)

High

275

275

Low

219

219

      Diesel engine

Model

195/1100/1105

1100/1105/1110/1115

  Type

Singlecylinder,horizontal,4 stroke  Water cooling Diesel

Singlecylinder,horizontal,4 stroke  Water cooling Diesel

Rated power kw(hp)

12hp/15hp/18hp

15hp/18hp/20hp

Rated speed  (rpm)

2000

2300









Strong power from the diesel engine











 main features

     1)small garden tractor is small and light with low oil consumption, high efficiency and good stability.



     2)Easy to operate and suitable for working in the narrow acrid land, paddy field, orchard and vegetable greenhouse.



     3)According to different demands of the users, also can used for rotary planting, shallow & deep plowing, transplanting in the  paddy field, loosening the soil, atomization, watering & dewatering, sowing and exploring more lands when corresponding equipments or tool are assembled

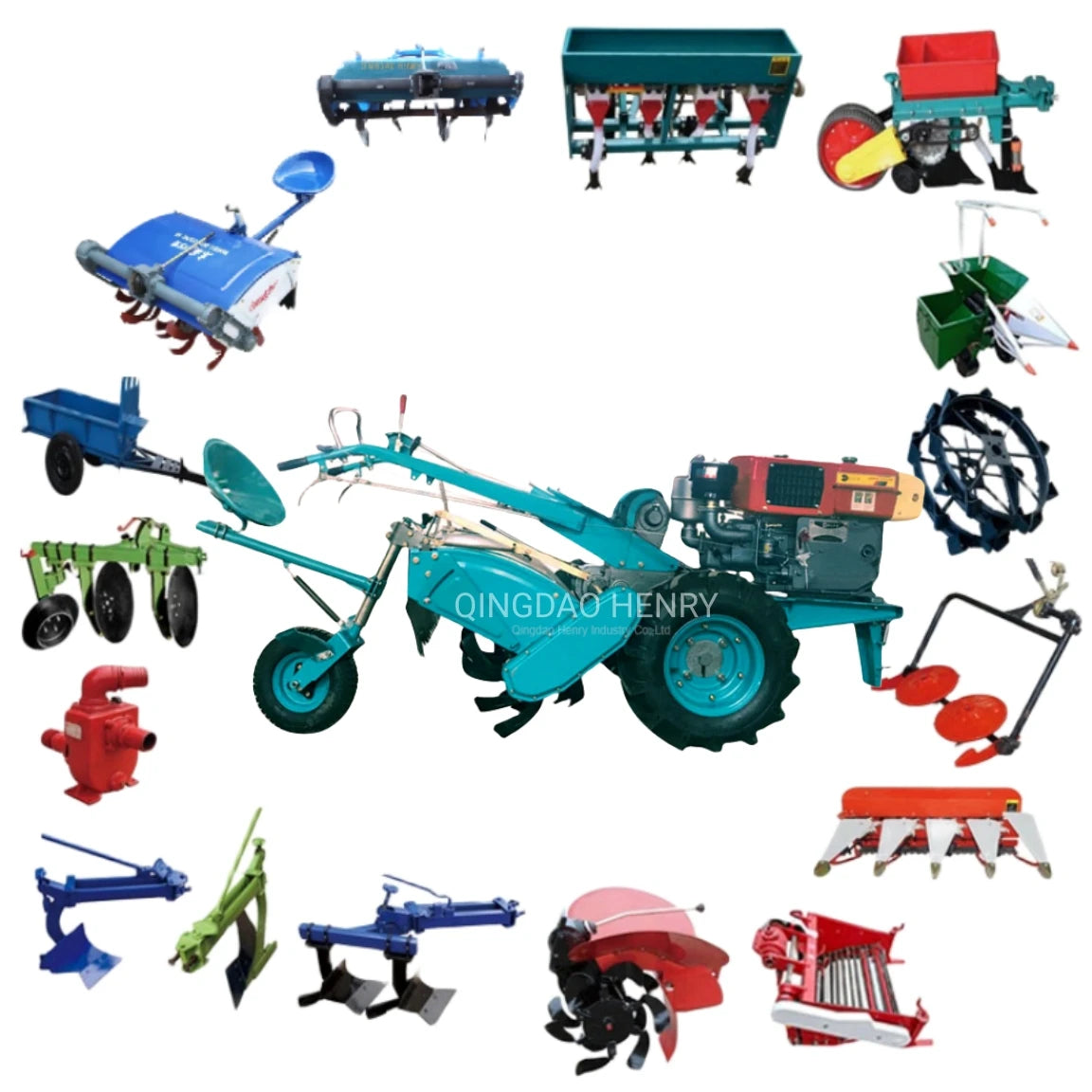

Available accessories





Packaging & Shipping

Packaging Detail: A wooden box or as your requires

shipping:within 20 days







Company Information



  product range

  we have five ranges of related product,including tider,water pump,generator,power sprayer and engines,

  you  never worry to gather different model for same container,we can provide satisfying product instead.

  The product warmly welcomed in the abroad market for more than 60 counties, and the product of walking   tractor is around 300000sets per year.The largest market Include :EU,North America,South America.



Ourfactory

    Established in 2005,is a professional manufacturer of agricultural machinery in china. About 1000 employees



 Based on the strength of our production the  special orders we can meet you ,



why choice us

1)Professional supply with certification:CCC  ISO  CE  DOP

2)Perfact quality program,100% test before delivery

3)One year guarantee

4)OEM cervice

5)Price is our big advantage, because we have a very strong production capacity



Shopping guide recommended

1)HR151-1(15-20hp,hand cranking or electric start)

2)HR81(7-12hp,hand start)

3)HR101-1(7-12hp, hand cranking or electric start

4)HR101-2(7-12hp, hand cranking or electric start )

5)HR111(7-15hp, hand cranking or electric start )

6)HR121(12-15hp, hand cranking or electric start )
