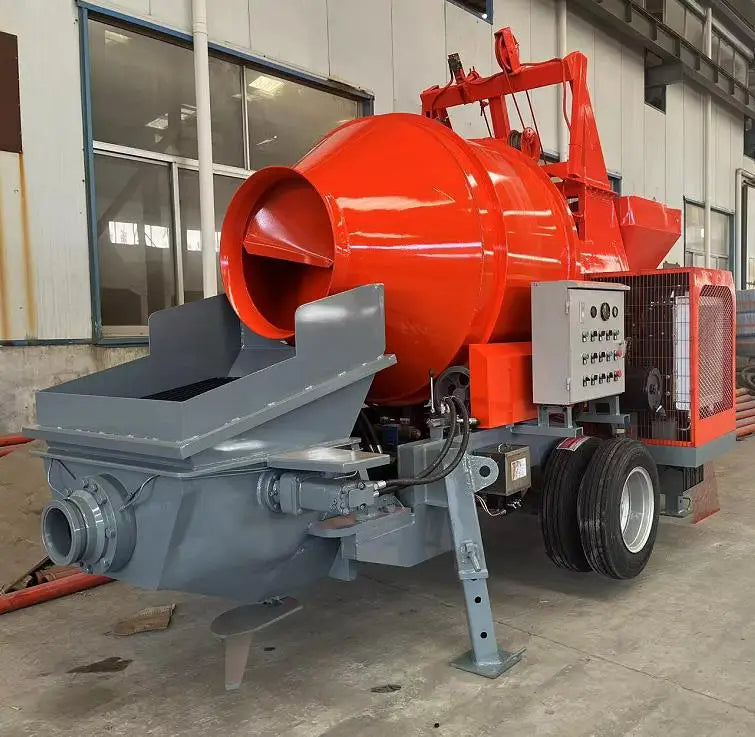

Hot Selling 40M3/H Small Diesel Mobile Concrete Mixer with Pump/Concrete Pump Machine Concrete Mixer for House Building
Hot Selling 40M3/H Small Diesel Mobile Concrete Mixer with Pump/Concrete Pump Machine Concrete Mixer for House Building
Regular price
₱6,500.00 PHP
Regular price
₱6,500.00 PHP
Sale price
₱6,500.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Hot Selling 40M3/H Small Diesel Mobile Concrete Mixer with Pump/Concrete Pump Machine Concrete Mixer for House Building
mobile/wechat/whatspp 86-15866001919
Choose MINLE as partner,let us make every effort to support your custruction works!
mobile/wechat/whatspp 86-15866001919
Choose MINLE as partner,let us make every effort to support your custruction works!
|
Item
|
Unit
|
JBS30/40
|
|
Concrete delivery capacity
|
m3/h
|
30/40
|
|
Maximum outlet pressure
|
MPa
|
10
|
|
Maximum horizontal delivery distance
|
m
|
500
|
|
Maximum vertical delivery distance
|
m
|
150
|
|
Maximum aggregate size
|
mm
|
≤40
|
|
Feeding height
|
mm
|
1400
|
|
The diameter of pipeline
|
mm
|
Φ125
|
|
Cylinder
|
number
|
2
|
|
Oil cylinder bore × stroke
|
mm
|
Φ110×1000
|
|
Material cylinder bore × stroke
|
mm
|
Φ180×1000
|
|
The maximum pressure
of the PUMPING system
|
MPa
|
23
|
|
Hydraulic oil tank
|
L
|
200
|
|
Main motor power
|
kW
|
78
|
|
Dimensions (L × W × H)
|
mm
|
5800*2150*2600mm
|
|
Weight
|
kg
|
5000/6000
|
1.Power system Mobile Concrete Mixer with Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control Mobile Concrete Mixer with Pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system Mobile Concrete Mixer with Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the
system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are
guaranteed.
4.Pumping system Mobile Concrete Mixer with Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of
the condition.
5.Lubrication System Mobile Concrete Mixer with Pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which
can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee
the system reliability.
6.Cooling System Mobile Concrete Mixer with Pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic
system works at normal status.
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.Diesel power: Germany Deutz, Weichai, Yuchai, Cummins .etc
2.Electronic control Mobile Concrete Mixer with Pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
3.Hydraulic system Mobile Concrete Mixer with Pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the
system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are
guaranteed.
4.Pumping system Mobile Concrete Mixer with Pump
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of
the condition.
5.Lubrication System Mobile Concrete Mixer with Pump
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which
can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee
the system reliability.
6.Cooling System Mobile Concrete Mixer with Pump
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic
system works at normal status.
Product information
Company information
Packaging Shipping
FAQ
1. What's the warranty time ?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2 . what's your payment term ?
We accept T / T ( 30 % down payment and balance before shipping ) and L / C mostly , But if you prefer other payment terms please contact us for further information.
3 . How long is your delivery time ?
Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
4 . Can we paint our label on your product ?
Of course! OEM and ODM are acceptable, please send us your logo or brand, and we'll paint for you.
