Kernel KN-2200A 1080P Medical Endoscope Portable Colposcope Digital Video Colposcope for Gynecology CE
Kernel KN-2200A 1080P Medical Endoscope Portable Colposcope Digital Video Colposcope for Gynecology CE
Regular price
₱1,080.00 PHP
Regular price
₱1,080.00 PHP
Sale price
₱1,080.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

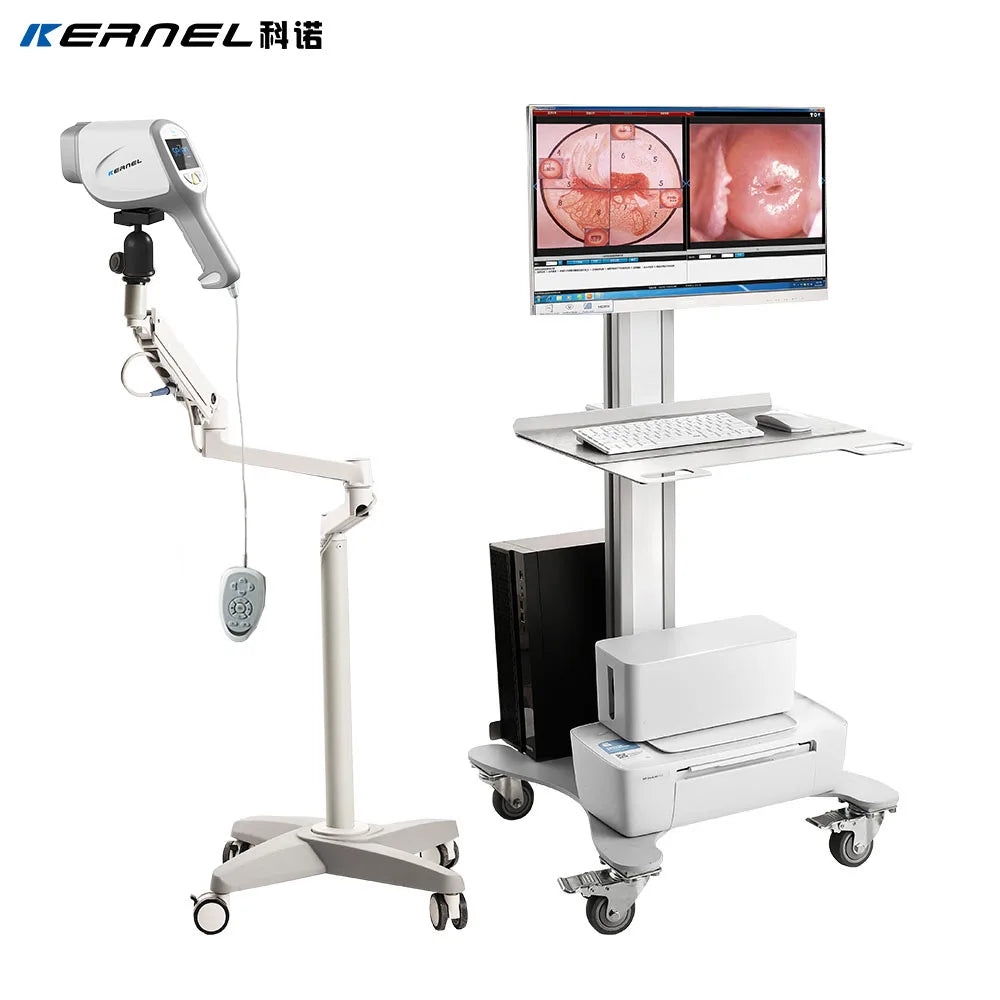

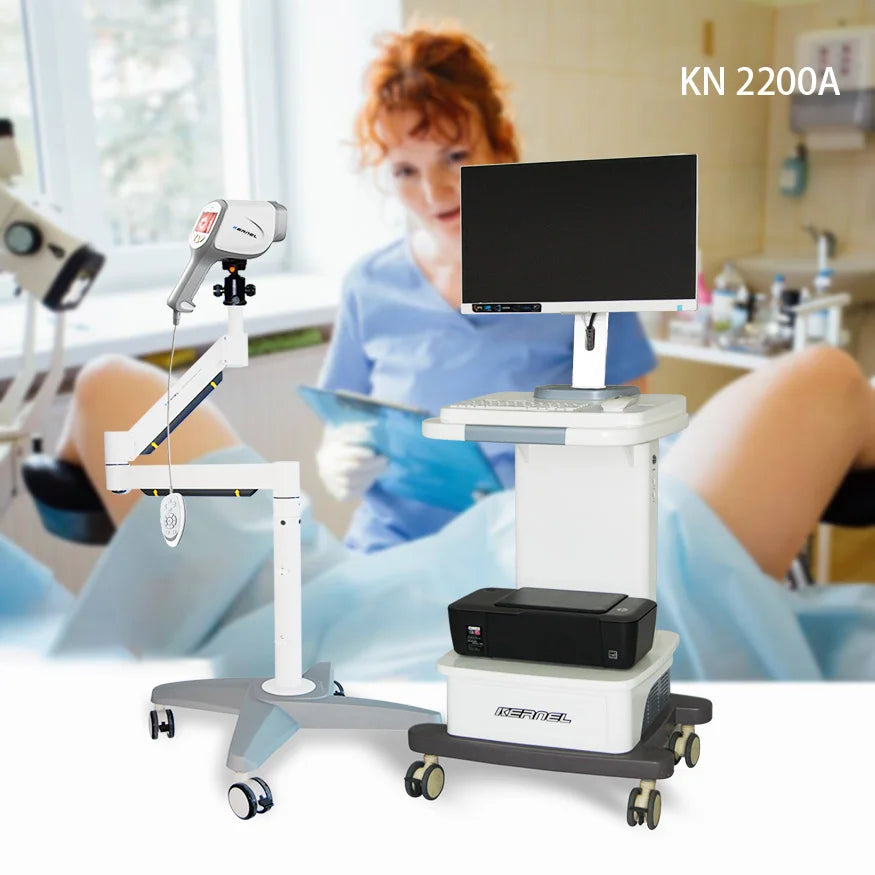

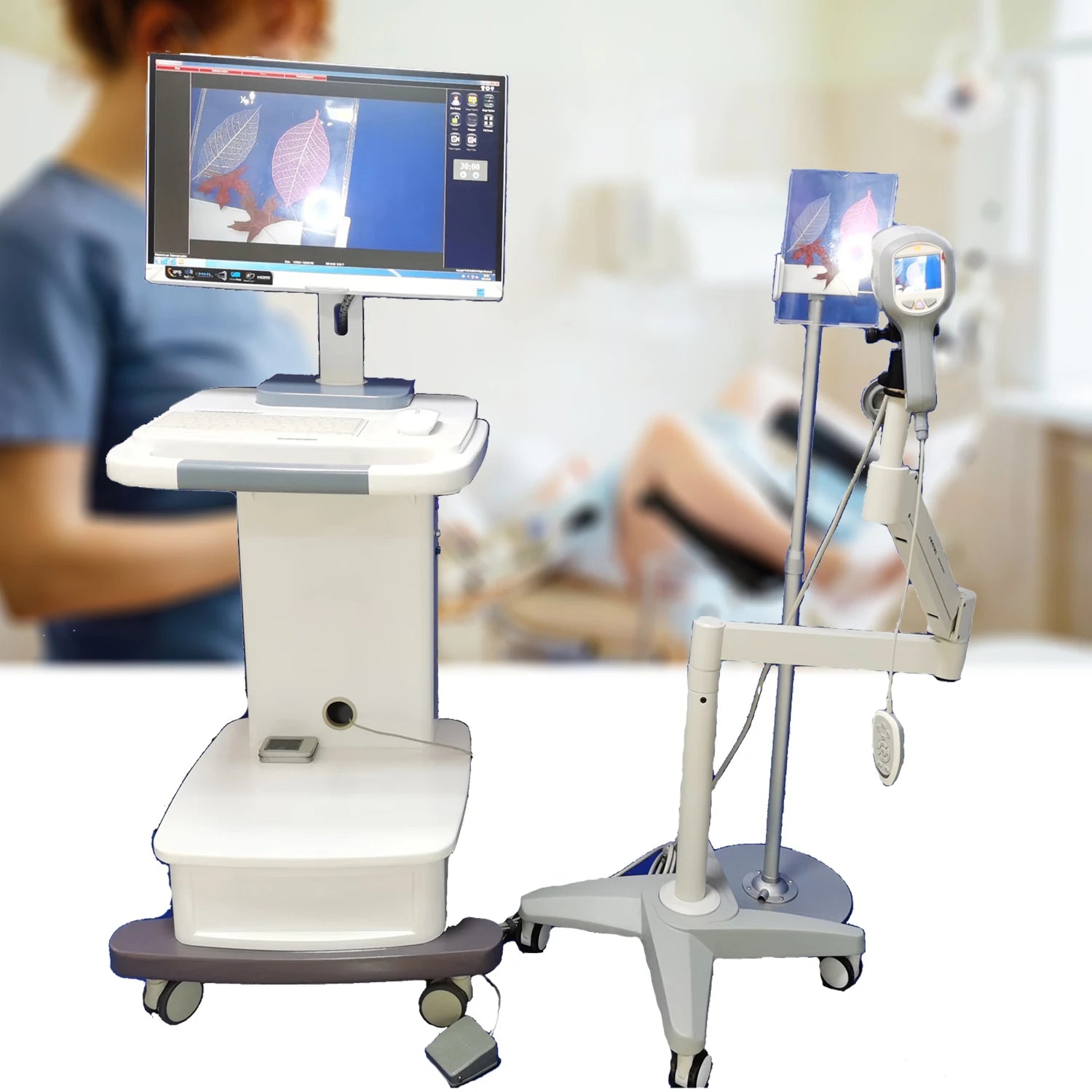

Kernel KN-2200A 1080P Medical Endoscope Portable Colposcope Digital Video Colposcope for Gynecology CE
For gynecologic vagina examination, cervical cancer, CIN, cervical screening
2.1million effective pixels sony CCD----------Multi languages system
2.1million effective pixels sony CCD----------Multi languages system
Product Description
|
Image Sensor
|
1/2.8-inch Sony CCD
|
|
Effective Pixels
|
2.1 million effective pixels
|
|
Light cource
|
24pcs LED
|
|
Horizontal Resolution
|
1080 TVL
|
|
Depth of Field
|
5.3mm～96.3mm
|
|
Certificates
|
CE,ISO,USA CERTIFICATE
|
|
Working distance
|
200～400mm
|
|
Color saturation
|
90%
|
|
Focus mode
|
Fast autofocus, Manual focus
|
|
Light source life
|
≥50000 hours
|
Product Features:
Camera:
Optical amplification: 20 times ; digital amplification: 16 times.
Horizontal resolution 1080 lines.
Adopt 24 groups energy-saving and eco-friendly white LED lightsource,long time uniform illunination,High color rendering index, no heat.
Hand-held zoom button convenient for doctors to observe tissue pathological changes in real time.
Can realize zoom,focus,imaging mode,acetic acid timing,image marking,brightness adjustment and other functions with sigle hand.

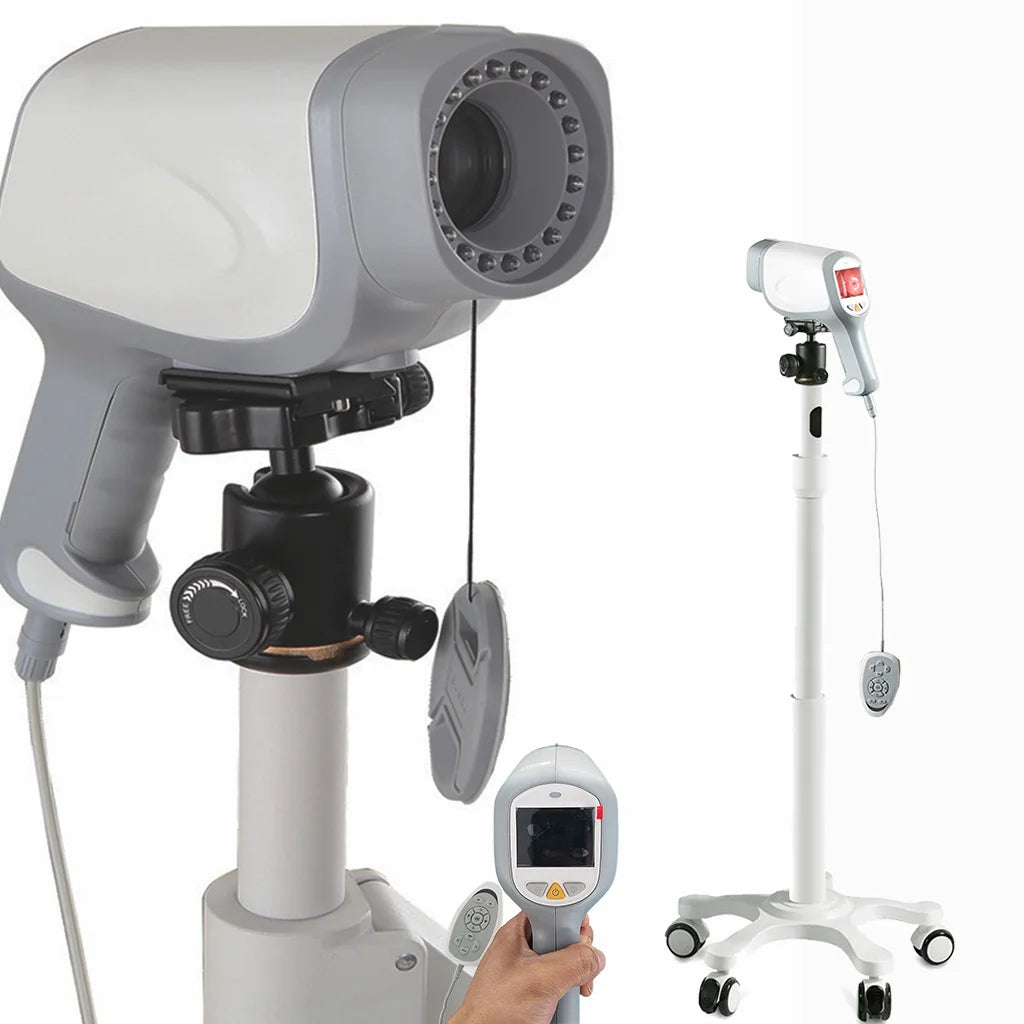

Control handle
Adopt palm-type handle design,humanized operation panel.Silicone button Oval layout
Can realize zoom,focus,imaging mode,acetic acid timing,image marking,brightness adjustment and other functions with sigle hand.

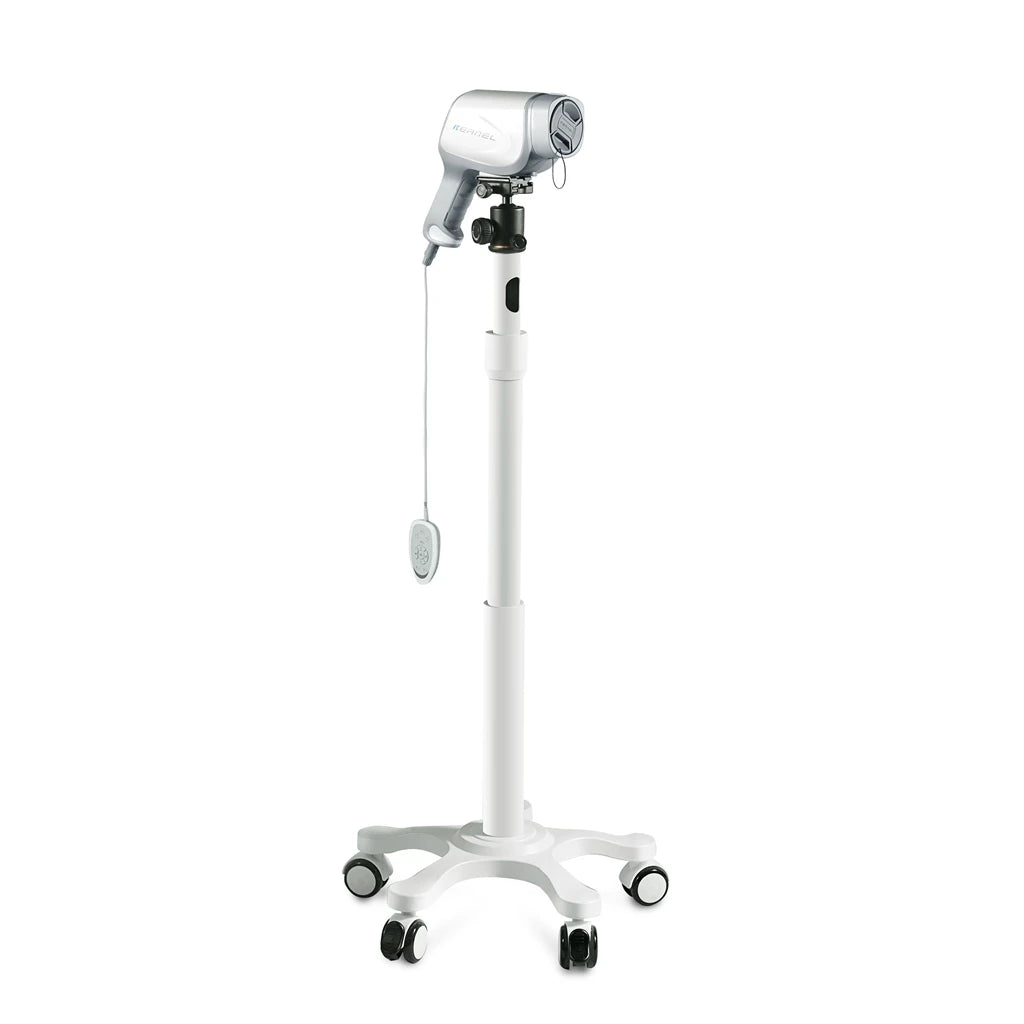

Free cantilever design
Flexible and simple operation,light weight.Can adjust the lens up dan down.
Or locked at any angle to meet different hospital beds height.
Powerful software management
integrating image acquisition, image processing, clinical diagnosis, report editing, and query statistics.
U disk automatic installation, multi-user operation mode, easy to use for different doctors. Support WIN 7 operating systems above with Chinese, English, Spanish, Russian, Vietnamese, Turkish etc.
Detailed Images
Powerful software characteristics
* Multi-function management software with the ability of image observation,capture,video recording,freezing,editing,report printing and storage.
* Special Software package,can be used for marking, zoom in and out, partial magnification etc. With the function of acetic acid reaction countdown,applicable to dynamic observation of examination and operative treatment.
* Abundant cases datebase,have 175 kinds of case pics,satisfied cases images can be added. Suitable for clinical contrast.
* Built-in cases report template,convenient for editing and printing;doctor can design case report.
* search cases via case number,name and date.
* one-key installation software, support Win7/8/10/11.
* Special Software package,can be used for marking, zoom in and out, partial magnification etc. With the function of acetic acid reaction countdown,applicable to dynamic observation of examination and operative treatment.
* Abundant cases datebase,have 175 kinds of case pics,satisfied cases images can be added. Suitable for clinical contrast.
* Built-in cases report template,convenient for editing and printing;doctor can design case report.
* search cases via case number,name and date.
* one-key installation software, support Win7/8/10/11.
Benefits of digital colposcopes
* Lower cost
* Ergonomically designed. Eliminates pain, discomfort and migraines related to binocular use.
* Shorter exam time (up to 50% shorter)
* Low learning curve (user friendly)
* Auto focus. No more turning knobs.
* Portable
* Easily integrated with telemedicine
* Easily shared between multiple operators within one facility with no down time to recalibrated eye pieces to each users
specifications.
* Broadly used in education. The image being transmitted onto a TV screen allows for live demonstration by the teacher to a student audience of any size. Conversely, it allows the teach to instruct a student in hands on learning without having to take turns looking into an eye piece, adjusting the focus each time.
* Green filter for acedic acid tests
* Increase patient awareness and education by having the ability to show the patient what is wrong. The image can be displayed on multiple screens (one for the doctor and one for the patient) to show the patient what is going on. In studies, it has shown
that this increases the percentage of patient followups.
Applications
The KN-2200 is the perfect colposcopy machine for the OBGYN office. These high quality digital video colposcopes will cut down exam time by up to 50% while giving the user the ability to store and record information for future reference. No more drawing what you see.
Kernel KN-2200 can also be used with organizations that fight against sexual assault. Using the KN-2200 colposcopes, these facilities
conduct exams and gather evidence to help advocate for the victims of these atrocious crimes.
Kernel KN-2200 colposcopes have been used in many teaching hospitals and conferences to educate the up and coming generation of
gynecologists. Because there's no dials and knobs to manually focus the lenses like on the traditional optical colposcopes,
training for the digital video colposcopes finish 3 - 5 times as fast.. The image can be transmitted to a large screen or computer
to educate a room full of residents or clinicians all at the same time.
Tele-medicine is the wave of the future. Kernel's colposcopy equipment has been integrated with numerous telemedicine solutions to offer convenience and cost effective care. partners with outreach programs for rural areas or countries that does not have ready access to women's health facilities or equipment. Our hope is to create a world where medical care is easily available and affordable to all.
Don't hesitate to contact with me for better offer and more discounts!!!
About Kernel
Physical Light That Shines Your Life Without sunlight, life on the earth is impossible.Light therapy started with heliotherapy, which has been documented as early as the 2nd century AD. Following the artificial UVA, UVB,IR,Red,Blue,Etc and then they were widely used and continuously developed invarious fields of clinical and aesthetic treatment. Kernel Medical has focused on developing various Physical therapy Equipment for 25 years,we are a global leader in the development, manufacture and sale of advanced medical equipment, including 311/308nm UV phototherapy, PDT LED light therapy beauty machine, LLLT hair regrowth system,Digital&Optical video colposcope. We develop fresh, original ,state-of art solutions by converting concepts that often appear to be opposed into real products. Can be used to reduce the symptoms of chronic skin conditions like Psoriasis,Vitiligo while others can repair and rejuvenate the skin, also cover hair regrowth treatment.We never stop moving on our way to advance technology promising of life.
