Loading Capacity 700kg Track Skid Steer Loader Factory Diesel Engine Hydraulic Operation Mini Skid Steer
Loading Capacity 700kg Track Skid Steer Loader Factory Diesel Engine Hydraulic Operation Mini Skid Steer
Regular price
₱10,080.00 PHP
Regular price
₱10,080.00 PHP
Sale price
₱10,080.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Features:
1. The body width is only 900mm, which allows you to freely enter and exit some small spaces for work (yard back door).
2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350㎜ (comparable products are only 2100㎜), and it can be loaded with high-rail trucks.
3. The engine uses EPA and Euro 5 certified diesel power (Perkins 403J-18.5KW from the UK), the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders), and the operating mode is a pilot handle (one-hand control) Walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground).
5. Install a sponge pad at the operating position.
6. Chassis height from the ground 185mm.
7. At the beginning of the design, the convenience of maintenance was taken into consideration.
1. The body width is only 900mm, which allows you to freely enter and exit some small spaces for work (yard back door).
2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350㎜ (comparable products are only 2100㎜), and it can be loaded with high-rail trucks.
3. The engine uses EPA and Euro 5 certified diesel power (Perkins 403J-18.5KW from the UK), the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders), and the operating mode is a pilot handle (one-hand control) Walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground).
5. Install a sponge pad at the operating position.
6. Chassis height from the ground 185mm.
7. At the beginning of the design, the convenience of maintenance was taken into consideration.
Specification
|
Ltem
|
HT-V1000
|
||
|
With Rubber Track
|
|||
|
Perkins 403J-11
|
|||
|
Metric
|
U.S.
|
||
|
Key Specifications
|
|||
|
Rated Power (KW)
|
18.5(25Hp)
|
||
|
Operating Weight
|
1538 Kg
|
3390 Lb
|
|
|
Rated Operating Capacity
|
454 kg
|
1000 Lb
|
|
|
Ground Pressure (Rubber)
|
2800 Kg/㎡
|
3.98 Psi
|
|
|
Auxiliary Std Flow
|
45 L/Min
|
12 Gal/Min
|
|
|
Rotating speed (Rpm)
|
2800
|
||
|
Noise (Db)
|
≤95
|
||
|
Engine
|
|||
|
Emissions Tier
|
EU NRM 97/68/EC Stage 5
|
||
|
EPA Tier 4 Final
|
|||
|
Engine Cooling
|
Liquid
|
||
|
Engine Fuel
|
Diesel
|
||
|
Displacement
|
1.131 L
|
69 in³
|
|
|
Number of Cylinders
|
3
|
||
|
Performance
|
|||
|
Tipping Load
|
1315 KG
|
2898 Lb
|
|
|
Travel Speed
|
5.8 Km/h
|
3.52 Mph
|
|
|
Travel Speed - Reverse
|
3.9 Km/h
|
2.4 Mph
|
|
|
Capacities
|
|||
|
Fuel Tank
|
25 L
|
6.6 Gal
|
|
|
hydraulic system
|
|||
|
Hydraulic oil tank capacity
|
22 L
|
5.8 Gal
|
|
|
Pump Capacity
|
45 L/ Min
|
12 Gal/Min
|
|
|
System Relief Quick Couplers
|
200 Bar
|
2900 Psi
|
|

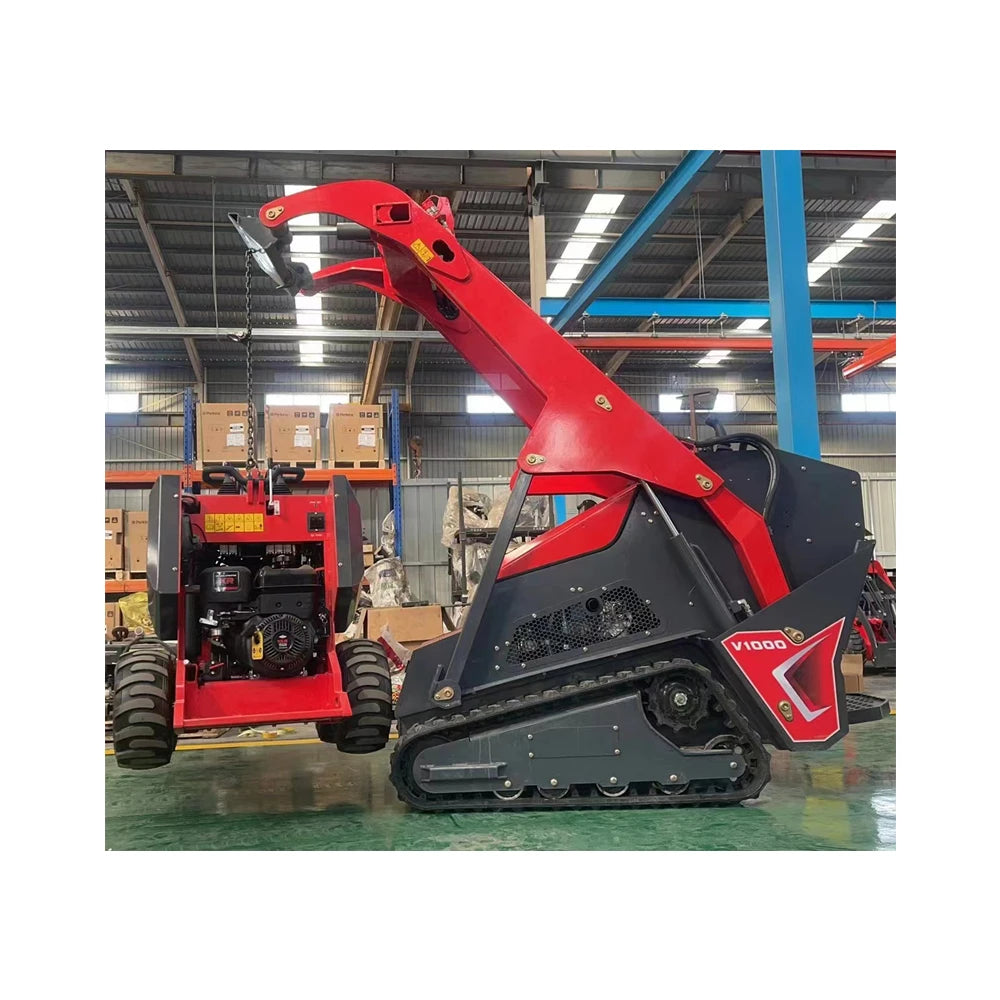

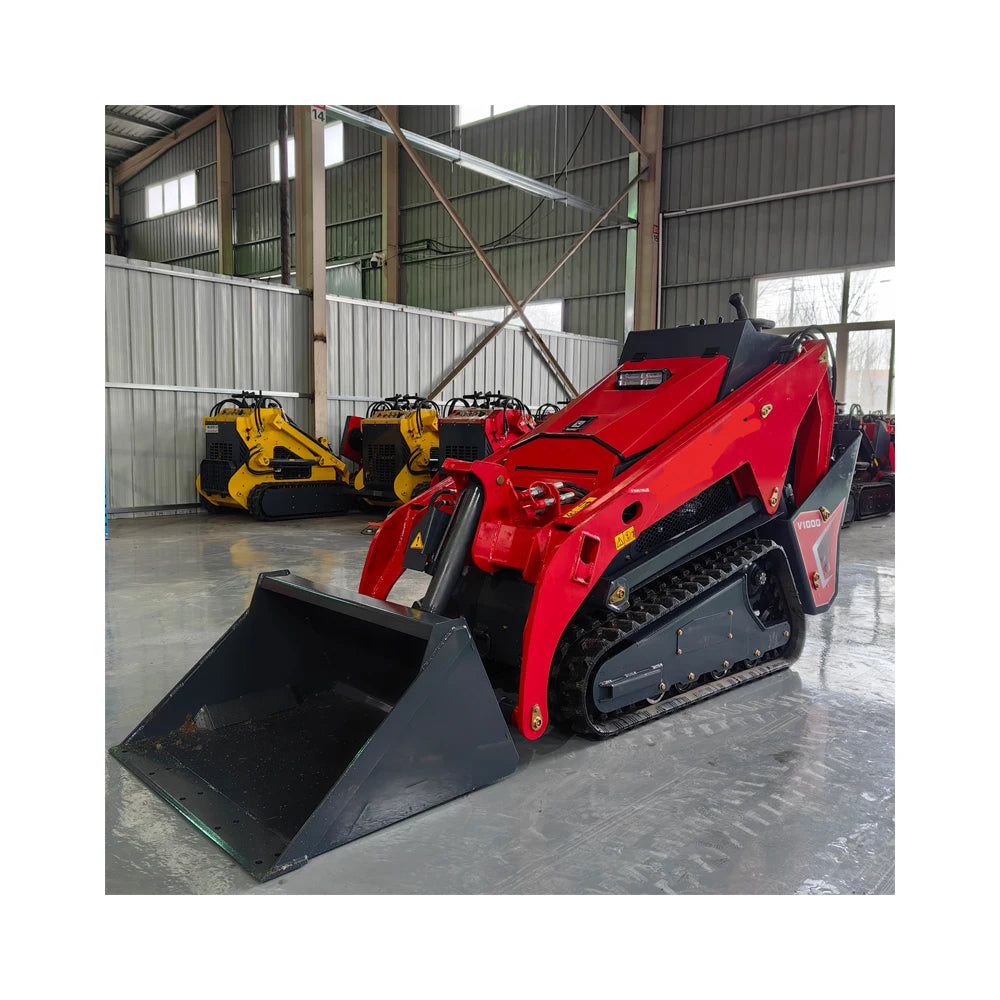

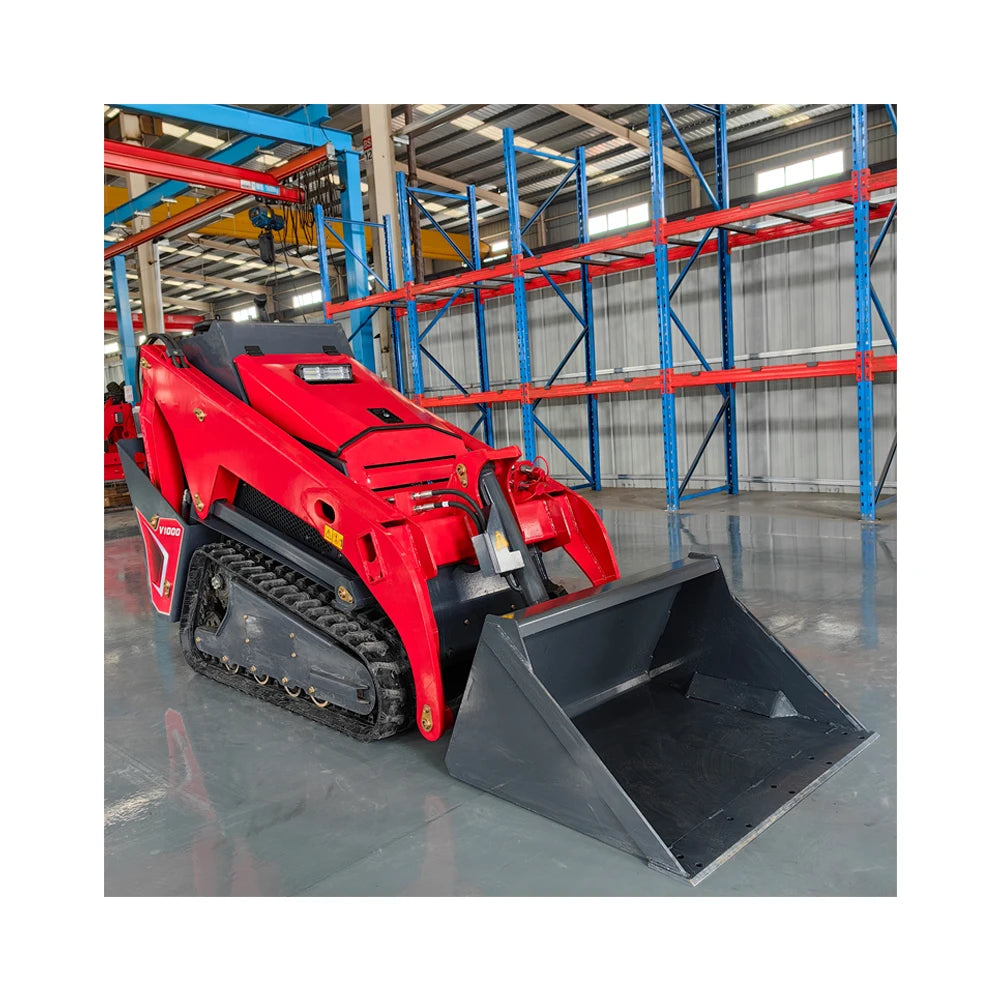

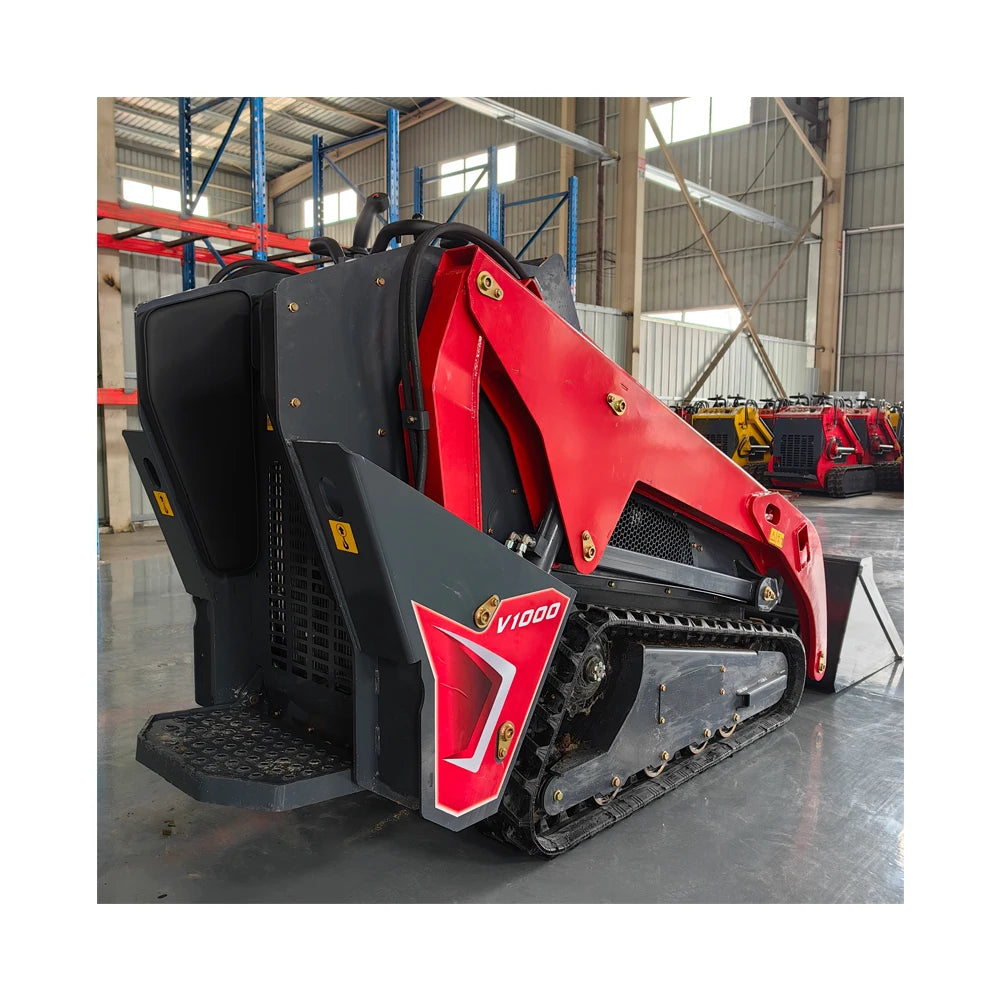

Details Image

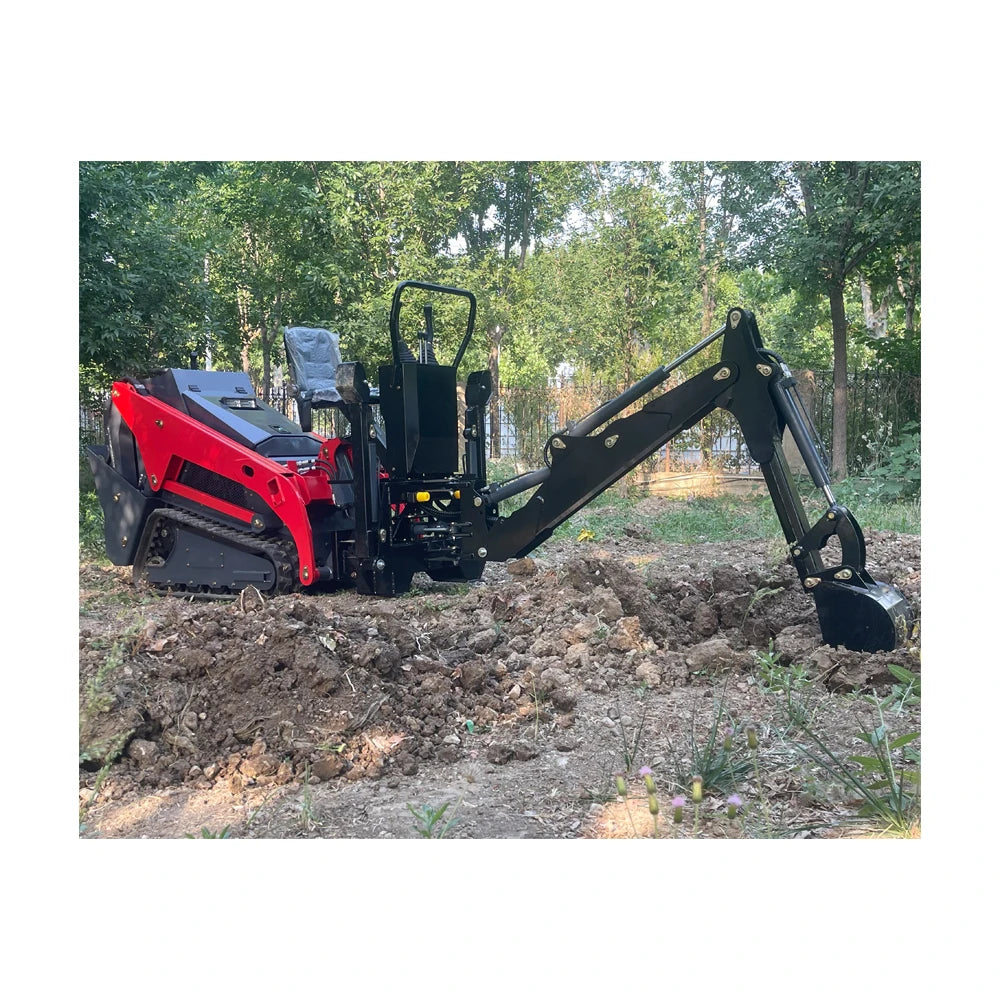

Accessories
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
