no air pollution; durable, non-scratching ground, non-sticky debris, non- skid trackless tires are selected; under the premise of ensuring safety and reliability, product control mode and control procedures are optimized, and the operation is more humane.
ShoppingTogether
New 6m 8m crawler self propelled scissor lift Track type scissor lift
New 6m 8m crawler self propelled scissor lift Track type scissor lift
Regular price
₱5,380.00 PHP
Regular price
₱5,380.00 PHP
Sale price
₱5,380.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Factory manufacture various platform elevator hydraulic scissor lift
Self-propelled scissor lift has its own walking and lifting function, with the steering wheel to control the direction of running,speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel irection of running, speed can walk and a brake device, battery driven DC motor running and movements, may also choose to AC motor or diesel engine running and movements, can also use wireless electronic remote control movements, without the need for manual traction and does not need an external power supply, flexible and convenient in movement, high- altitude operations more efficient and convenient is modern enterprise, safety production ideal high-altitude operations equipment.
FEATURES AT A GLANCE
The body of self-walking mini-lifting platform is beautiful, compact and flexible. The main engine is electric-driven wheel steering, which has the functions of self-walking, lifting and steering. Imported hydraulic components, equipped with explosion-proof tube device, emergency descent device, walking steering is realized by electric drive machine, low noise,

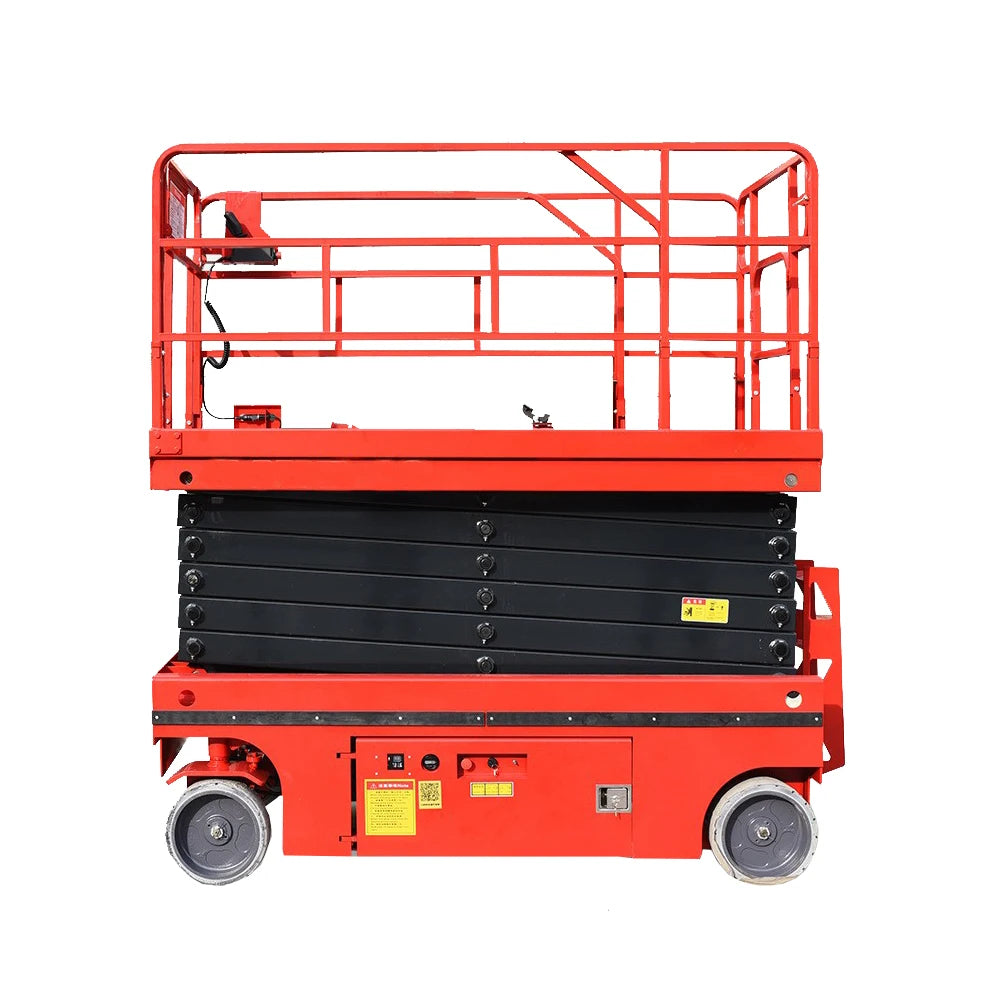

Right elevation

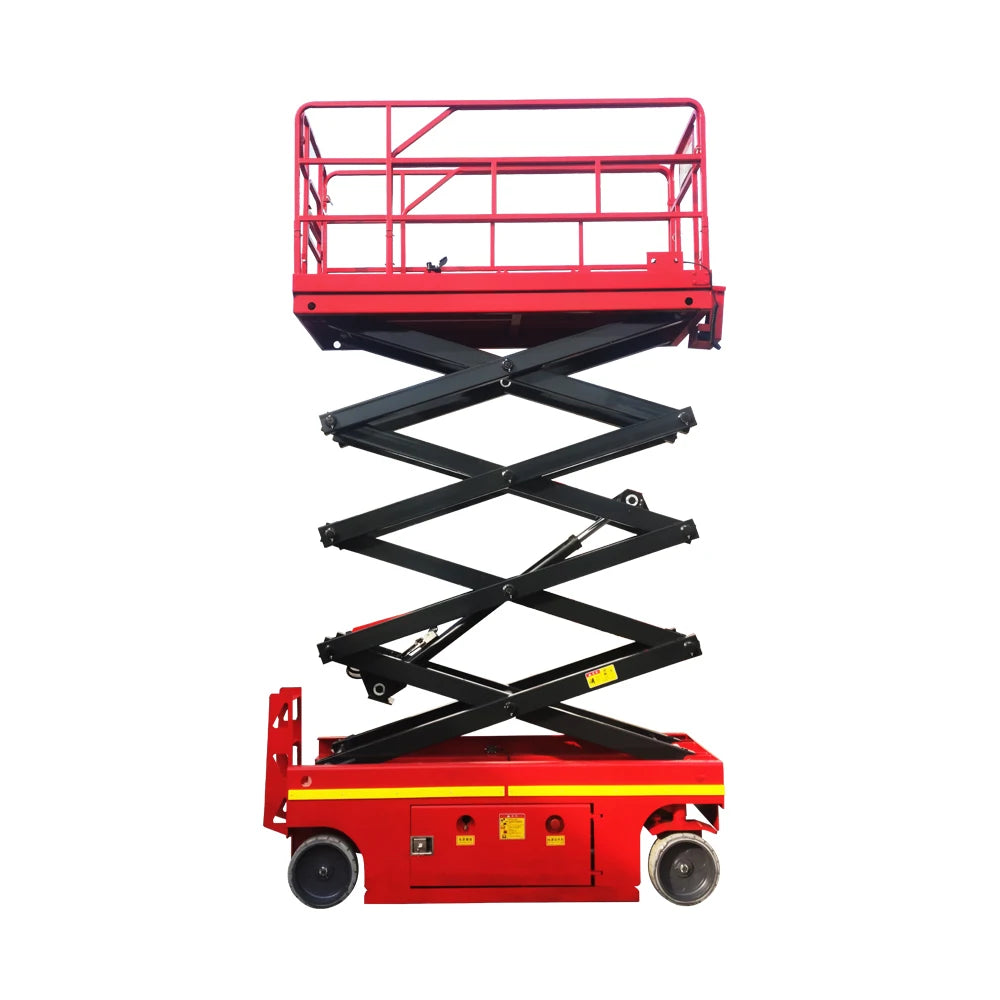

Left elevation

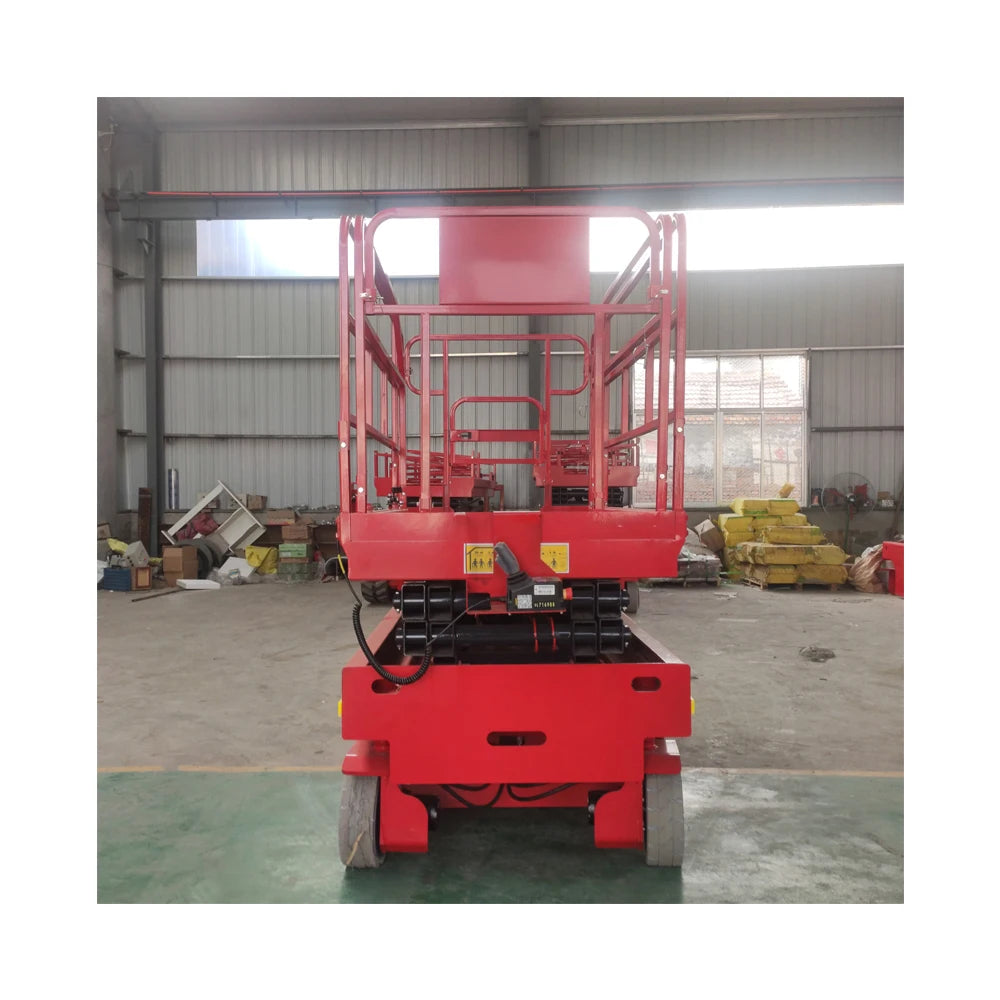

Front elevation
PRODUCT SPECIFICATIONS
|
Model
|
HTLP0.3-4
|
HTLP0.3-6
|
HTLP0.3-8
|
HTLP1012
|
|
Safe Working Loading
|
320kg
|
320kg
|
320kg
|
320kg
|
|
Safe Working Loading of extension
|
113kg
|
113kg
|
100kg
|
113kg
|
|
Number of people
|
2
|
2
|
2
|
2
|
|
Max.Working Height
|
6m
|
8
|
10m
|
12m
|
|
Max.platform Height
|
4m
|
6m
|
8m
|
10m
|
|
Overall Length
|
2600mm
|
2600mm
|
2600mm
|
2600mm
|
|
Overall Width
|
1170mm
|
1170mm
|
1170mm
|
1170mm
|
|
Overall hight(Fenec not folded)
|
2160mm
|
2280mm
|
1700mm
|
2520mm
|
|
Overall hight(Fenec folding)
|
1460m
|
1580m
|
2.4m
|
1820m
|
|
Working platform size (Length*width)
|
2400mm*1170m
|
2400mm*1170m
|
2400mm*1170m
|
2400mm*1170m
|
|
Platform extension size
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
|
Mini ground clearance(retracted)
|
0.1m
|
0.1m
|
0.1m
|
0.1m
|
|
Mini ground clearance(lifting)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
|
Wheelbase
|
1.89m
|
1.89m
|
1.89m
|
1.89m
|
|
Mini turning radius(innner wheel)
|
0
|
0
|
0
|
0
|
|
Mini turning radius(outer wheel)
|
2.40m
|
2.40m
|
2.40m
|
2.40m
|
|
Lifting motor/drive motor
|
24v/4.0kw
|
24v/4.0kw
|
24v/4.0kw
|
24v/4.0kw
|
|
Machine travel speed(stowed)
|
3.5km/h
|
3.5km/h
|
3.5km/min
|
3.5km/h
|
|
Machine travel speed(lifting state)
|
0.8km/h
|
0.8km/h
|
0.8km/min
|
0.8km/h
|
|
Up/down speed
|
80/90 sec
|
80/90 sec
|
0.5m/s
|
80/90 sec
|
|
Battery
|
6V/200Ah
|
6V/200Ah
|
4×6V/200Ah
|
6V/200Ah
|
|
Charger
|
24v/25A
|
24v/25A
|
24v/25A
|
24v/25A
|
|
Max Climb capacity
|
25%
|
25%
|
30%
|
25%
|
|
Max. allowable working angle(indoor/outdoor)
|
2°/3°
|
2°/3°
|
2°/3°
|
2°/3°
|
|
Tyre
|
φ381*127
|
φ381*127
|
φ381*127
|
φ381*127
|
|
Machine weight
|
1800kg
|
2400kg
|
2300kg
|
2500kg
|

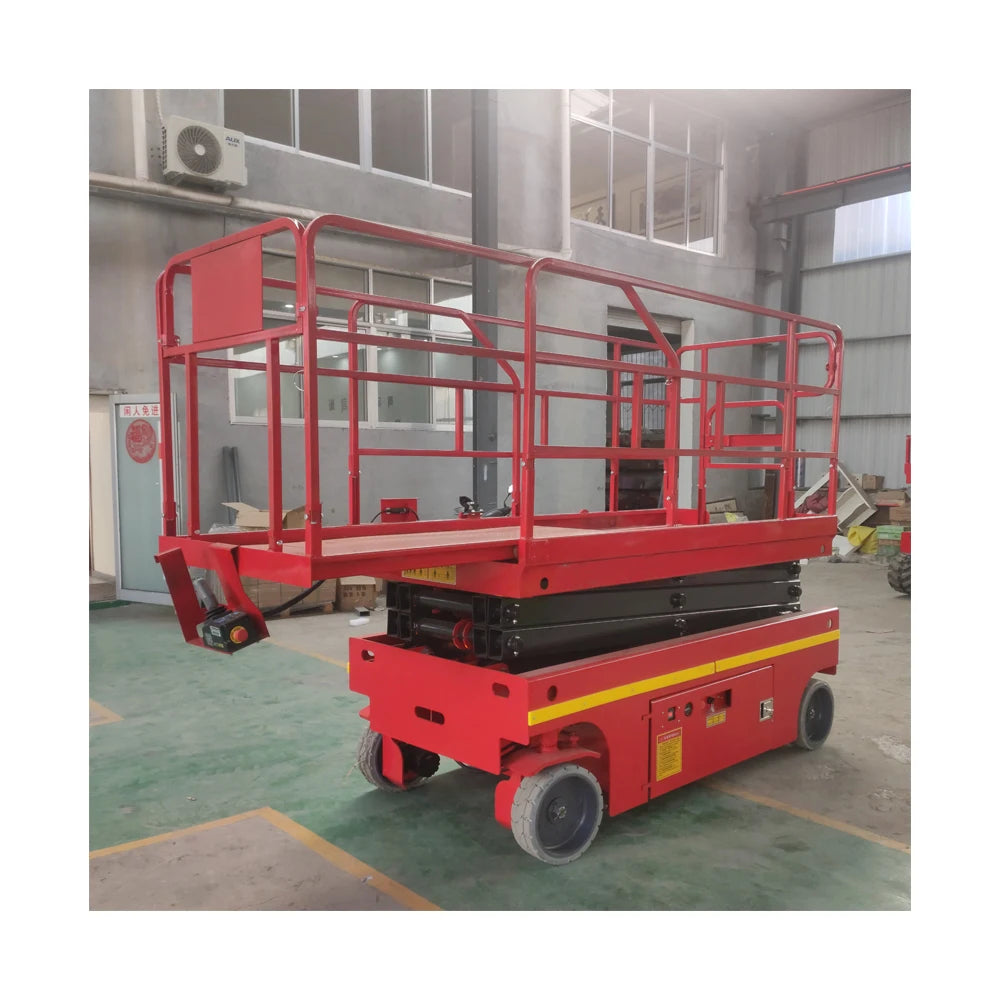

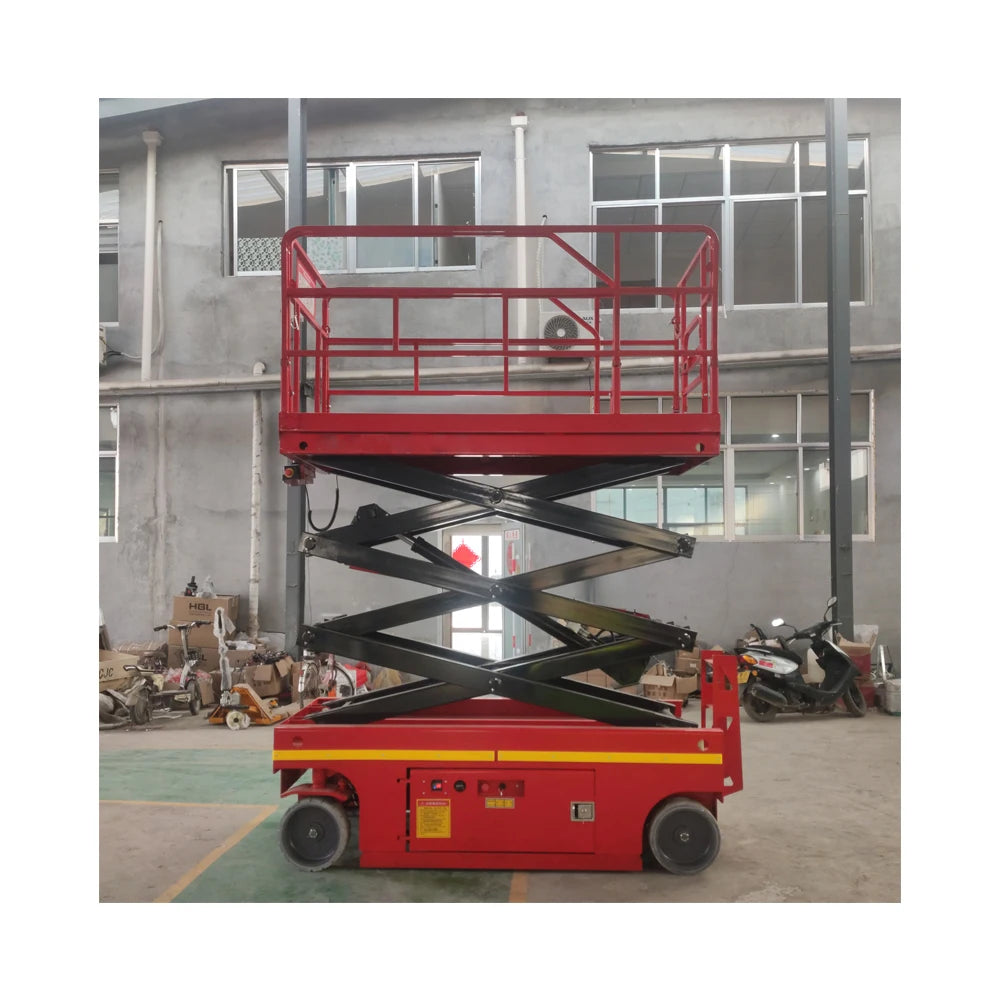

Details Image
