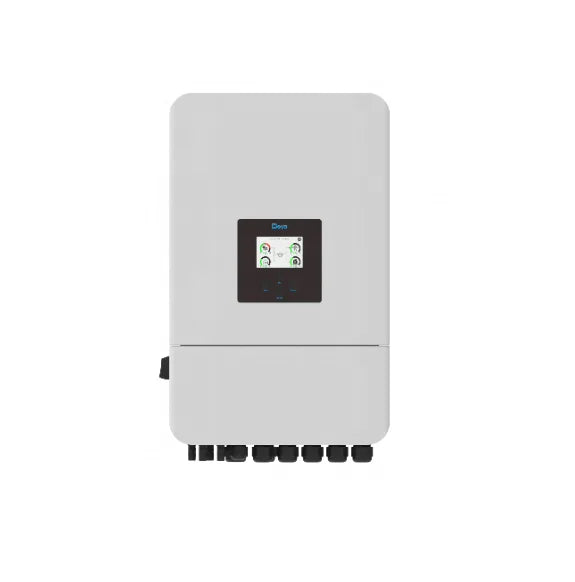

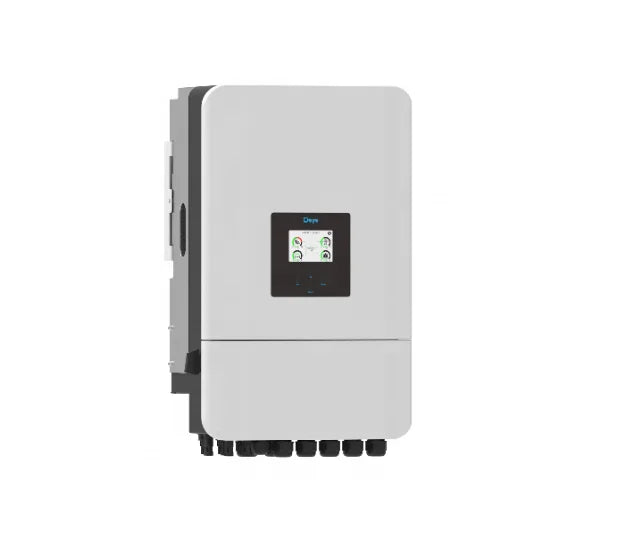

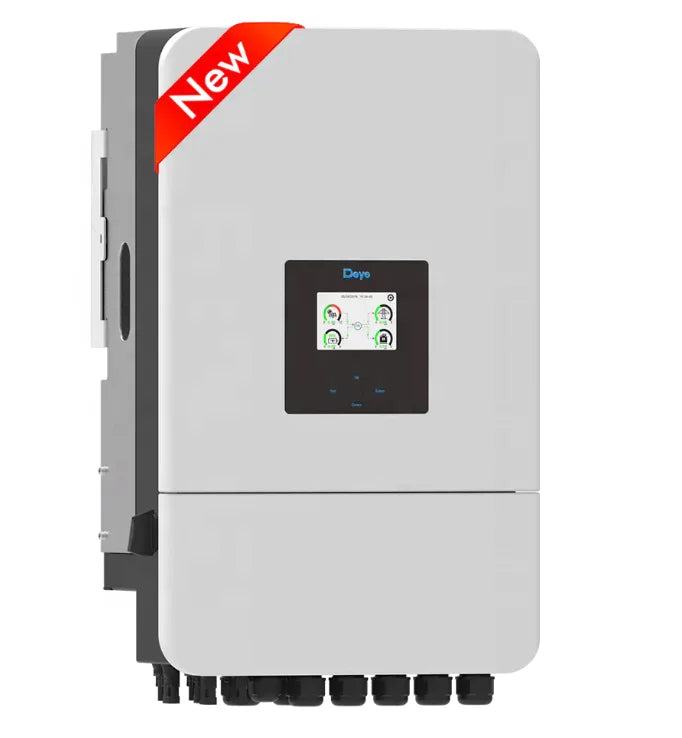

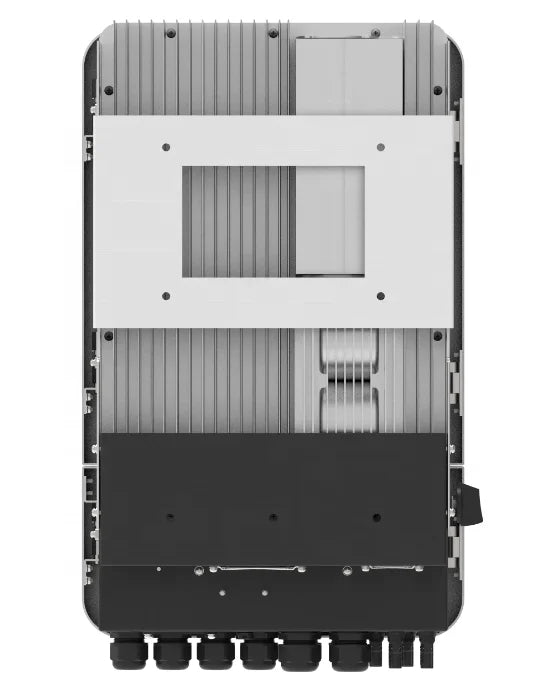

New Deye SUN-3.6/5/6/7/7.6/8K-SG05LP1-EU-SM2 3.6k 5k 6k 7k 7.6k 8k Single Phase Hybrid Inverter
New Deye SUN-3.6/5/6/7/7.6/8K-SG05LP1-EU-SM2 3.6k 5k 6k 7k 7.6k 8k Single Phase Hybrid Inverter
Regular price
₱722.00 PHP
Regular price
₱722.00 PHP
Sale price
₱722.00 PHP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 190A
* Max. charging/discharging current of 190A
* 6 time periods for battery charging/discharging
* Support storing energy from diesel generator
* Support storing energy from diesel generator
Related Product Images
Deye SUN-14/15/16/18/20K-SG05LP3-EU-SM2
Deye latest model low voltage inverter, maximum power 20KW
Deye SE-G5.1Pro-B
LiFePO4 battery Nominal Voltage (V): 51.2 Battery Module Capacity (Ah):100 Battery Module Energy (kWh):5.12
SUN-5/6/8/10/12K-SG04LP3-EU
Three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable.
Basic System Architecture

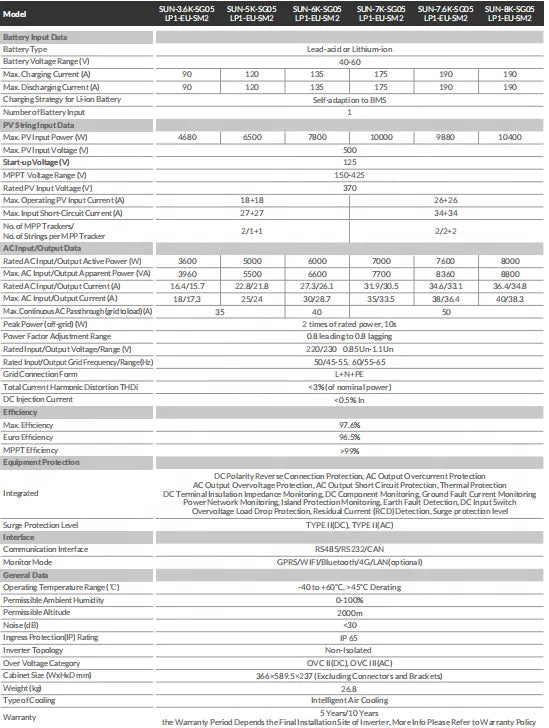

Specification
|
Model
|
SUN-3.6/5/6/7.6/8K-SG05LP1-EU-SM2
|
||||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
||||||
|
Battery Voltage Range (V)
|
40-60
|
|
|||||
|
Max. Charging Current (A)
|
190
|
||||||
|
Max. DC Input Power (W)
|
10400
|
||||||
|
Rated AC Input/Output Active Power (W)
|
8000
|
||||||
|
Rated AC Input/Output Current (A)
|
36.4/34.8
|
||||||
|
MPPT Voltage Range (V)
|
150-425
|
||||||
|
No.of MPPT Trackers/No.of String PerMPPT Tracker
|
2/2+2
|
||||||
|
MAX.efficiency
|
97.6%
|
||||||
|
Communication Interface
|
RS485/RS232/CAN
|
||||||
|
Ingress Protection(IP) Rating
|
IP 65
|
||||||
|
Cabinet Size (WxHxD mm)
|
366×589.5×237 (Excluding Connectors and Brackets)
|
||||||
|
Weight (kg)
|
26.8
|
||||||
