Product Overview

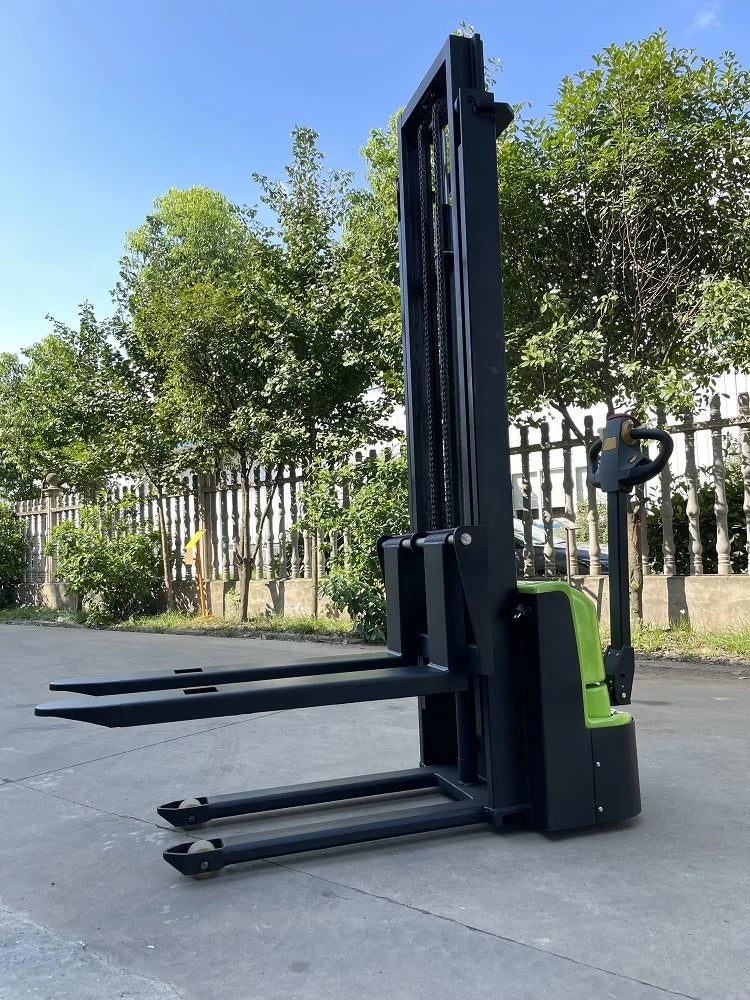

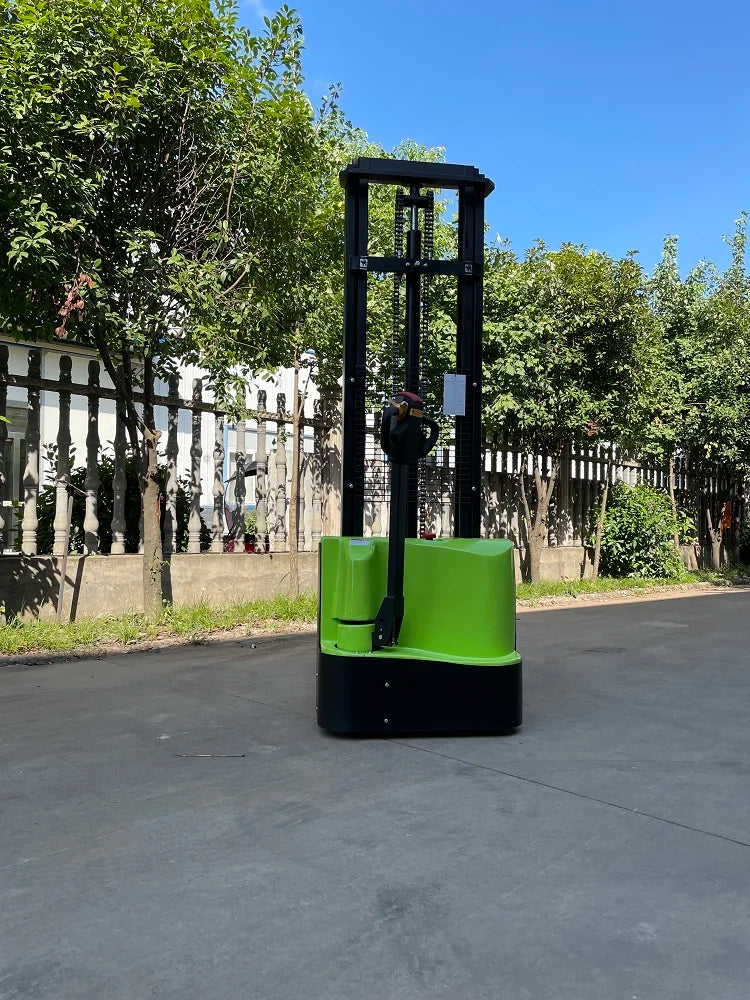

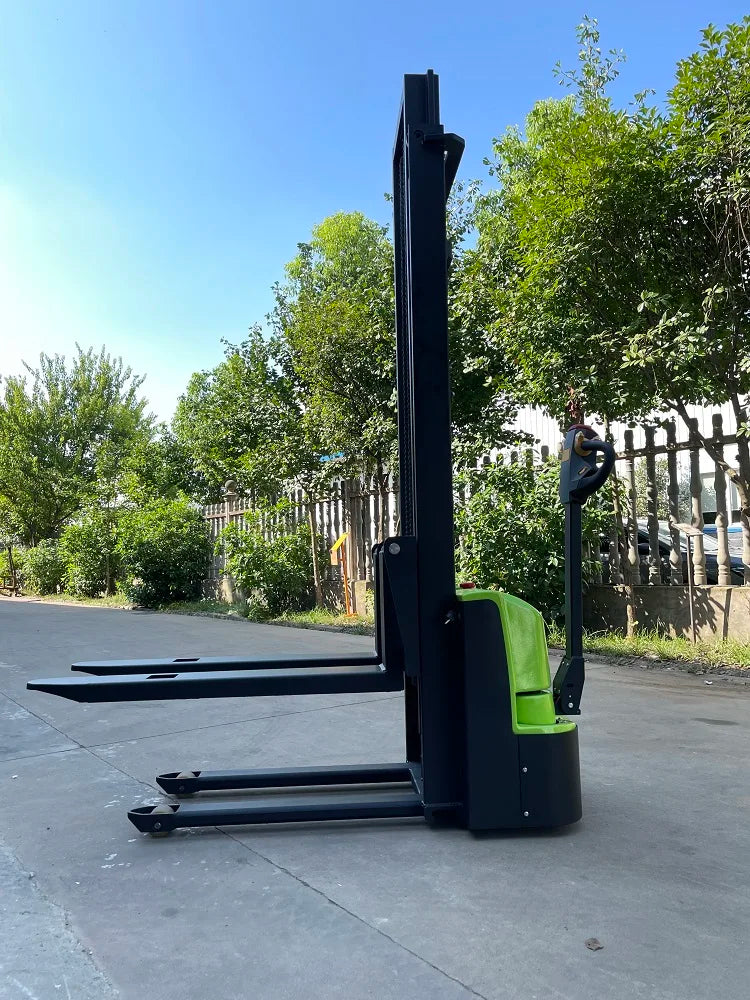

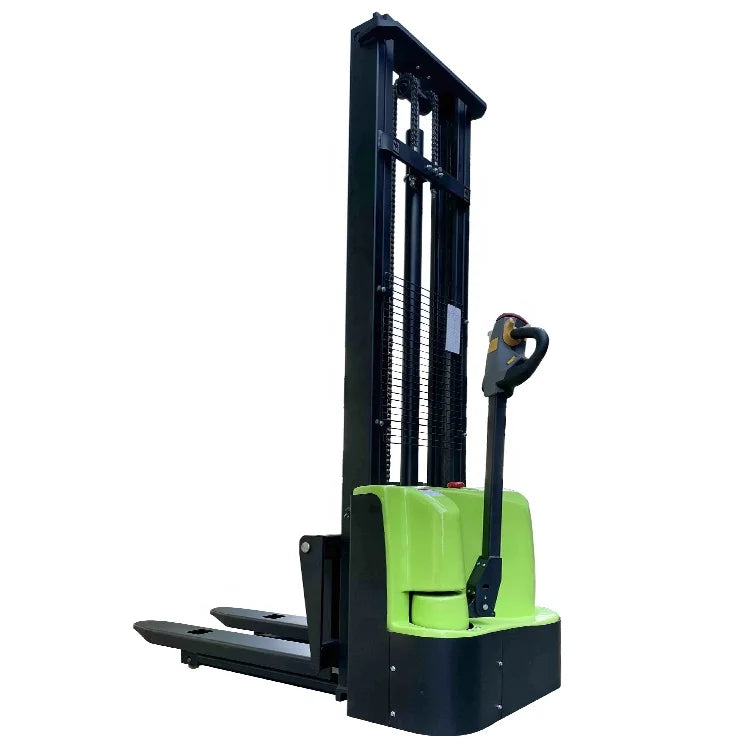

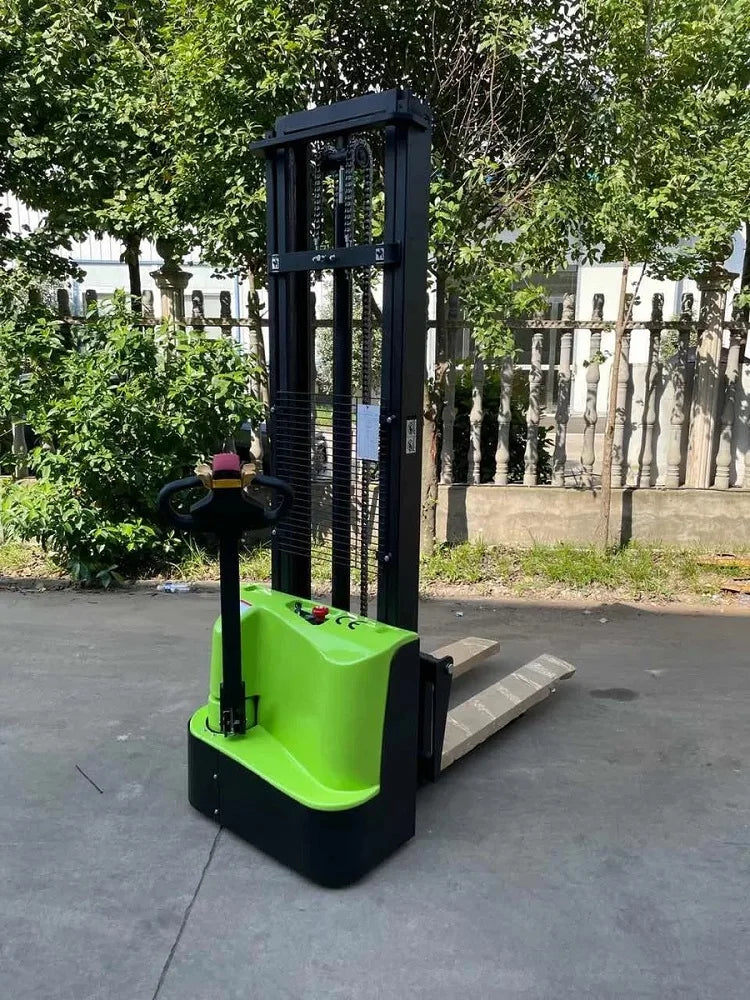

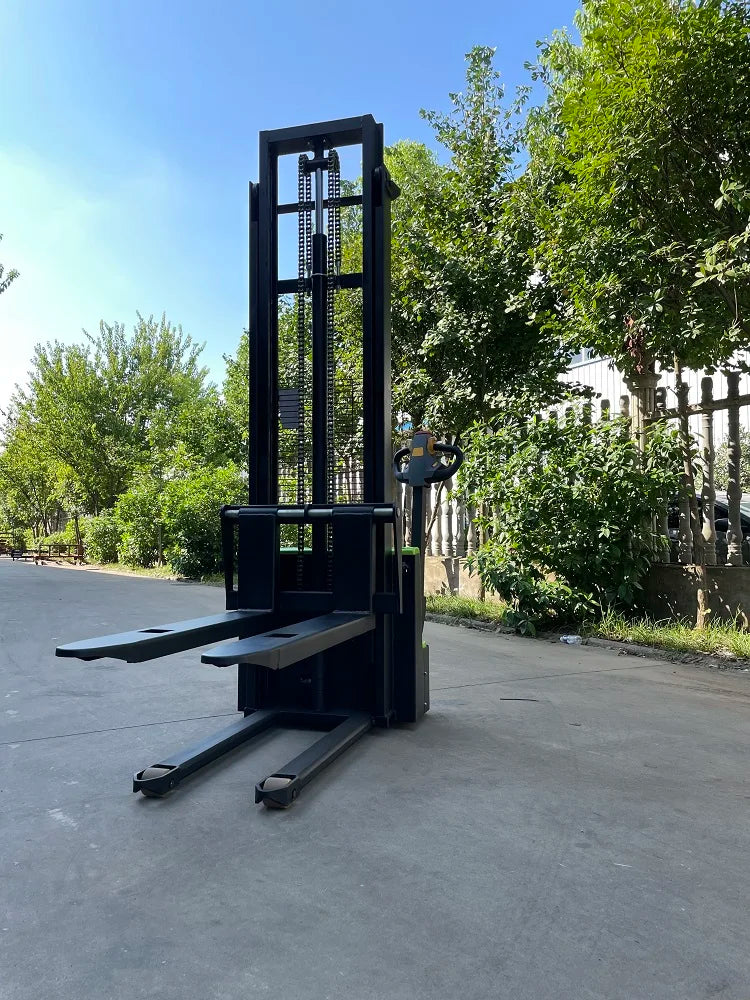

High Performance Electric Pallet Stacker Truck
1 .The multi-functional smart control handle include accelerator, reversing safety button, lowering release lever and power indicator, it is also with the function of switching the mode to drive when the handle in an upright status.
2 .The stacker with an integral design of key switch as well as the emergency power-off button which can protect the electrical system, save electric power and ensure the safety when not working.
3 .The stacker equipped with high performance Curtis controller and drive motor, the polyurethane wheel with high quality and durable in use. The scientific and reasonable layout ensure an excellent performance and convenience in maintenance.
4 .Wide view and high quality mast for high residual lift capacities and perfect view through the mast which ensure an excellent experiences for the operator and highly increase the working efficiency.
5 High quality steel with reinforced design of the chassis ensure the durability and safety during in the high lifting operation.
More Information welcome contact Sela :
Email : sales16@sinogoldmachine.com Wechat & Whatsapp: 008615166735625
Details Image
Parameter
|
Model
|
CDD15A
|
Overall length
|
1720mm
|
||
|
Drive way
|
Battery
|
Body width
|
800mm
|
||
|
Rated load
|
1500kg
|
Fork size
|
60 / 170 / 1100mm
|
||
|
Load center distance
|
500mm
|
Outer width of fork
|
690mm
|
||
|
Self weight (with battery)
|
500kg
|
Ground clearance of wheelbase center
|
40mm
|
||
|
Wheel
|
Polyurethane wheel
|
Turning radius
|
1600mm
|
||
|
Font wheel size
|
886mm
|
Driving speed (fully load / unload )
|
4 / 5.6km/h
|
||
|
Rear wheel size
|
525mm
|
Lifting speed ( Fully load / unload )
|
140m/s
|
||
|
Lifting height
|
3500mm
|
Lowering speed ( Fully load / unload )
|
101m/s
|
||
|
Lowered height
|
90mm
|
Grade ability ( Loading / Unloading )
|
3% / 7%
|
||
