Water borehold drilling well machine perforadoras de pozos de agua water drilling machine rig appareil de forage well drill
Product Description
The penumatic water well drilling rig adopt super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 400mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The well drilling rig machine can work on different formations, well drilling diameter up to 400mm. The drill machine adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore drill hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
|
Drilling Machine Parameters
|
||||||||||||
|
Model
|
HQZ-180L
|
HQZ-220L
|
HQZ-260L
|
HQZ-320L
|
HQZ-450L
|
HQZ-500L
|
||||||
|
Overall weight (T)
|
3.5
|
4.2
|
6.4
|
8
|
8.7
|
9.5
|
||||||
|
Dimension (mm )
|
3400*1500*2400
|
3800*1700*2350
|
4100*1900*2600
|
5500*1950*2780
|
5300*2050*2700
|
5350*2100*2700
|
||||||
|
Drilling diameter(mm )
|
130-245
|
130-294
|
140-300
|
140-325
|
130-400
|
140-400
|
||||||
|
Drilling depth(m)
|
150
|
180
|
260
|
300
|
400
|
500
|
||||||
|
One-time advance length of the drill(mm)
|
3000
|
3000
|
3000
|
3000/6000
|
3000/6000
|
3000/6000
|
||||||
|
Traveling speed(km/h )
|
2.5
|
2.5
|
2.5
|
2.5
|
6
|
6
|
||||||
|
Climbing ability(max )
|
25
|
30
|
30
|
30
|
25
|
25
|
||||||
|
Minimum Ground Clearance(mm)
|
250
|
250
|
250
|
230
|
300
|
350
|
||||||
|
Working Air Pressure(mpa )
|
1.45 - 2.5
|
1.7-2.5
|
1.7-3.0
|
1.7-3.3
|
1.7-3.5
|
1.7-3.5
|
||||||
|
Air consumption
|
15 - 27
|
15 - 27
|
17-35
|
23
|
17-35
|
17-35
|
||||||
|
Main machine power(kw)
|
42 /Yunnei
|
60/ Yunnei
|
85/Yuchai
|
92/Yuchai
|
100/6 cylinder
|
114/6 cylinder
|
||||||
Features:
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating

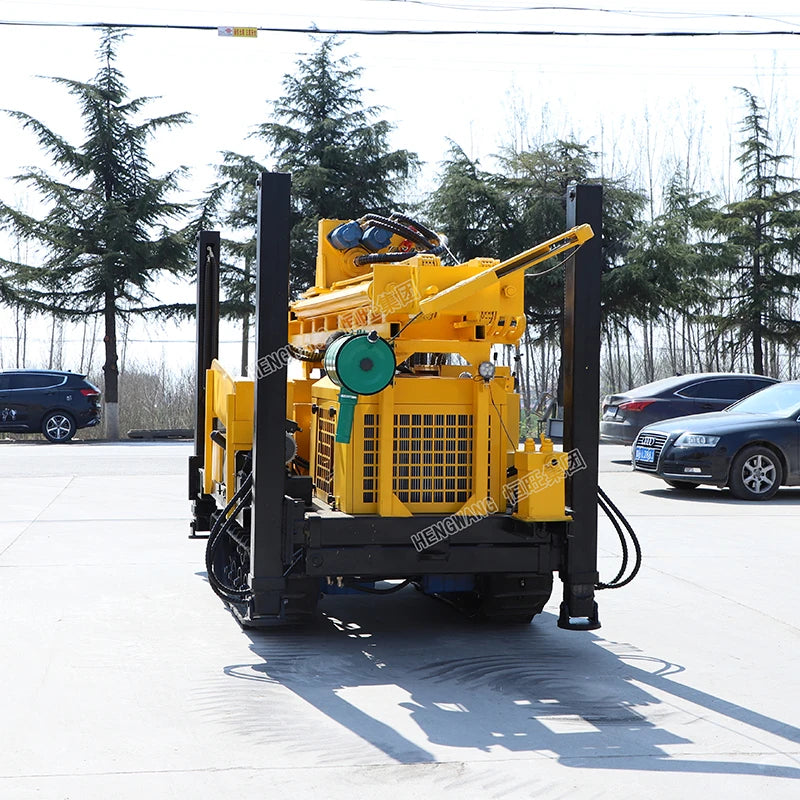

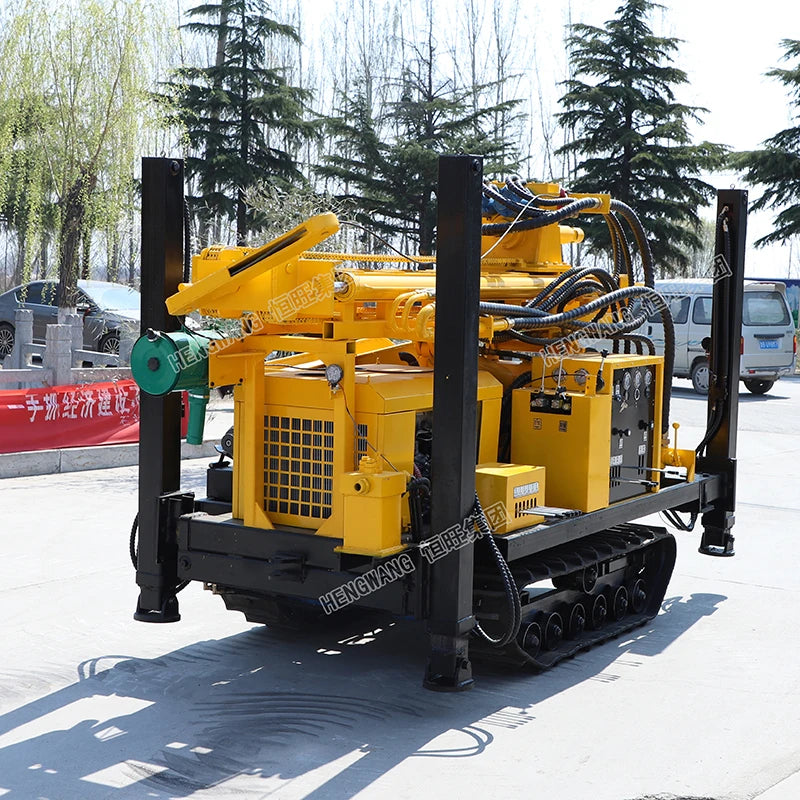

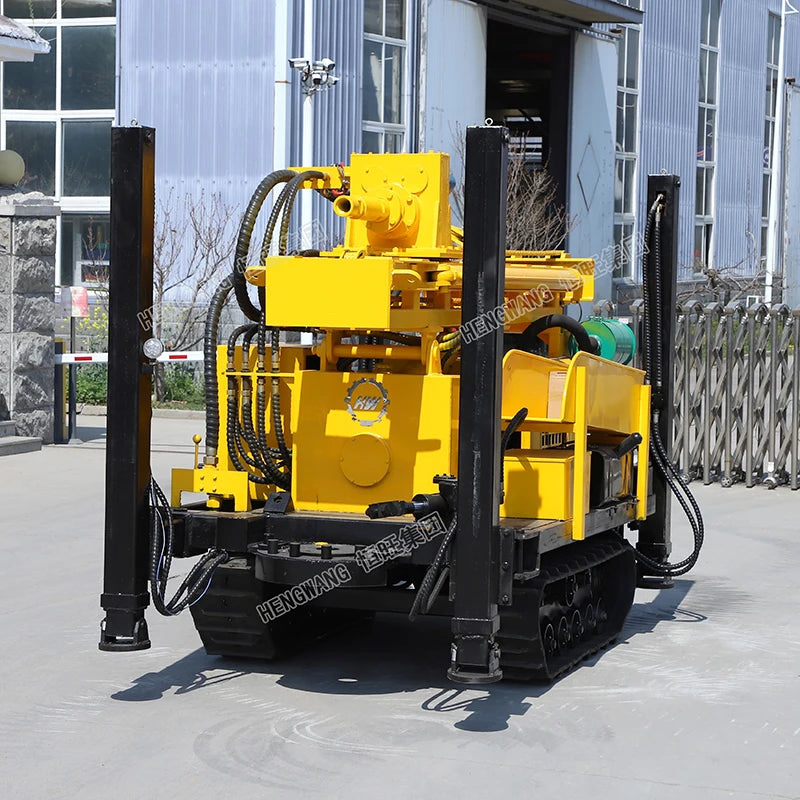

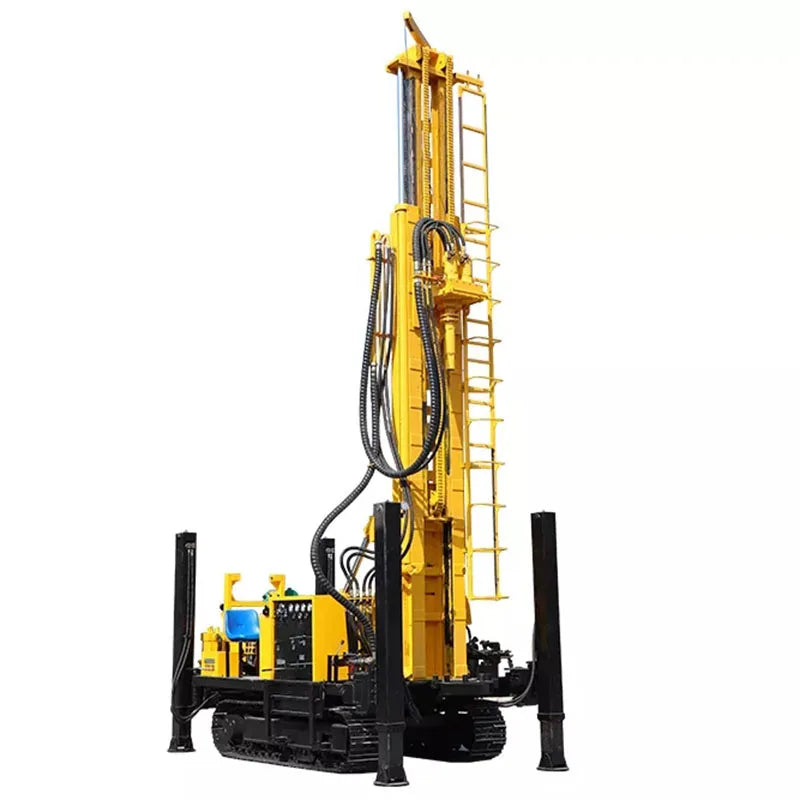

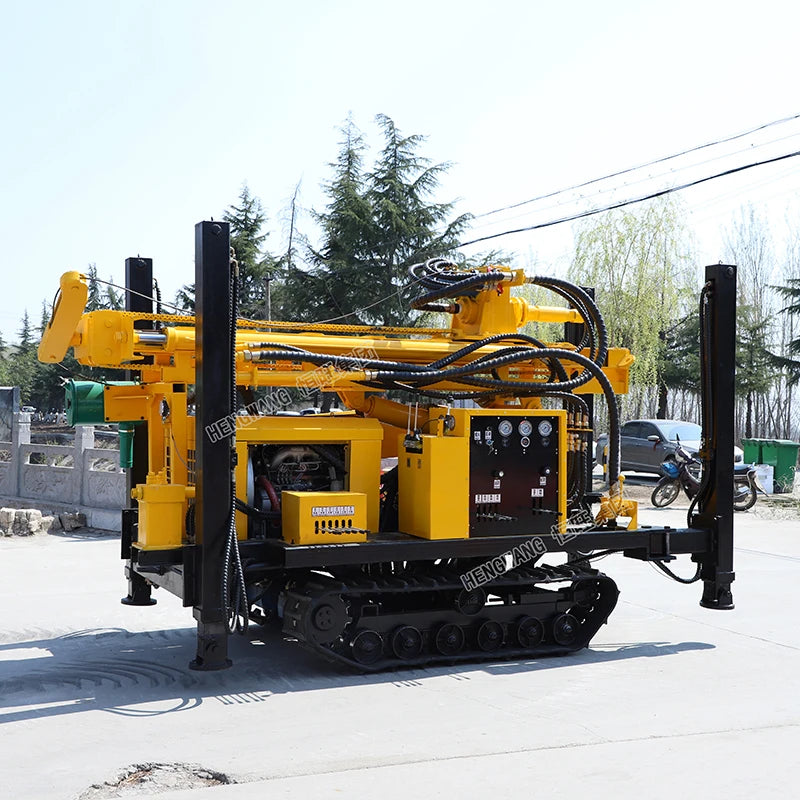

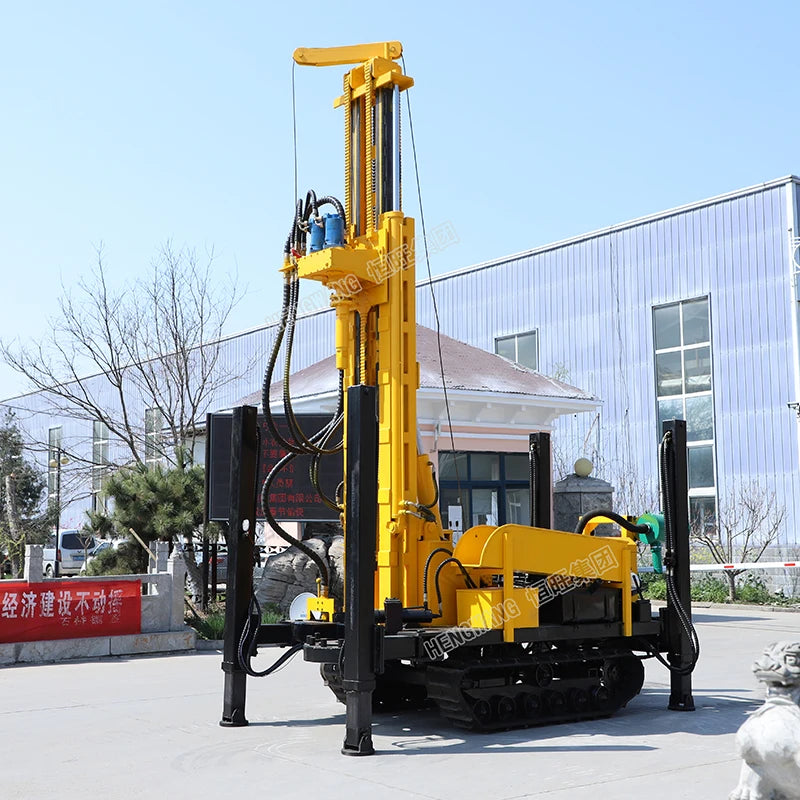

Detailed Images
Water borehold drilling well machine perforadoras de pozos de agua water drilling machine rig appareil de forage well drill
water borehold driller perforadoras de pozos de agua drilling rig machine appareil de forage well driller mine drilling rig
Product Usage
Water borehold drilling well machine perforadoras de pozos de agua water drilling machine rig appareil de forage well drill
